10 Ton Hydraulic Wire Terminal Battery Cable Crimper w/ 9 Dies

With the powerful 10-ton crimper, you could crimp wires and butt connectors easily. Much easier to use than a pair of hand crimpers. The crimper tool crimps AWG 12 to 2/0 size copper and aluminum wires, lugs and compressible battery terminal ends
Great for battery and welding cables, power wires and electrical cables etc.

Features:

• Hydraulic wire crimper features 9 sets of dies for providing large crimping range from 4 to 70 square millimeters
• Hydraulic Design

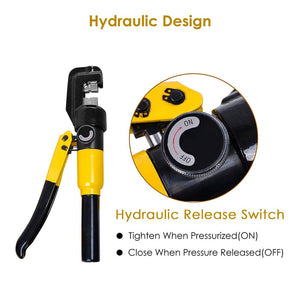

  • Providing 10-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
  • Hydraulic crimper is much easier than using a hand crimping

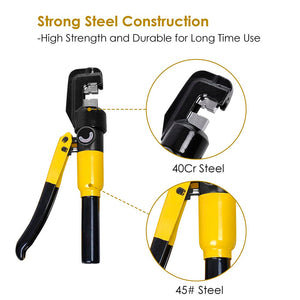

• Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
• Convenient & Portable
  • C-style head for easy changing the dies and fixing the wire in position

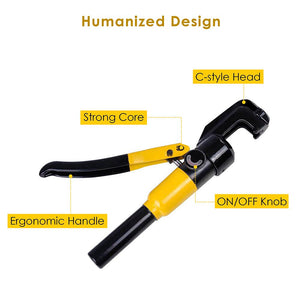

  • Long ergonomic handle for convenient and labor-saving operation

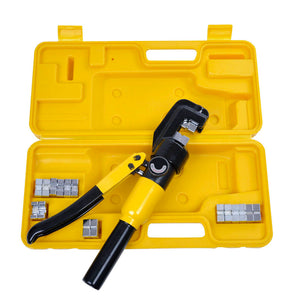

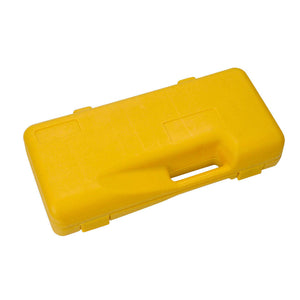

  • Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place
• Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire

Specification:

• Max pressure: 10 Ton
• Stroke Capacity: 3/8" (10mm)

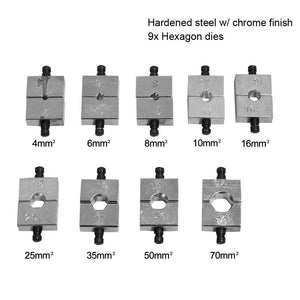

• 9x dies: 4, 6, 8, 10, 16, 25, 35, 50, 70mm2

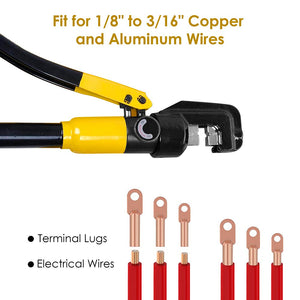

• Fits For: 1/8" to 3/16" (12 AWG to 2/0 AWG) copper and aluminum wires
• Case dimension: 13 3/4"L x 6 1/4"D x 3 1/4"H
• Length: 12 3/16" (31 cm)
• Material: 45# Steel, 40Cr Steel
• Net Weight: 5.2 Lbs (2.37 kg)

Reference:

Package Includes:

• 1x Crimper
• 9x dies (One Set of Dies has installed on the crimper.)
• 1x Set of Seal Rings
• 1x Plastic Carrying Case

Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
