16 Ton 11 Dies Hydraulic Wire Terminal Battery Cable Crimper

This is a brand new 16-ton hydraulic crimper which has 11 pairs of dies! With it, you could crimp wires and butt connectors on a wide range of wire sizes. Much easier to use than a pair of hand crimpers. The crimper tool crimps AWG 6 to 600 MCM copper and aluminum wires using 11 pairs of chrome-plated steel crimping dies.
Great for battery and welding cables, power wires, and electrical cables.

Features:

• Hydraulic wire crimper features 11 sets of dies for providing large crimping range from 16 to 300 square millimeters
• Hydraulic Design

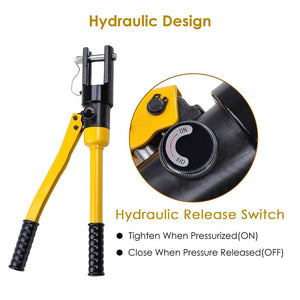

  • Providing 16-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
  • Hydraulic crimper is much easier than using a hand crimping

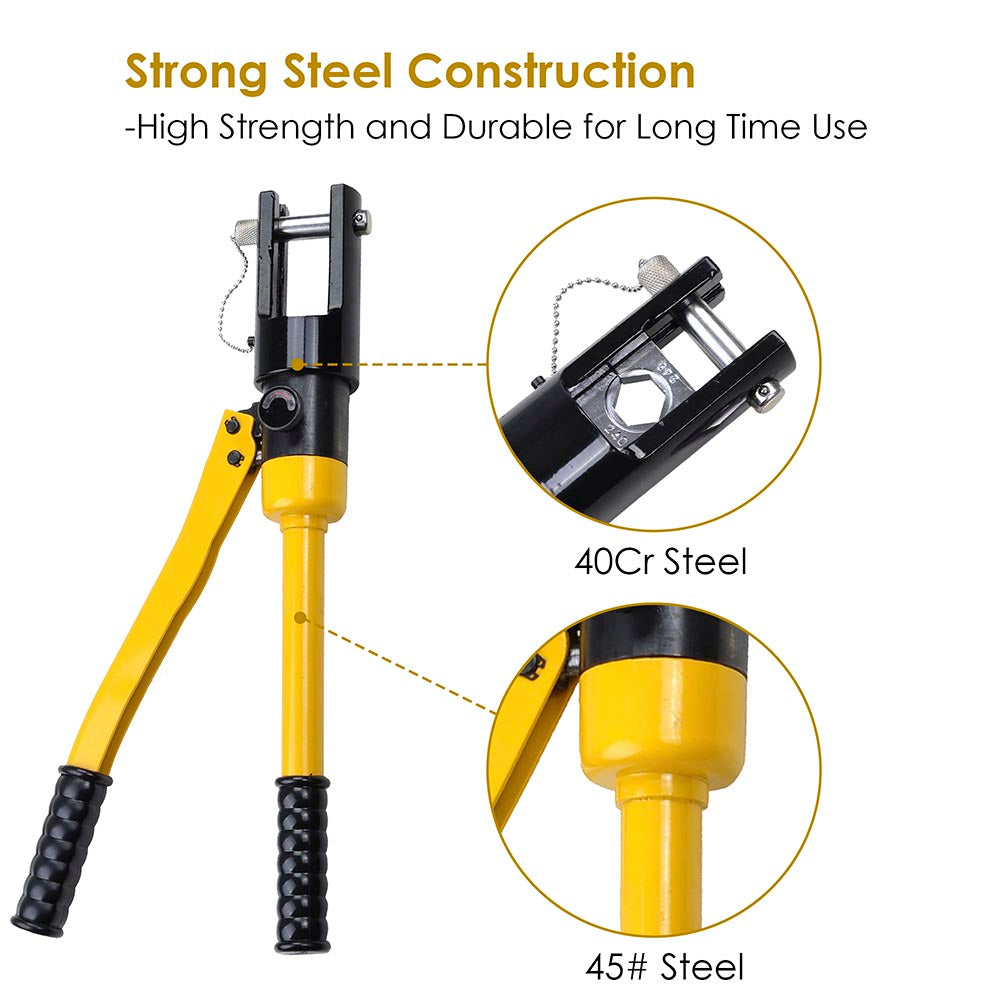

• Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
• Convenient & Portable

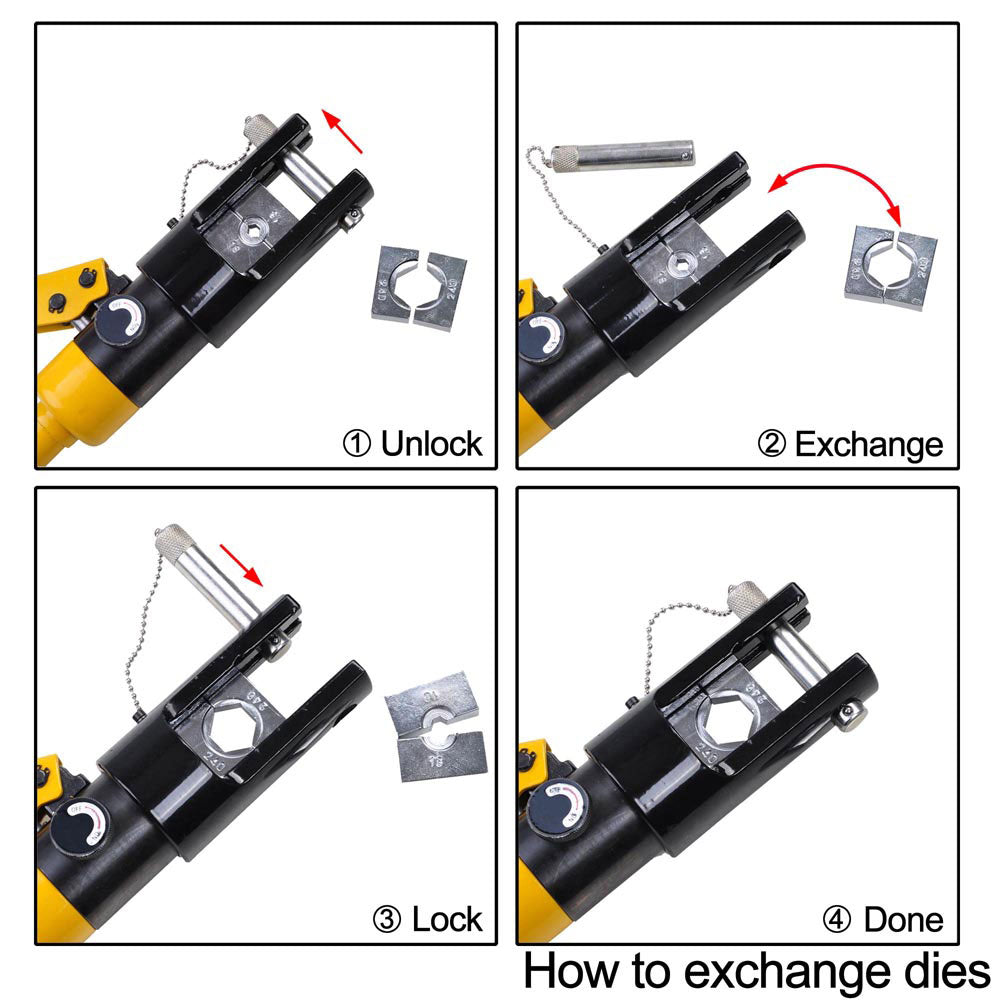

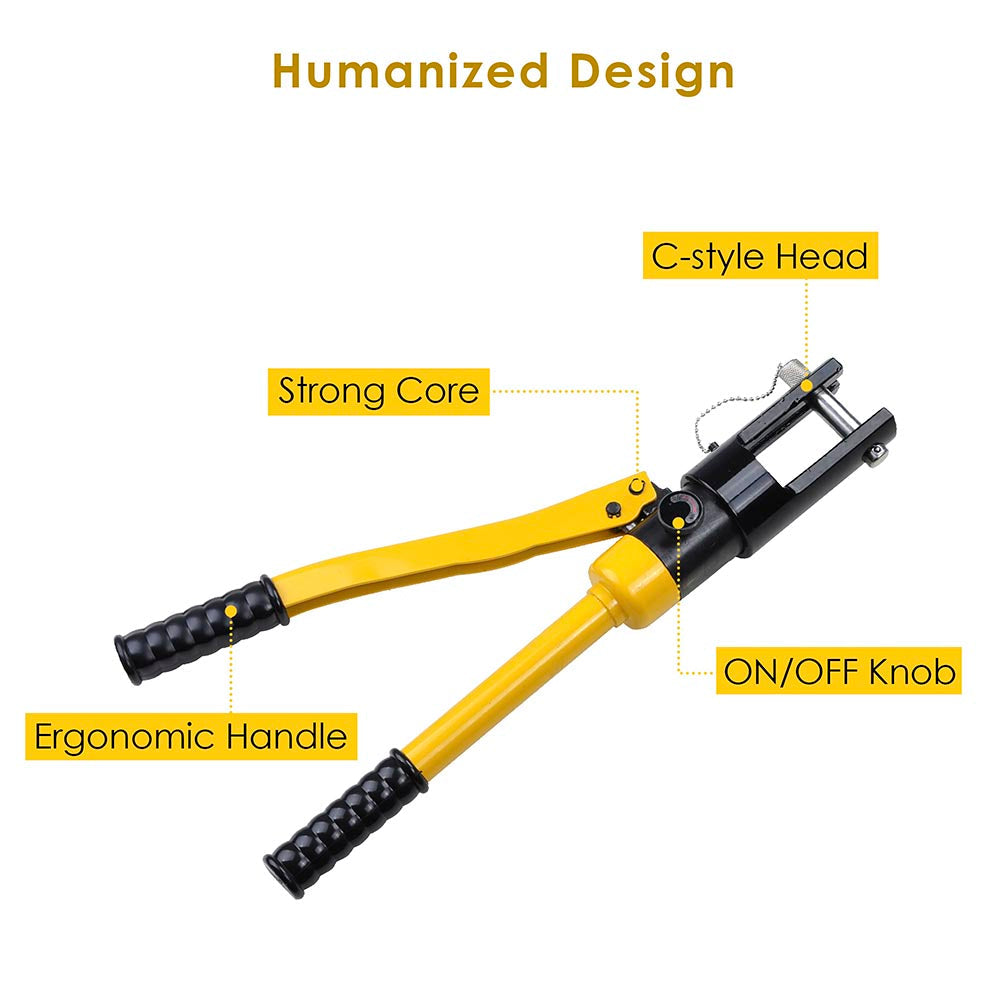

  • C-style head for easy changing the dies and fixing the wire in position
  • Long ergonomic handle for convenient and labor-saving operation

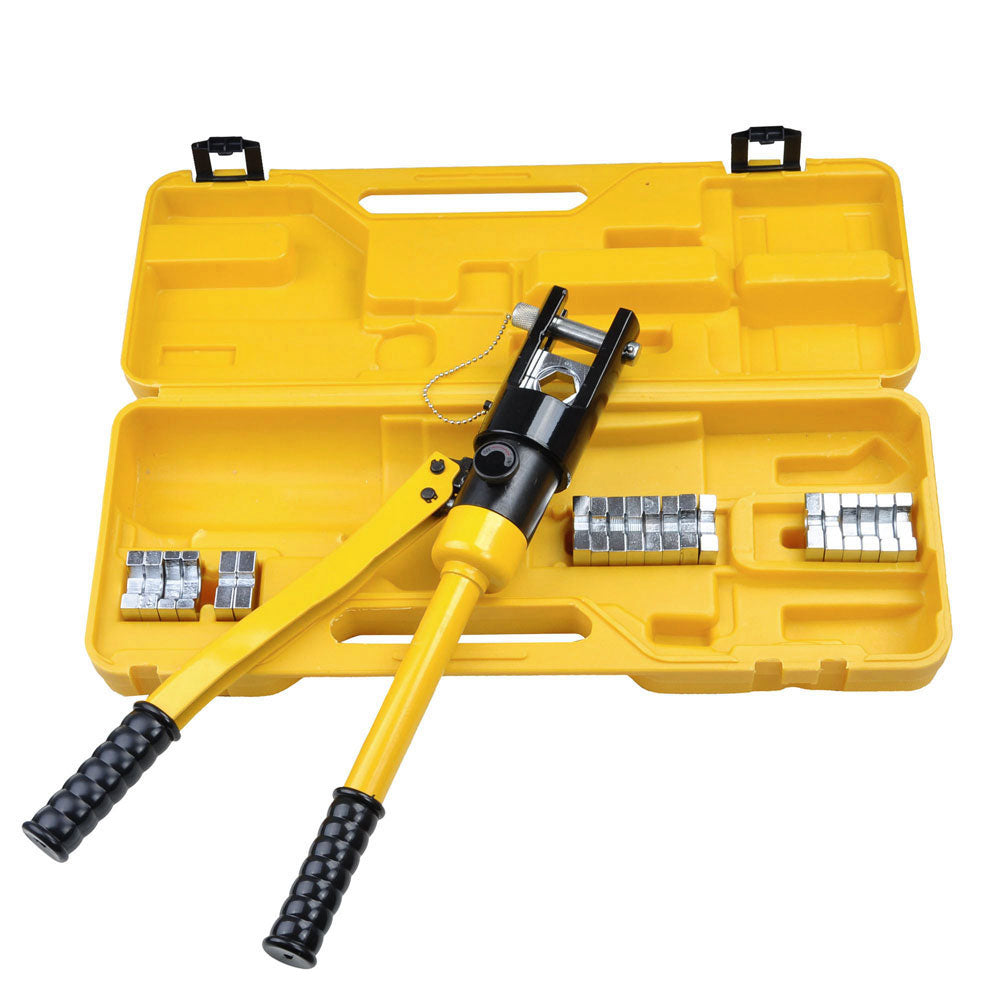

  • Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place
• Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire

Specification:

• Length: 19 11/16" (50 cm)
• Stroke capacity: 22mm

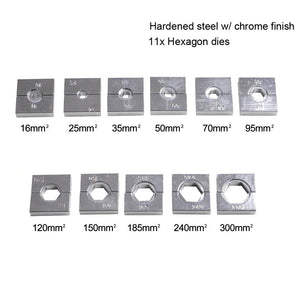

• 11x dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2

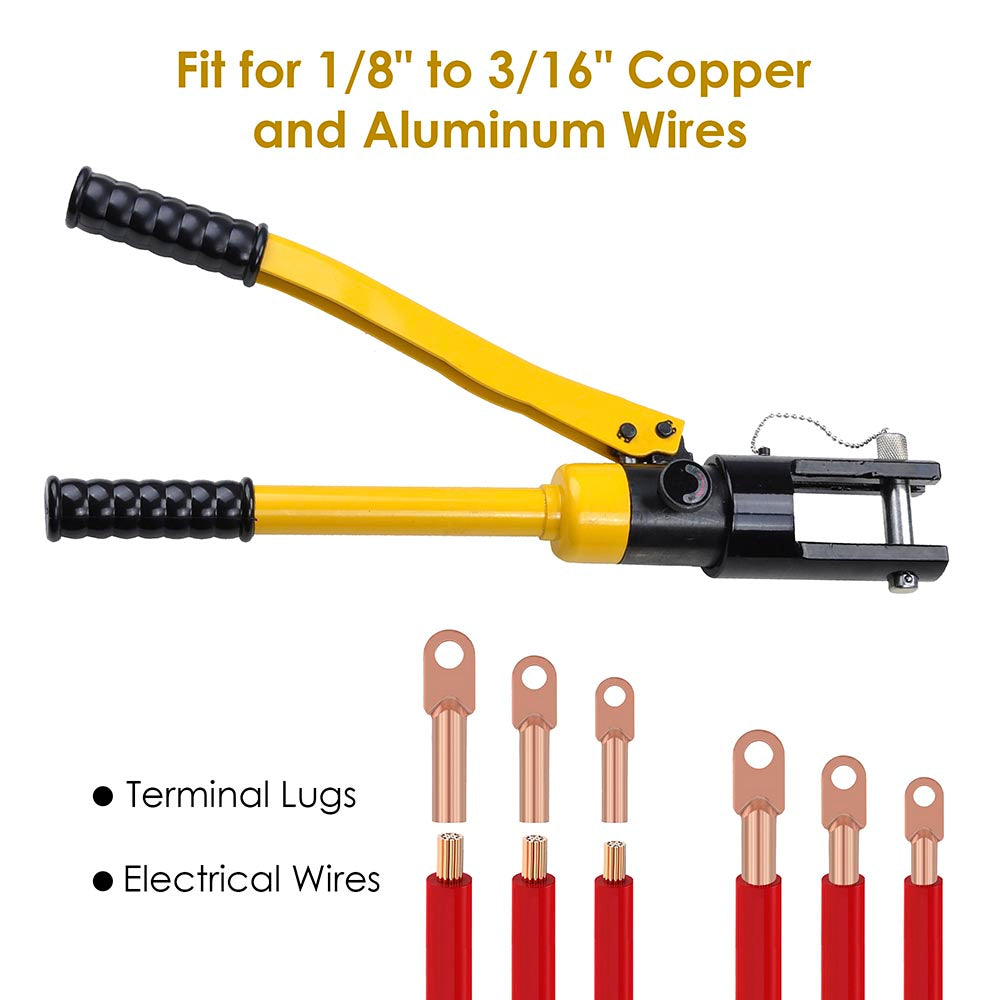

• Fits For: 6 AWG to 600 MCM copper and aluminum wires
• Maximum Crimping Power: 16 Ton
• Material: 45# Steel, 40Cr Steel
• Net Weight: 13.2 Lbs (6 kg)

Reference:

AWG	MM2
6	16
4	25
2	35
1/0	50
2/0	70
3/0	95
4/0 - 250 MCM	120
300 MCM	150
350 MCM	185
500 MCM	240
600 MCM	300

Package Content:

• 1x 16-Ton Hydraulic Wire Crimper
• 11x dies (One Set of Dies has installed on the crimper.)
• 1 Set of Seal Rings
• 1x Plastic Carrying Case
• 1x Manual

Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
