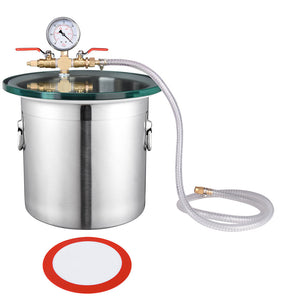

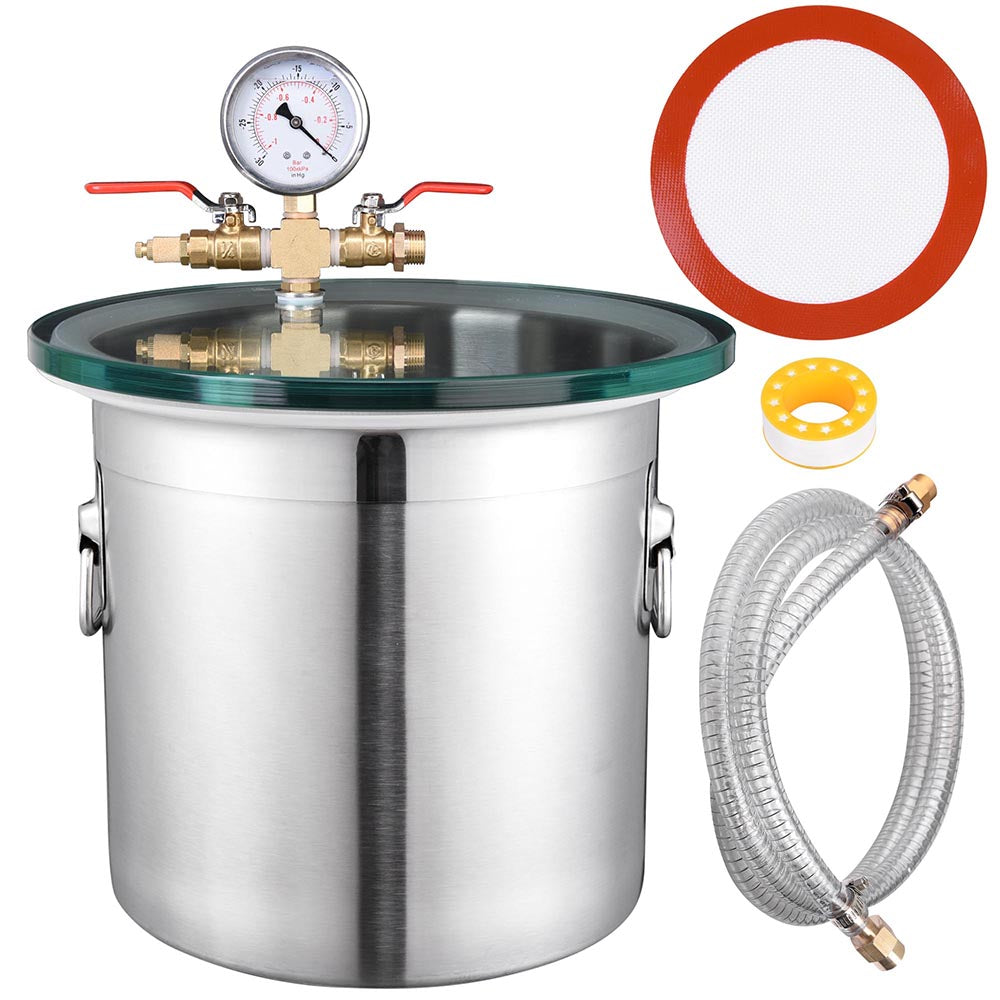

3 Gallon Degassing Stainless Steel Vacuum Chamber

3 Gallon Degassing Stainless Steel Vacuum Chamber with the shut off valve turned and the vacuum pump off the chamber could still hold a high vacuum for several hours which lose no more than 2.5 inHg/24hrs. It features strong and durable stainless steel container with chemical-resistant silicone gasket. It is suitable for degassing urethanes, silicone, epoxies and more.

Features:

• Multi-application - suitable for degassing urethanes, silicone, epoxies and more

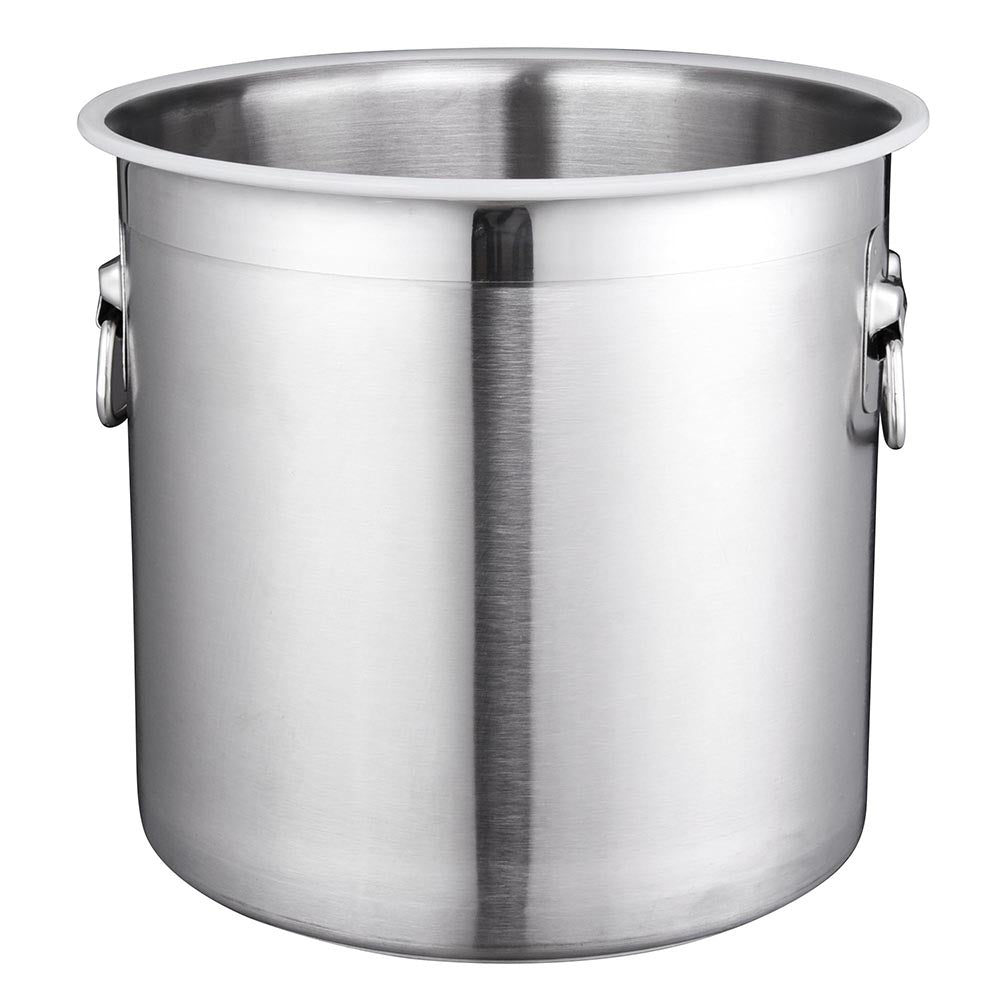

• Strong and durable stainless steel container with chemical-resistant silicone gasket
• Tempered glass lid, high-strength and shatter-resistant, provide safety

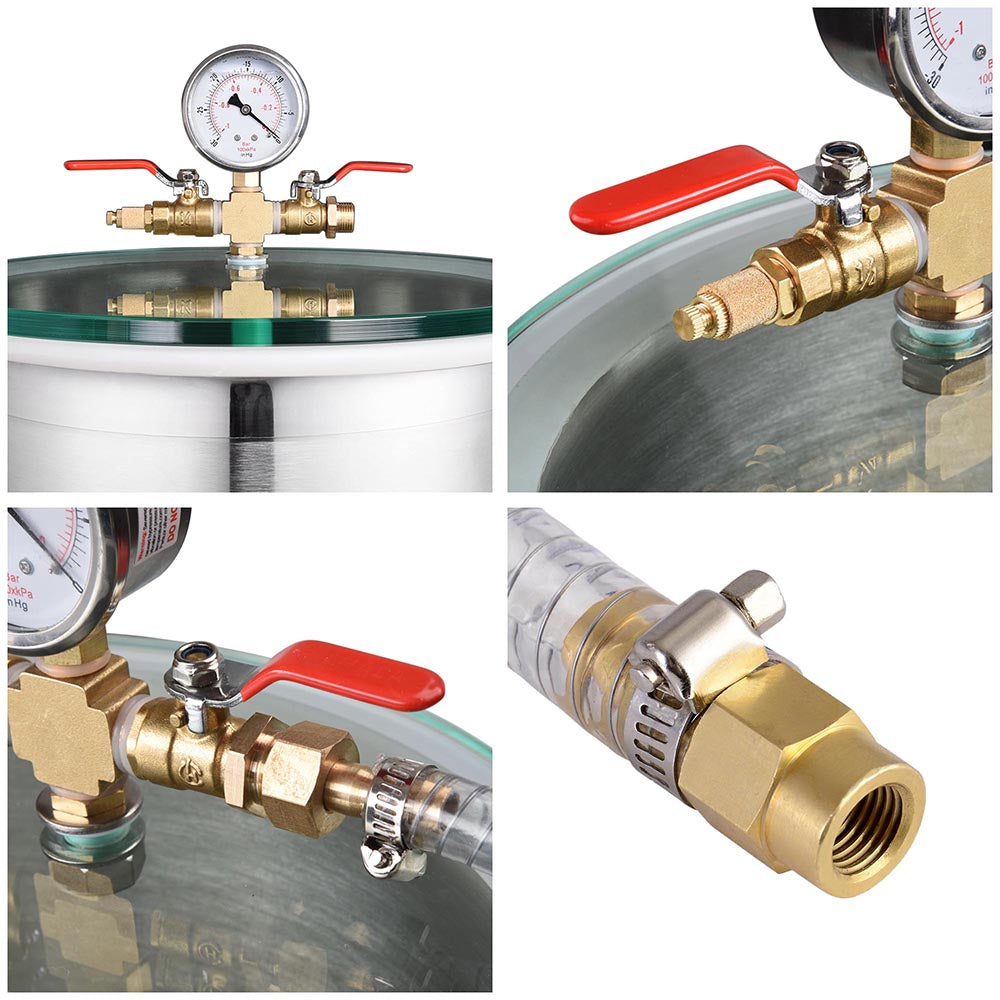

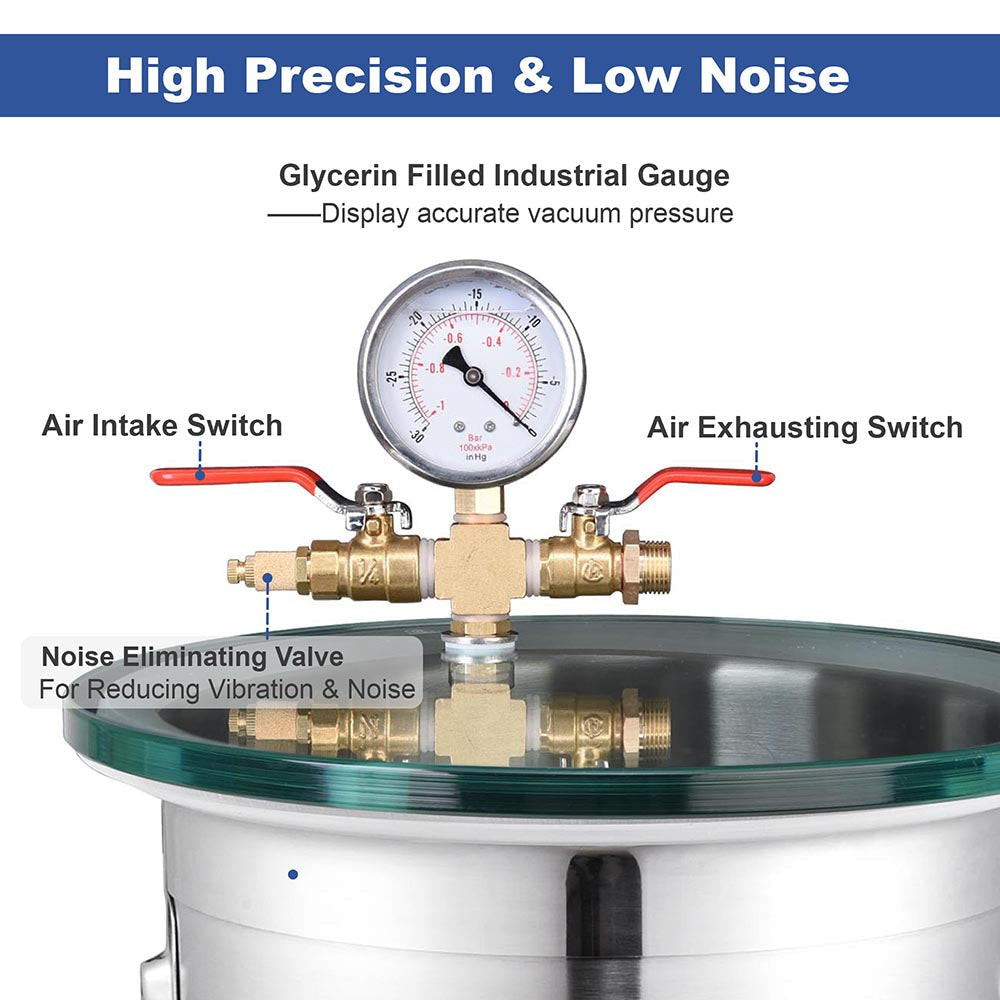

• Glycerin filled industrial gauge resists vibrations and keeps the gauge accurate
• With the shut off valve turned and the vacuum pump off the chamber could still hold a high vacuum for several hours
• Every chamber is tested before shipping and lose no more than 2.5 inHg/24hrs

Specification:

• 2 Gallon:
  • Chamber Dimension(Dia.xH): 8 11/16" x 7 7/8" (22 x 20 cm)
  • Thickness of Lid: 1/2" (12 mm)
  • Diameter of Lid: 9 7/16" (24 cm)
  • Length of Steel Wire Hose: 66 15/16" (1.7 m)
  • Maximum Rated Vacuum: 29 inHg at sea level
  • Leakage within 24hrs: Less than 2.5 inHg
  • Maximum Operation Temperature: 160 degrees Fahrenheit (71 degrees Celsius)
  • Material: Stainless Steel, Tempered Glass
  • Net Weight: 8.8 Lbs (4 kg)

• 3 Gallon:
  • Chamber Dimension(Dia.xH): 10 13/16" x 9 13/16" (27.5 x 25 cm)
  • Thickness of Lid: 1/2" (12 mm)
  • Diameter of Lid: 11 7/16" (29 cm)
  • Length of Steel Wire Hose: 66 15/16" (1.7 m)
  • Maximum Rated Vacuum: 29 inHg at sea level
  • Leakage within 24hrs: Less than 2.5 inHg
  • Maximum Operation Temperature: 160 degrees Fahrenheit (71 degrees Celsius)
  • Material: Stainless Steel, Tempered Glass
  • Net Weight: 12.1 Lbs (5.5 kg)

• 5 Gallon:
  • Chamber Dimension(Dia.xH): 12" x 10 13/16" (30.5 x 27.5 cm)
  • Thickness of Lid: 1/2" (12 mm)
  • Diameter of Lid: 12 5/8" (32 cm)
  • Length of Steel Wire Hose: 66 15/16" (1.7 m)
  • Maximum Rated Vacuum: 29 inHg at sea level
  • Leakage within 24hrs: Less than 2.5 inHg
  • Maximum Operation Temperature: 160 degrees Fahrenheit (71 degrees Celsius)
  • Material: Stainless Steel, Tempered Glass
  • Net Weight: 13.9 Lbs (6.3 kg)

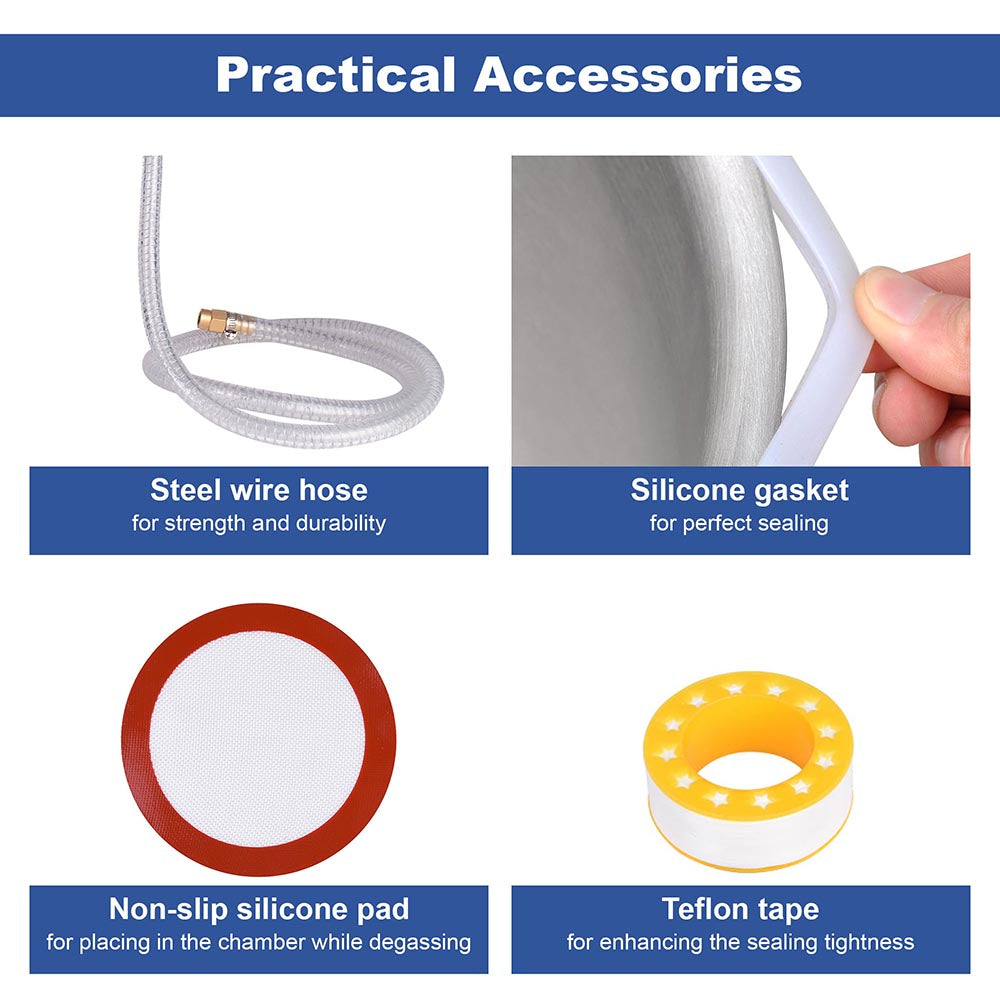

Package Includes:

• 1x Vacuum Chamber with Lid & Gasket
• 1x Gauge with Fittings
• 1x Hose
• 1x Silicone Pad
• 1x Teflon Tape
• 1x Manual

Compatibility Explanation:

• Chambers are not compatible with stabilization resin (i.e. Gator Venom, Minwax etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water.
