36v 750W 24in Front Wheel Electric Bicycle E-Bike Motor Kit

36V 750W 24 inch Front Frame 1 15/16" to 2 1/2" Width Rim Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel, a LED light and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.

Features:

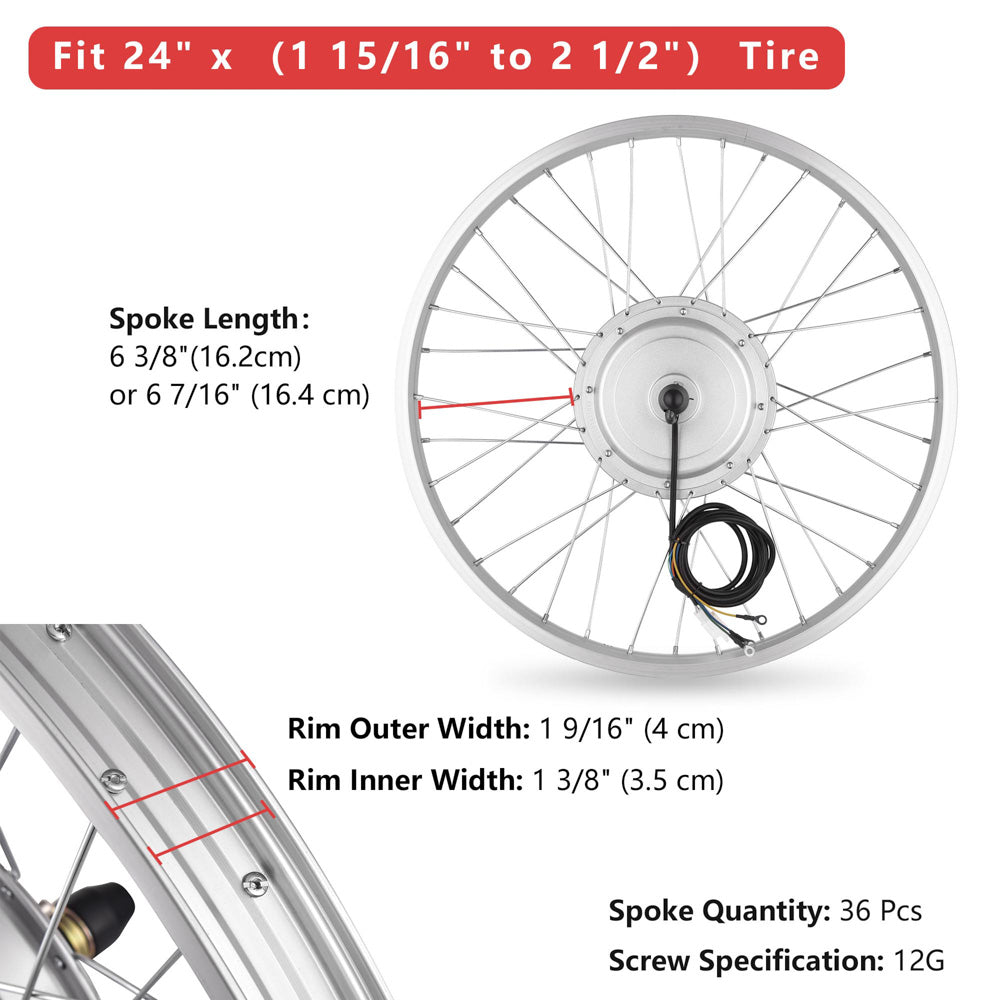

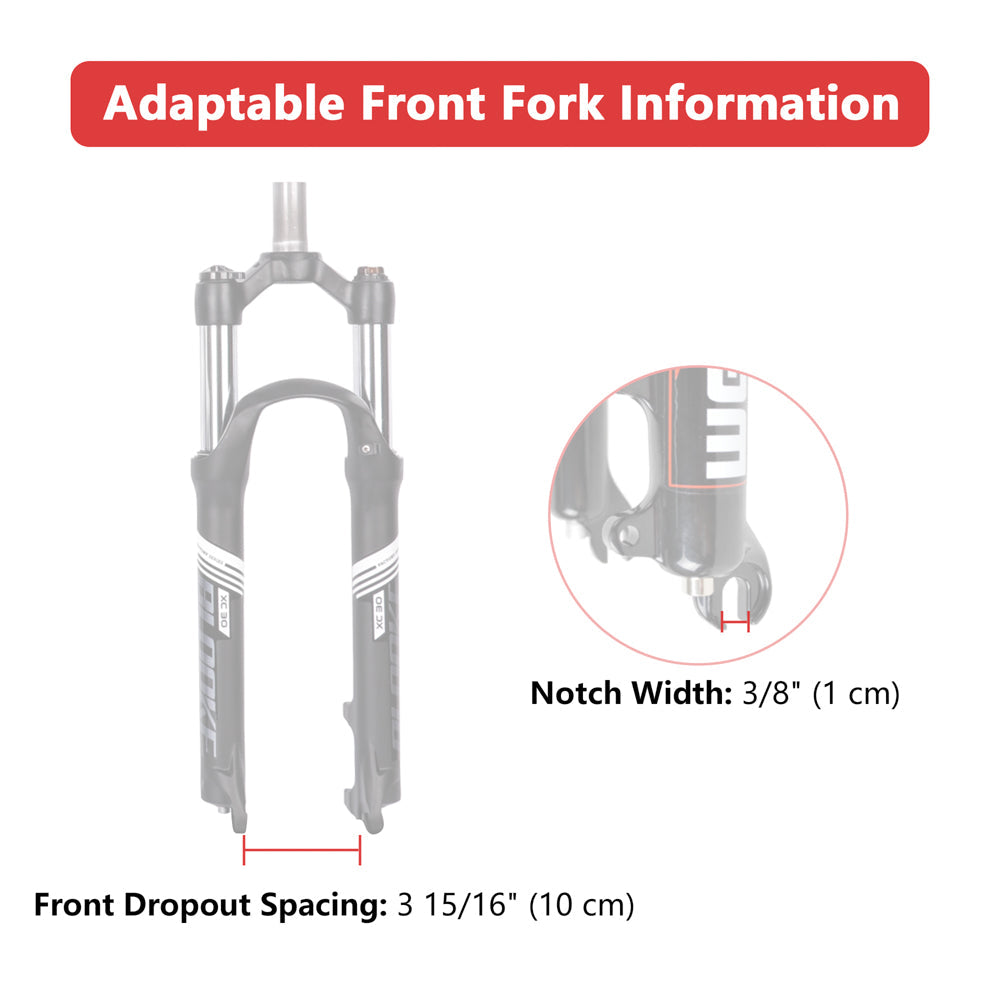

• Suitable Tire Size - Fits any 24" bicycle frame with 3 15/16" front dropout spacing
• E-bike Conversion Kit - easy to convert your bike to an electric bikes; You can install the bike by yourself or find a bicycle store for assistance

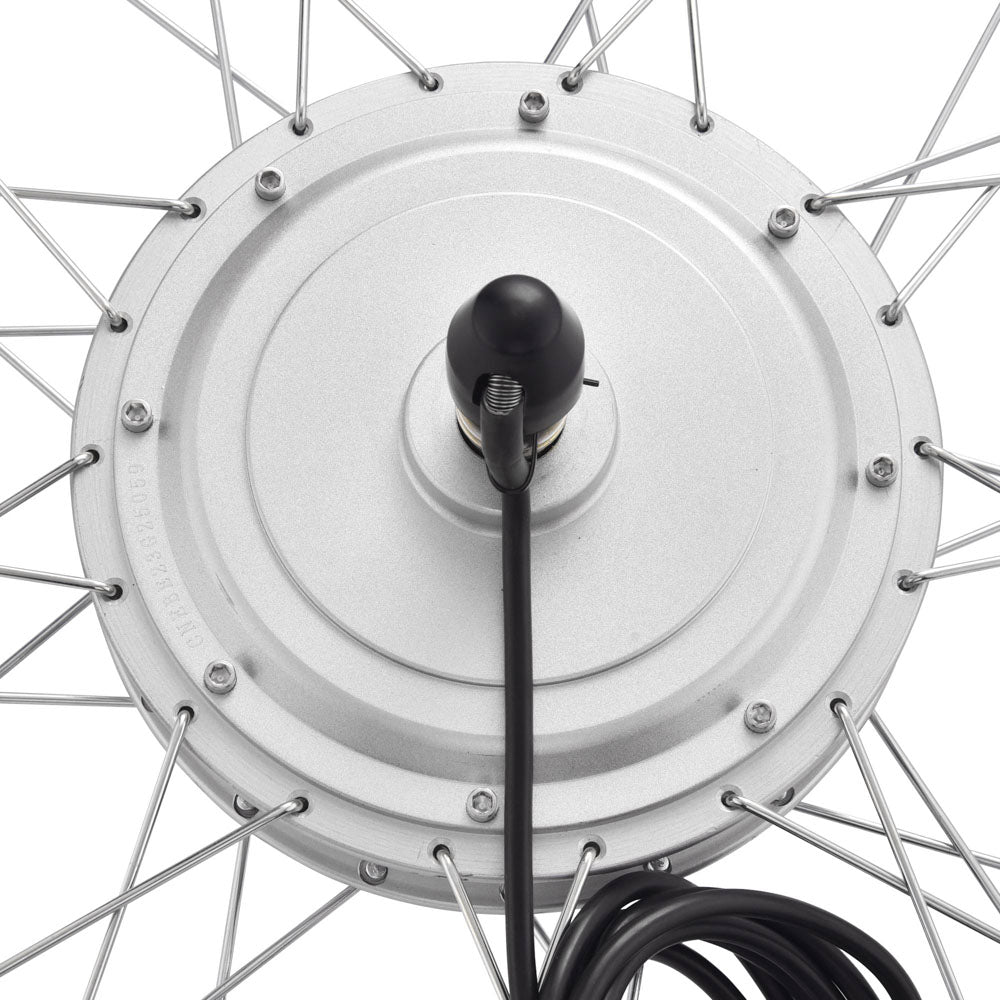

• 750W powerful brushless gearless hub motor with 45 km/h top speed
• The brake shuts off motor automatically - saves energy and improves safety

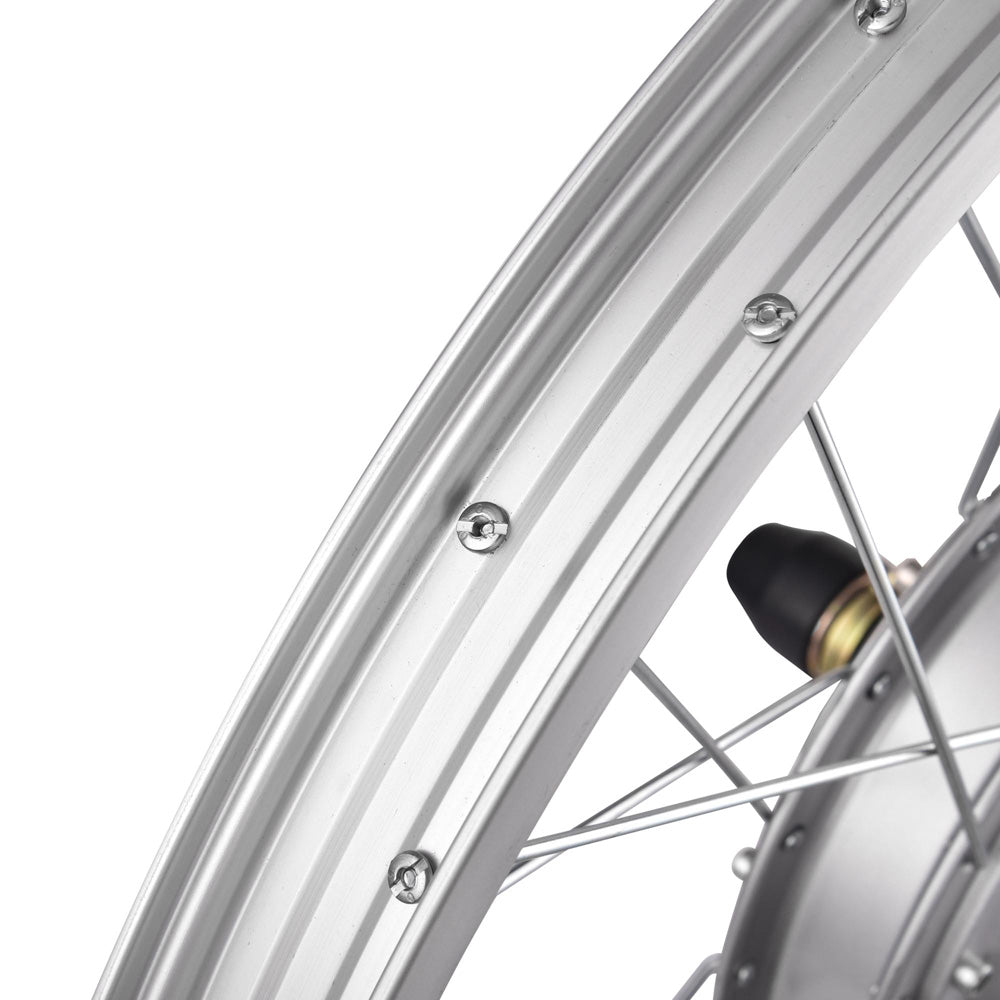

• Aluminum rim for strong support & rust resistance; Can support a heavy weight up to 220 Lbs
• Thumb throttle with 3 LED battery indicator lights for displaying battery status, perfect to avoid stopping working caused by low battery suddenly
• Compatible for universal disc brake & V brake, you can choose the brake you need to use with the wheel, perfect for bicycle assembly and modification
• CE certification for quality and safety assurance; battery-powered design for environmentally friendly

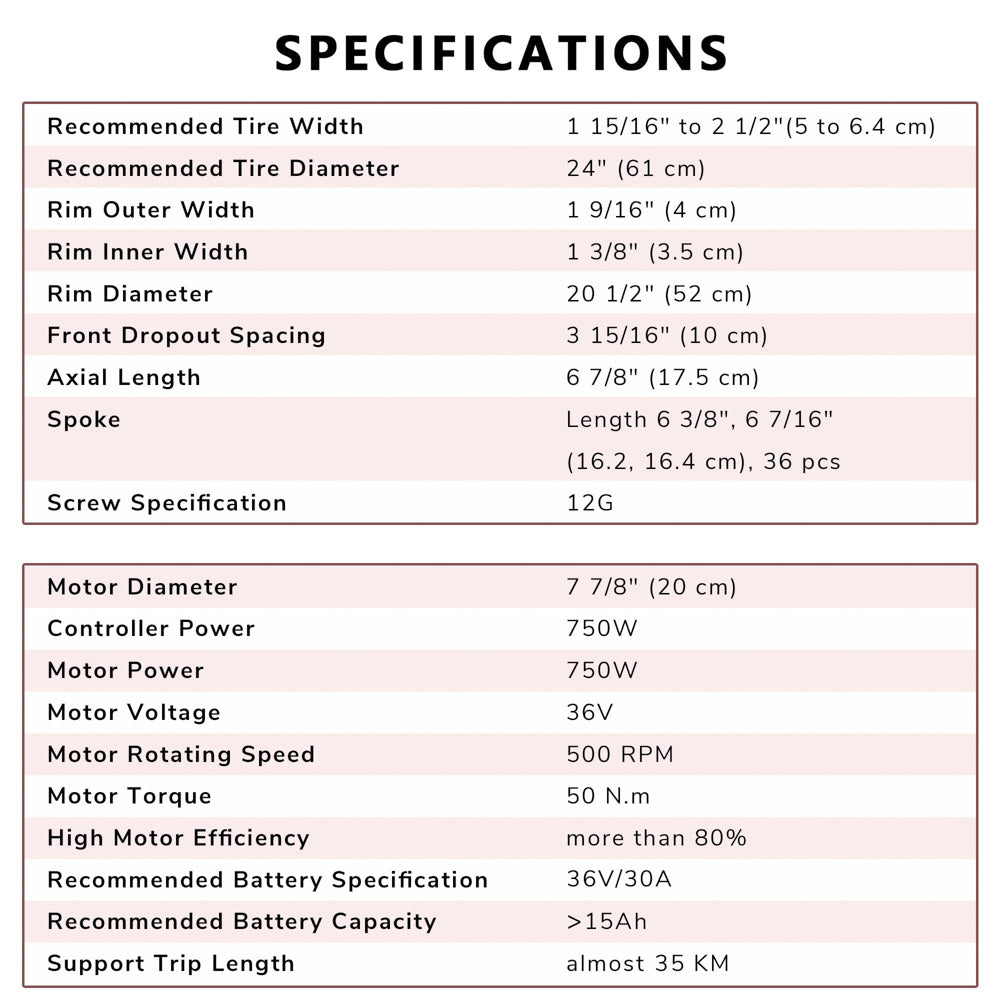

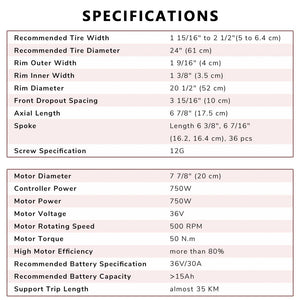

Specifications:

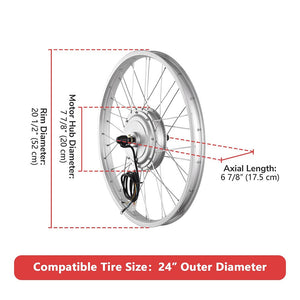

• Overall Dimension(Dia.xW): 20 1/2" x 1 9/16"
• Compatible Tire Size: 24"
• Controller Dimension(LxWxH): 5 14/16" x 3 2/16" x 1 9/16"
• Controller Power: 750W
• Motor Voltage: 36V
• Recommended Battery Specification: 36V/30A
• Recommended Battery Capacity: Over 15 Ah
• Suitable Brake Type: Disc Brake / V-Brake
• Climbing Angle: 12 Degrees
• Net Weight: 15.21 Lbs

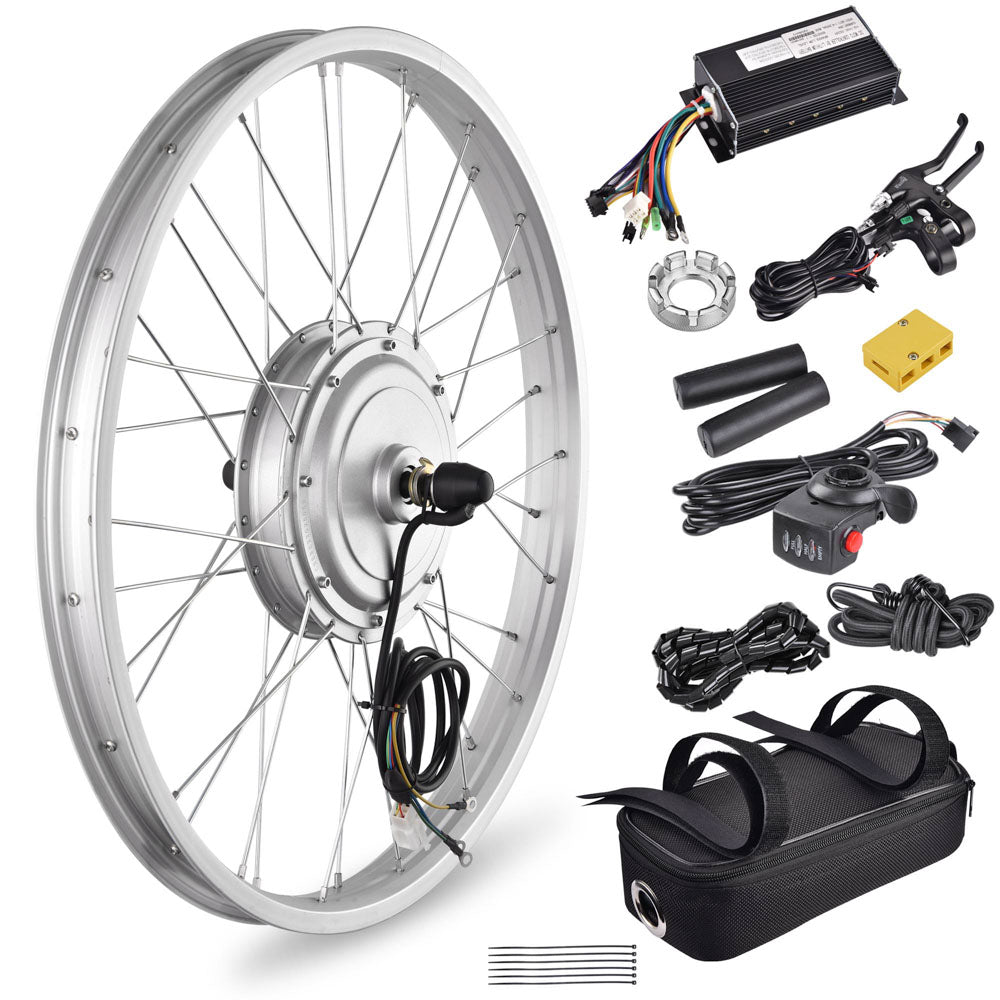

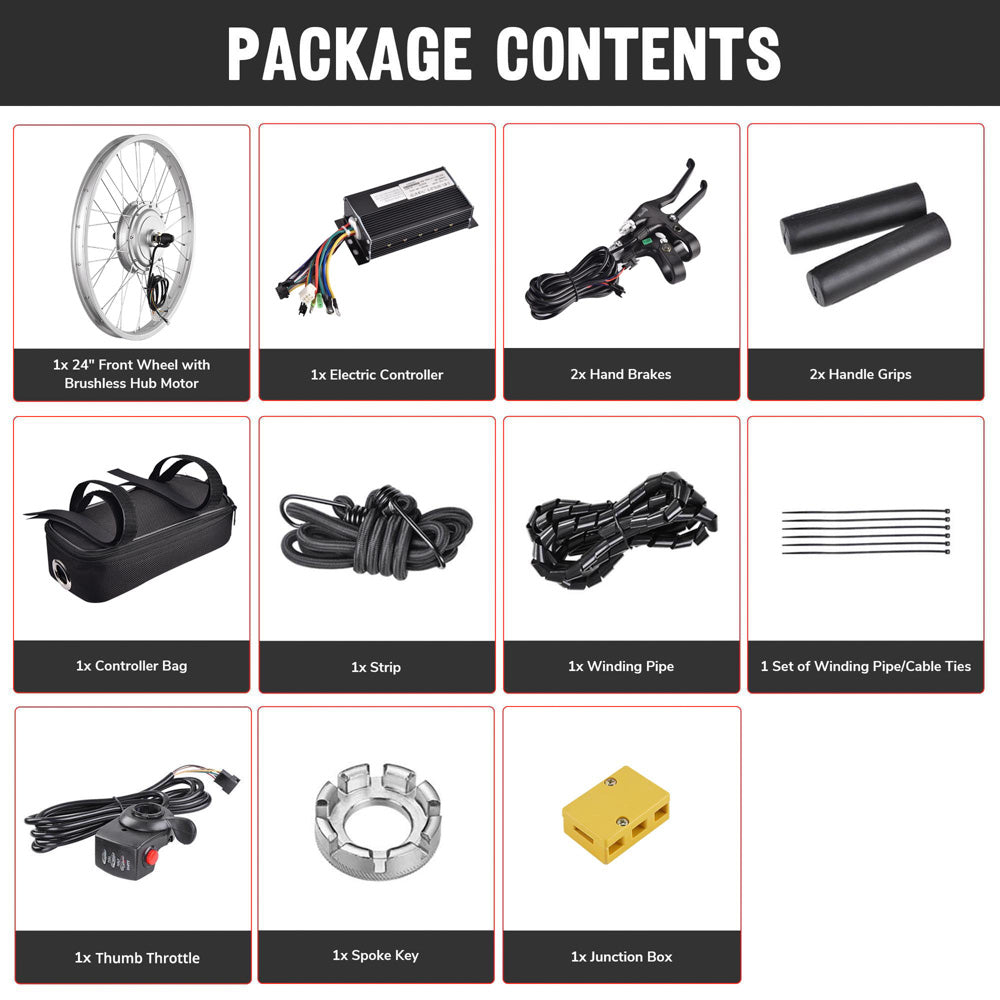

Package Contents:

• 1x 24" Front Wheel with Brushless Hub Motor (Tire is not included)
• 1x Controller
• 2x Hand Brakes
• 2x Handle Grips
• 1x Thumb Throttle

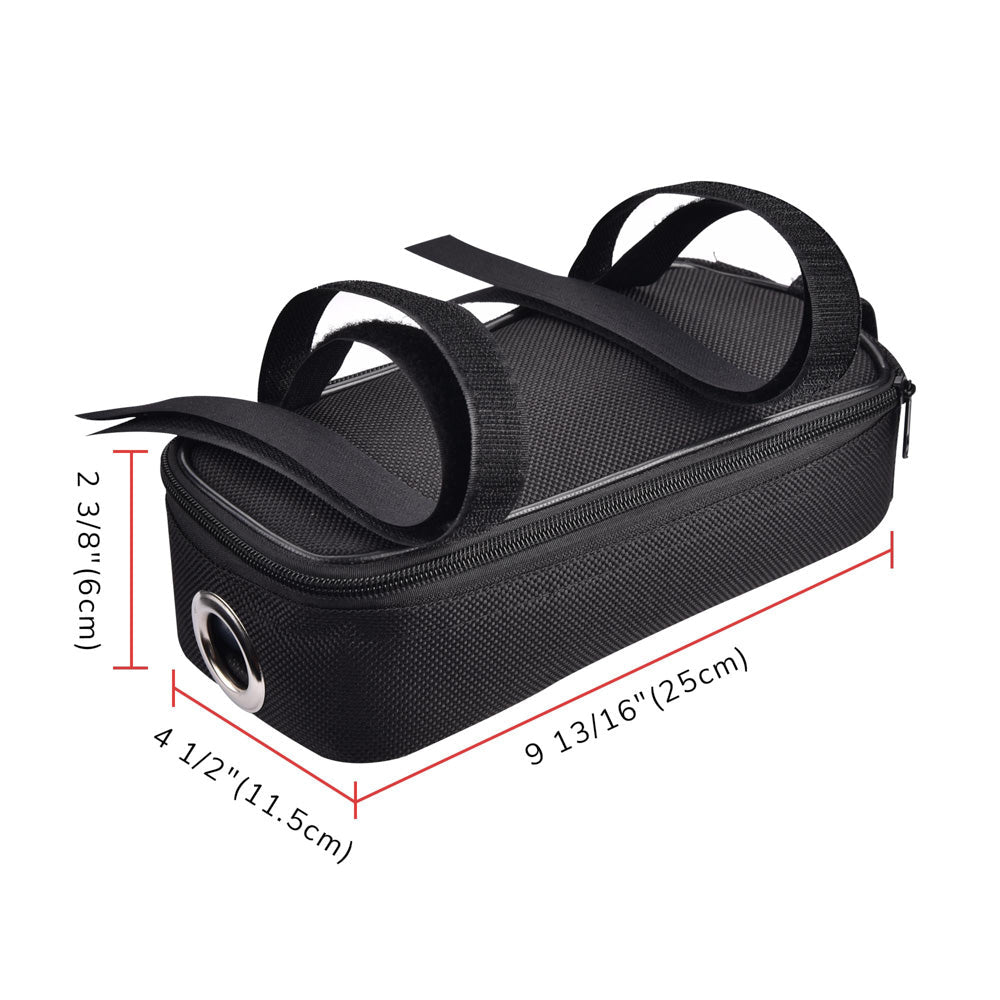

• 1x Controller Bag
• 1x Strip
• 1x Winding Pipe
• 1 Set of Cable Ties
• 1x Spoke Key
• 1x Junction Box

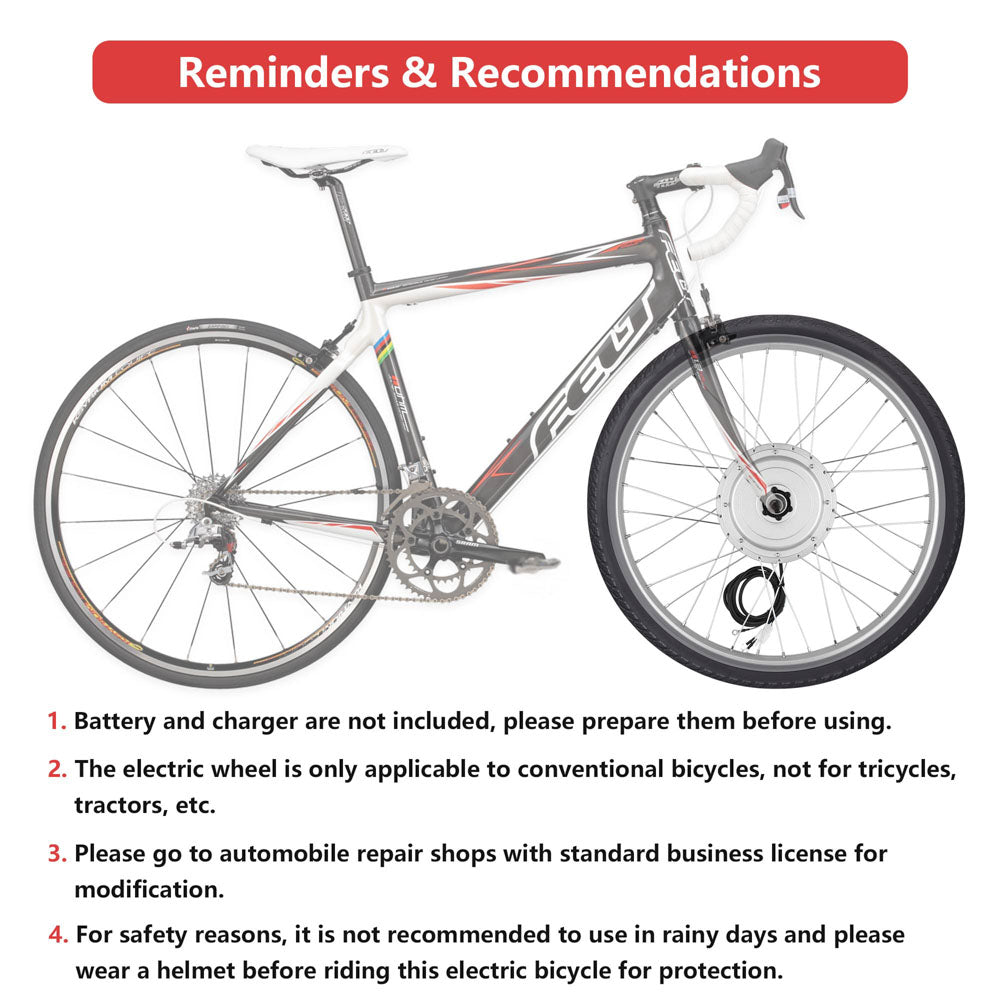

Please Notice

• Battery and charger are not included, please prepare them before using.
• The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc
• Please go to automobile repair shops with standard business license for modification.
• For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
