48v 1000w 20in Front Fat Tire Electric Bicycle Motor Kit

48V 1000W 20 inch Front Fat Tire Frame Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel, a LED light and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.

Features:

• Approx. 28 mile/h (45 KPH) top speed
• Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs
• The Pedal Assist System (PAS) allows riding an e-bike without throttle response for less fatigue for a long-distance journey
• Supplied with a twist throttle, the motor is easily activated by twisting the handle, while 3 indicators show the battery status
• Brake levers cut off the power and brake when riding; CE certificated for quality & safety assurance
• Battery Recommendation: Lead Acid Battery featured in nominal voltage 48v, nominal capacity 17-20Ah is compatible with the motor.

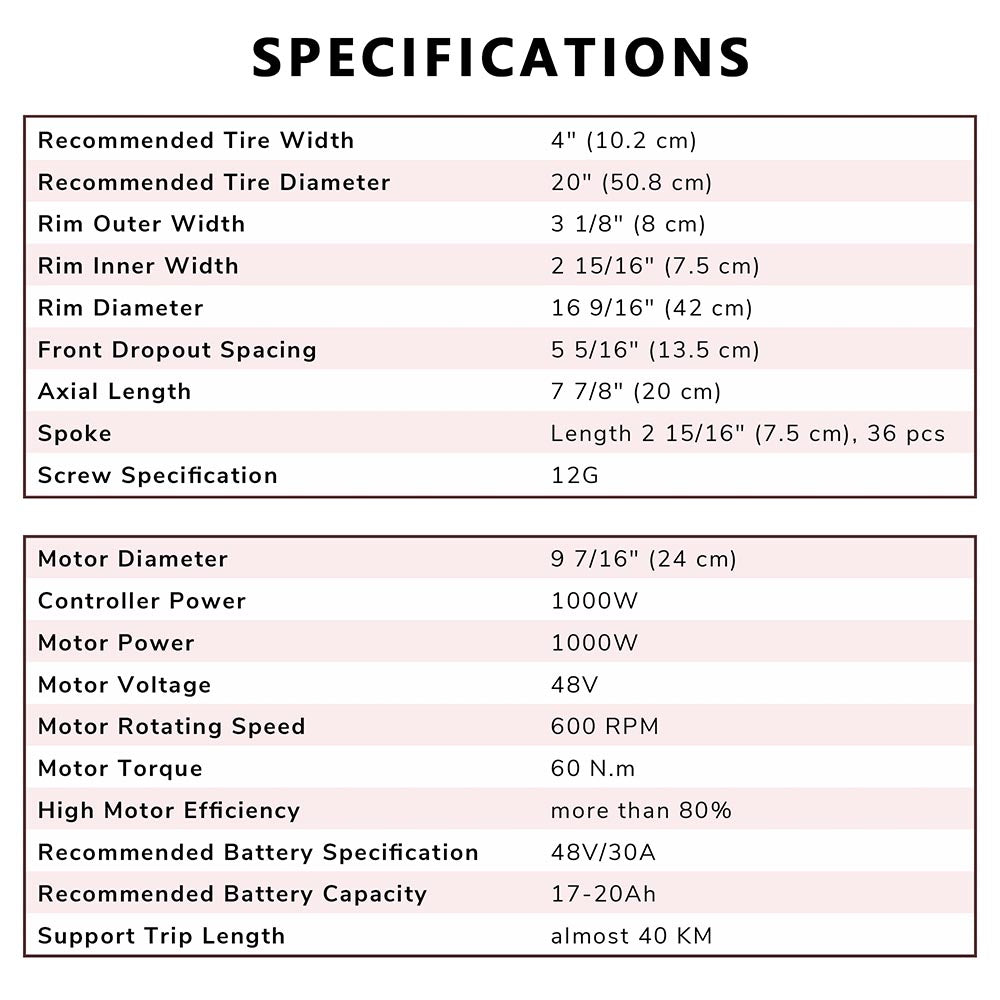

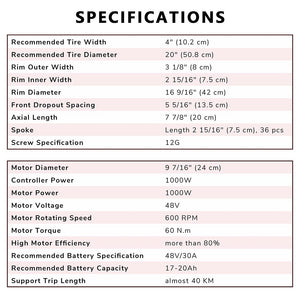

Specifications:

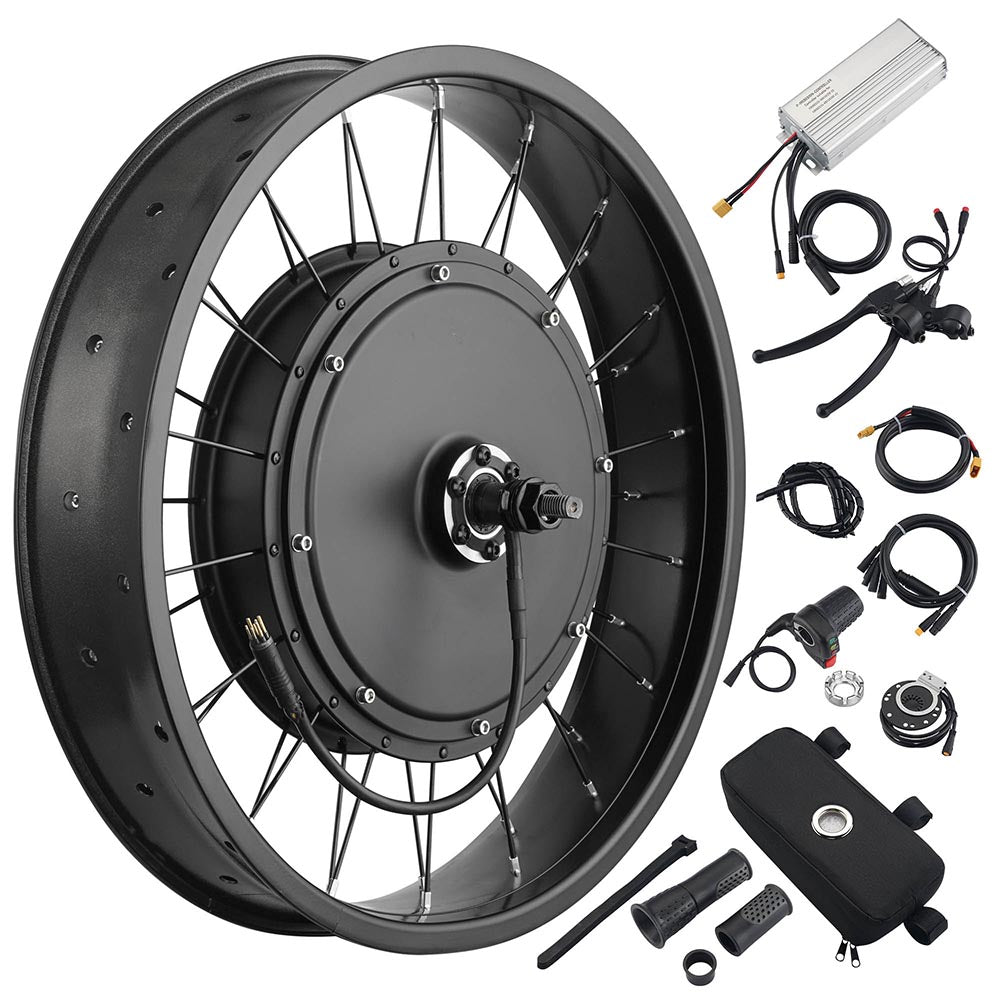

• The ebike conversion kit includes motorized wheel (not included the tire), motor controller, Thumb Throttle, power break lever, wire harness, pedal assist sensor

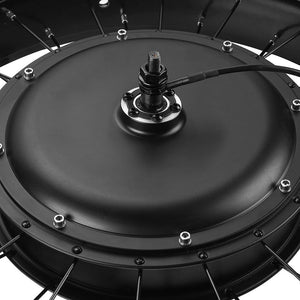

• Quiet and reliable brushless gearless hub motor
• Motor specifications: 48V / 1000W / 470RPM
• High motor efficiency: 80%

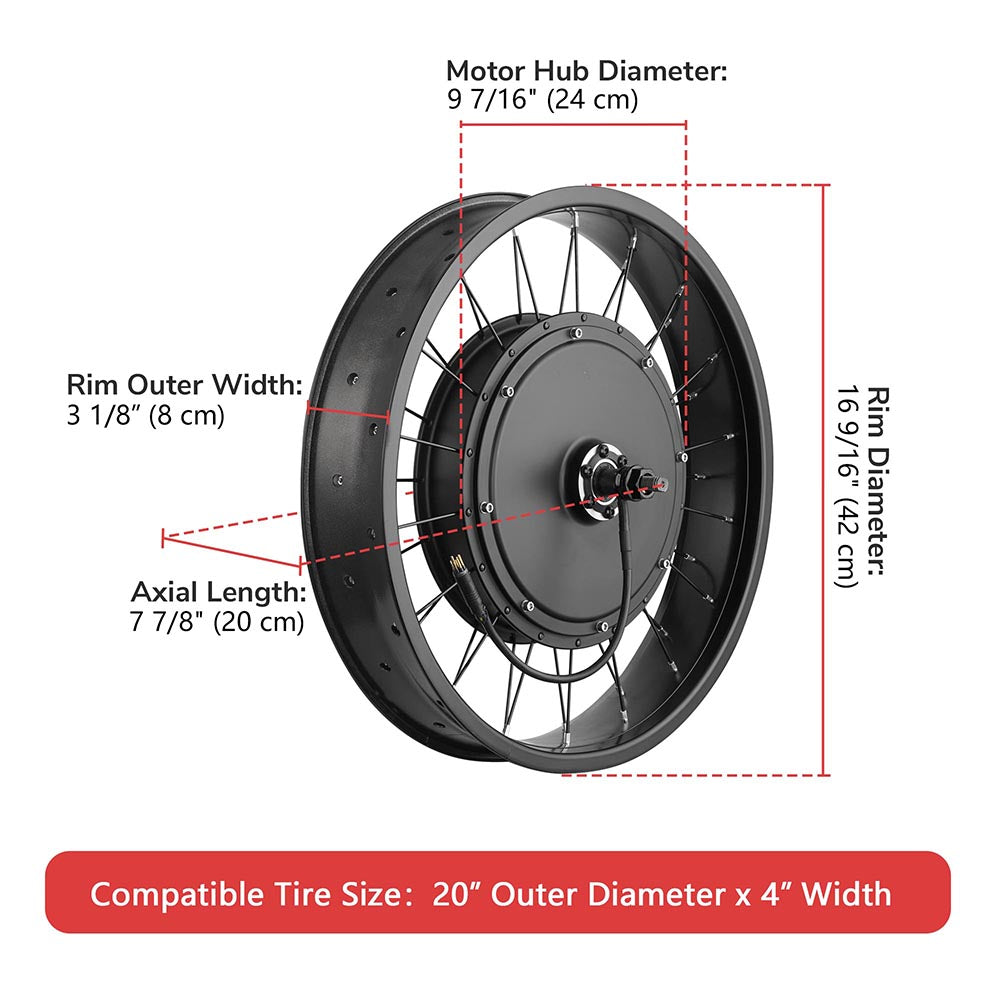

• Motor diameter: 245mm

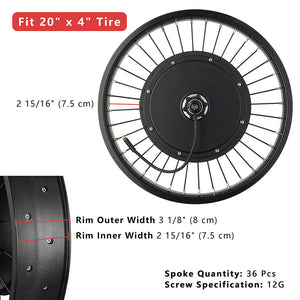

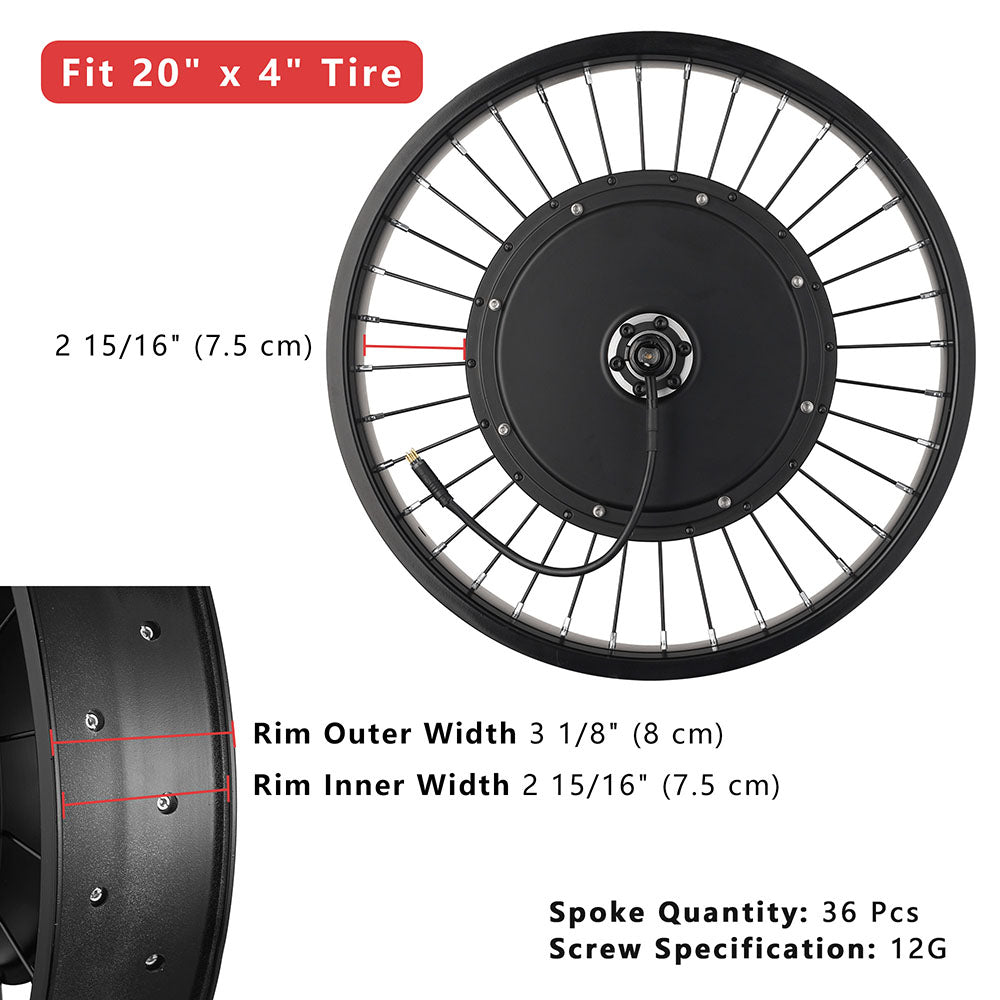

• Rim: width 3 1/4" (8.3cm)
• Tire: width 4" (not inculdes the tire)

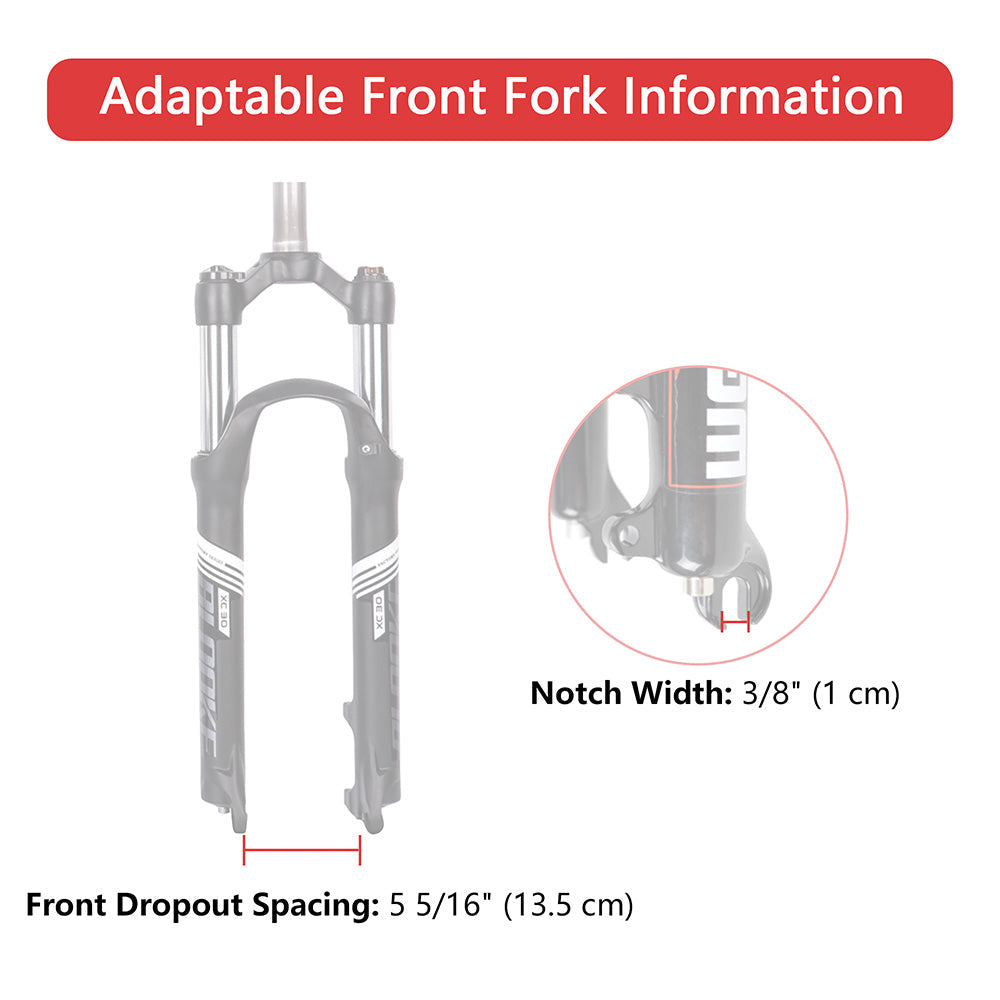

• The motor dropout spacing is 135MM

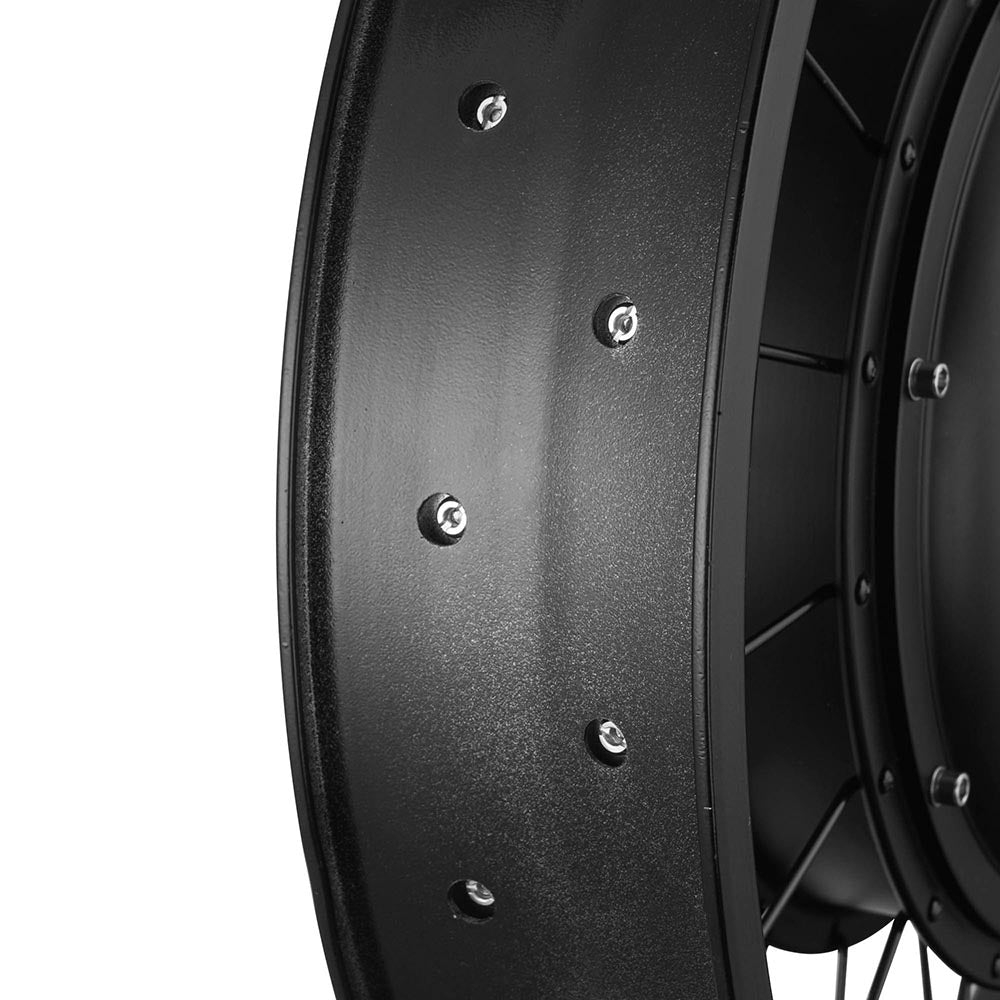

• Brushless Front Hub Motor mounted 20" fat tire single wall aluminum rim(rim width is 3 1/4")
• Thumb Throttle with 3 LEDs indicator lights
• Applicable Bike: Fat Tire Electric Bike(Not suit for other bike)
• Applicable Tire: 20"x4"
• Hub size: 16-1/2"
• Net weight: 20.9 Lbs (9.5 kg)

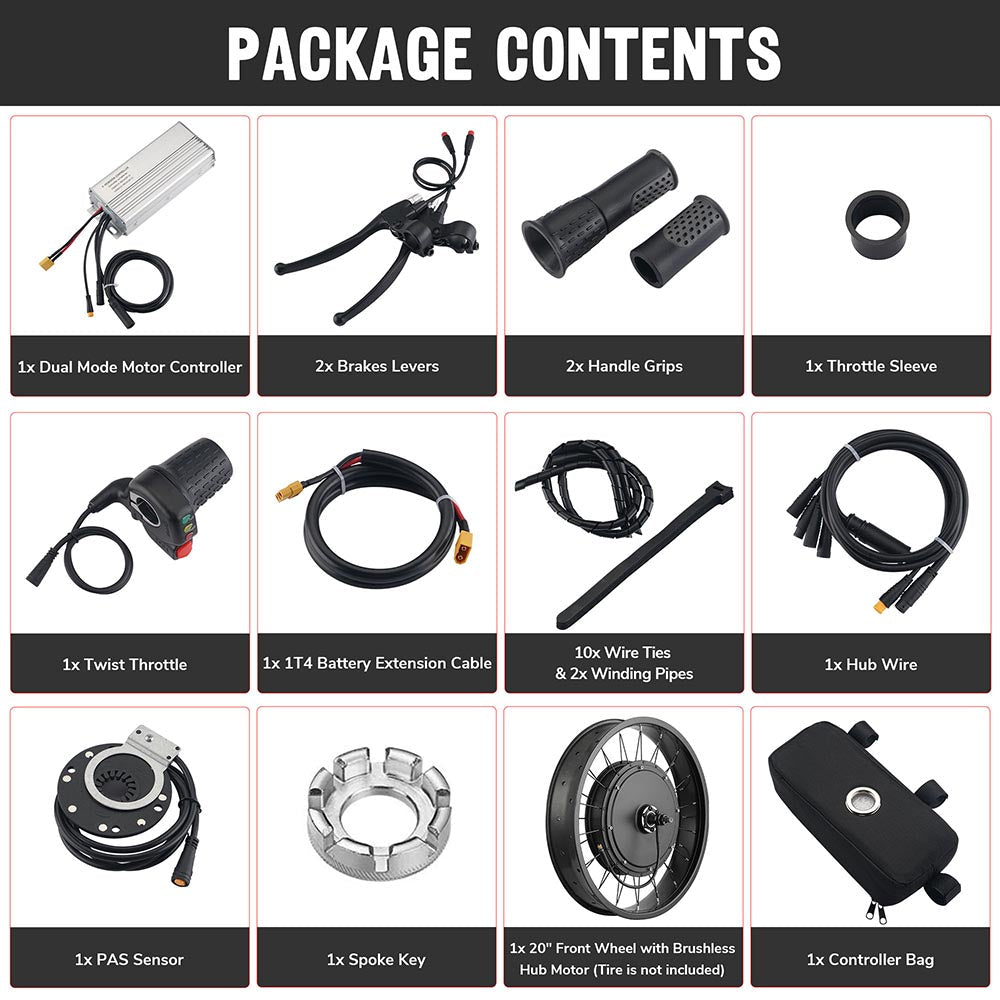

Package Includes:

• 1x 20" Front Wheel with Brushless Hub Motor (Tire is not included)
• 1x 1T4 Waterproof Battery Extension Cord
• 1x Dual Mode Motor Controller
• 2x Brakes Levers
• 2x Handle Grips
• 10x Wire Ties
• 2x Winding Pipes
• 1x Controller Bag
• 1x Hub Wire
• 1x Twist Throttle
• 1x PAS Sensor
• 1x Spoke Key
• 1x Manual

Notice:

• 1.Must to wear a helmet before riding this electric bicycle for protection.
• 2.Please go to those automobile repair shop with standard business license for modification.
• 3.For safety reasons, it is not recommended to use in rainy days.
• 4.It is only applicable to bicycle/snow bike, not tricycles, tractors, etc;
• 5.Suitable battery type and parameters: 48V, 30 Ah, travel about 20km;Recommended capacity is at least 8.8AH or above.
• 6. If you have any question about the compatible Model, please contact our Customer Service before purchasing.
• 7.Battery not included.
