5 Gallon Degassing Stainless Steel Vacuum Chamber Gasket Lid

5 Gallon Degassing Stainless Steel Vacuum Chamber with the shut off valve turned and the vacuum pump off the chamber could still hold a high vacuum for several hours which lose no more than 2.5 inHg/24hrs. It features strong and durable stainless steel container with chemical-resistant silicone gasket. It is suitable for degassing urethanes, silicone, epoxies and more.

Features:

• Multi-application - suitable for degassing urethanes, silicone, epoxies and more

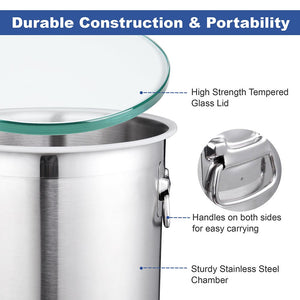

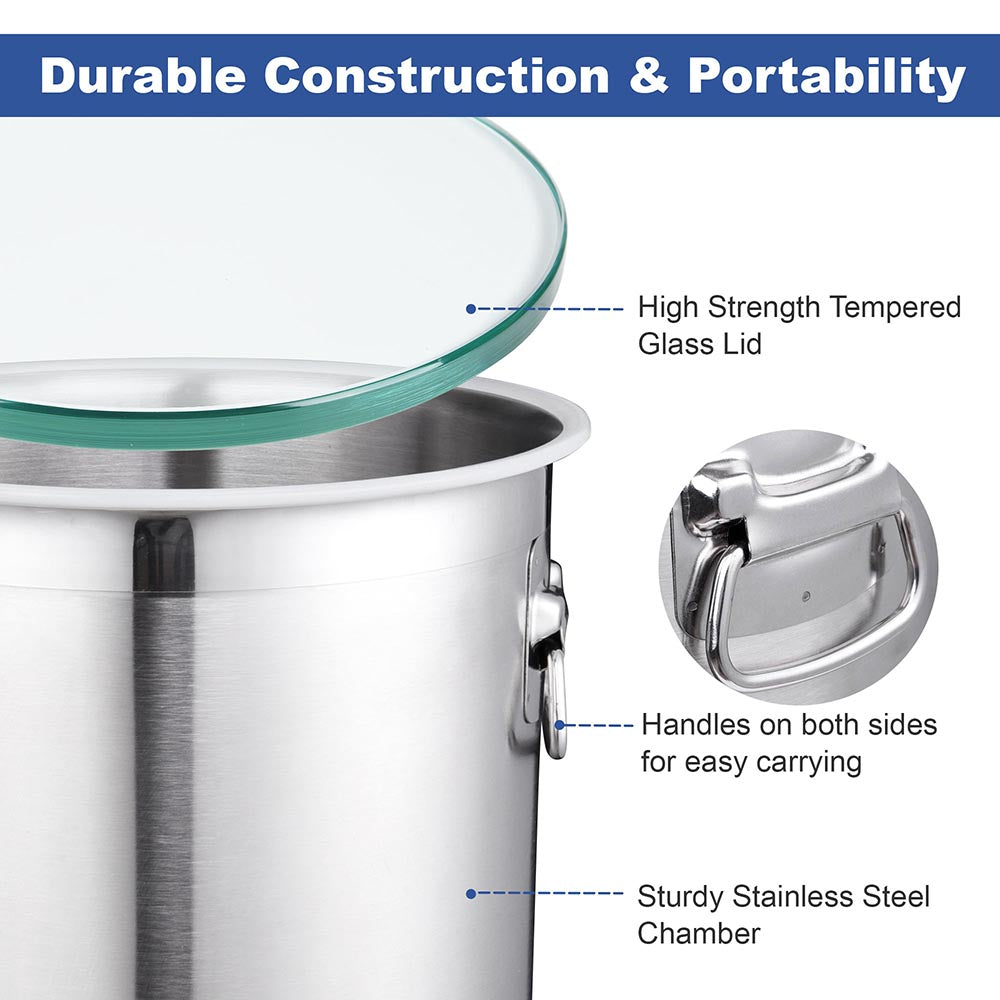

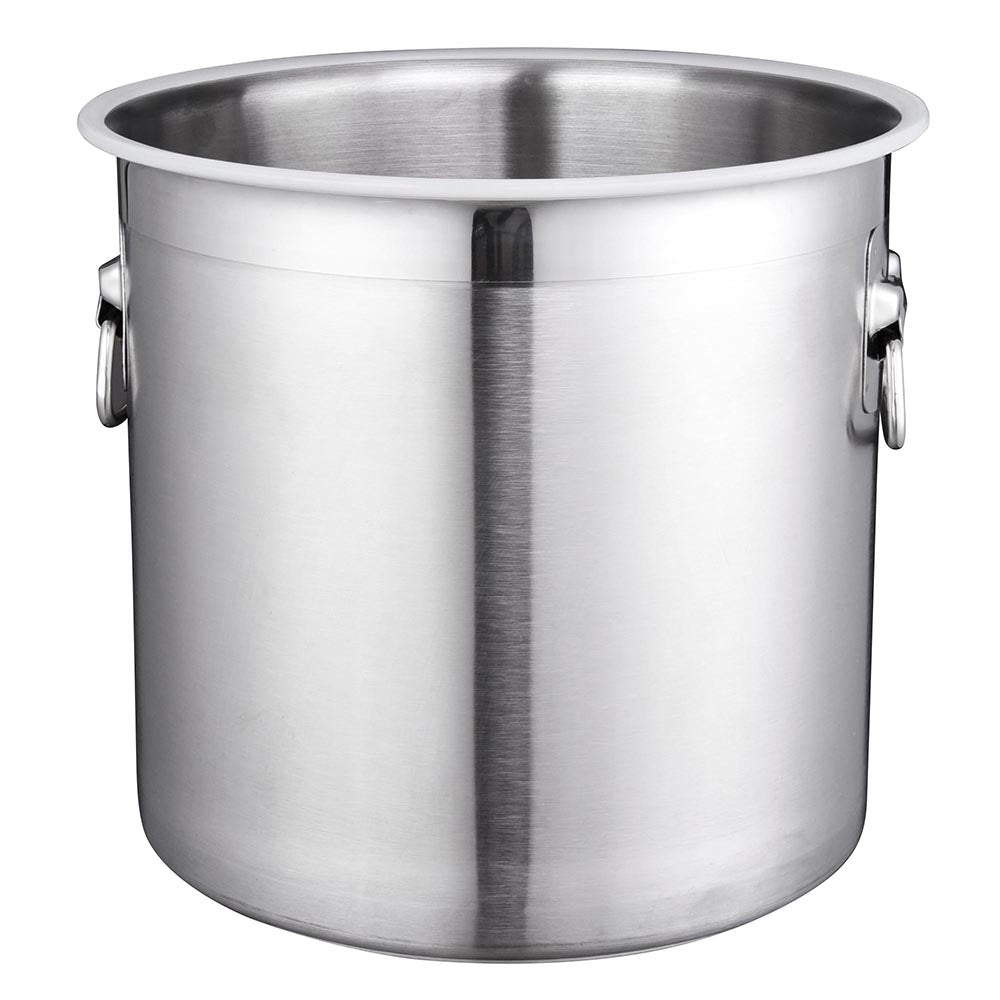

• Strong and durable stainless steel container with chemical-resistant silicone gasket
• Tempered glass lid, high-strength and shatter-resistant, provide safety

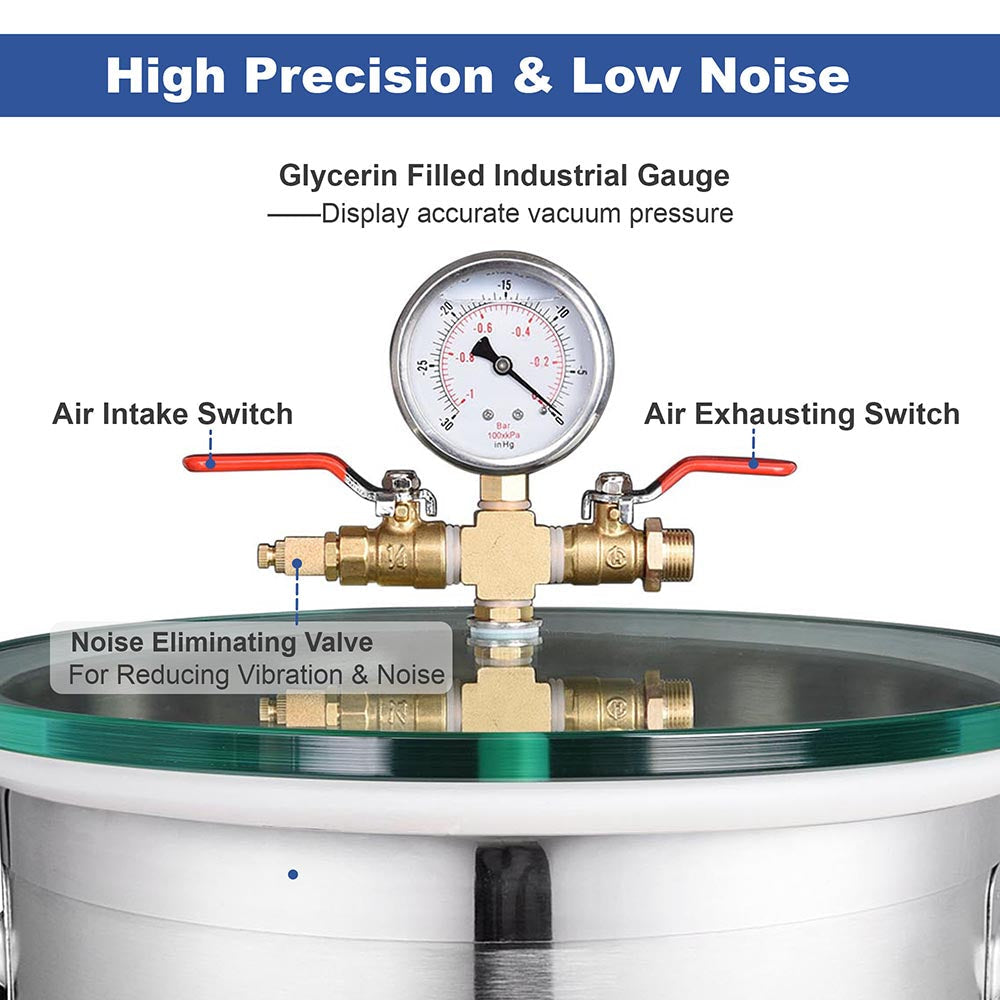

• Glycerin filled industrial gauge resists vibrations and keeps the gauge accurate
• With the shut off valve turned and the vacuum pump off the chamber could still hold a high vacuum for several hours
• Every chamber is tested before shipping and lose no more than 2.5 inHg/24hrs

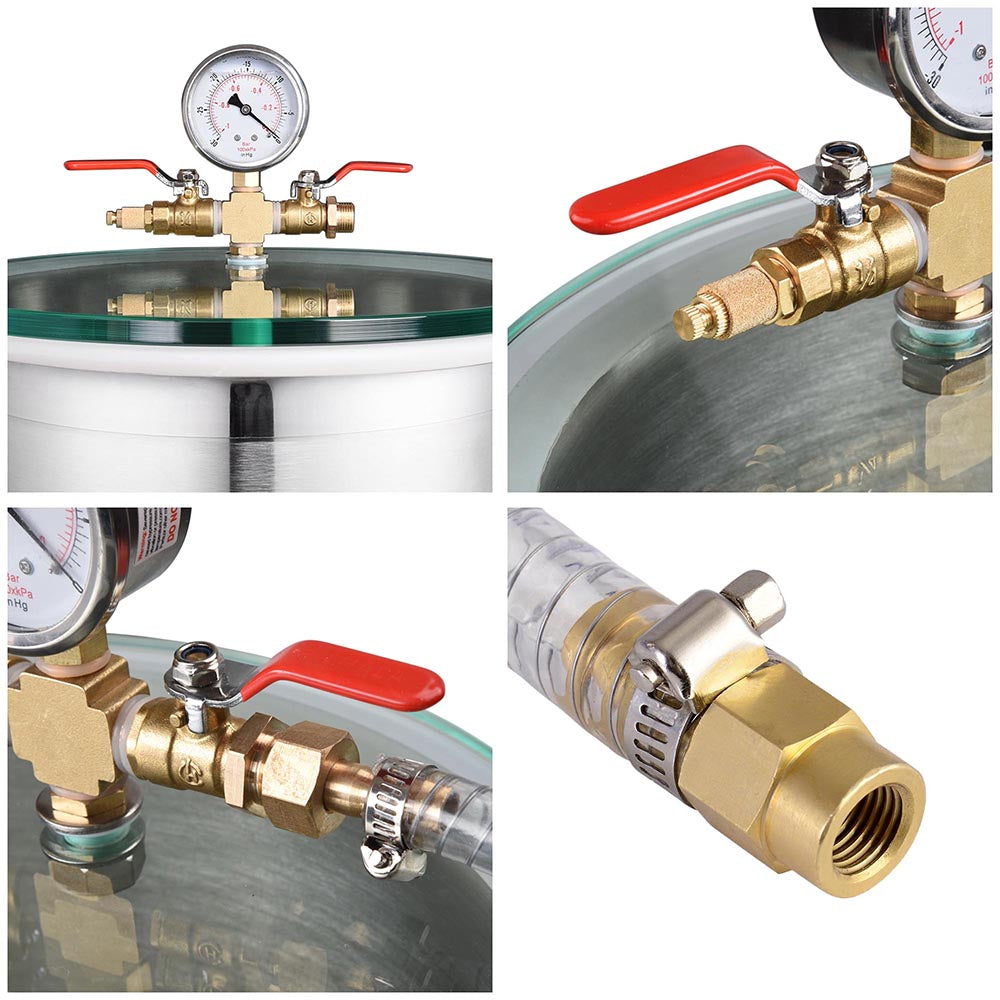

• Equipped with 2 silicone sealing gaskets on the joint of gauge for enhancing the sealing tightness

Specification:

• 2 Gallon:
  • Chamber Dimension(Dia.xH): 8 11/16" x 7 7/8" (22 x 20 cm)
  • Thickness of Lid: 1/2" (12 mm)
  • Diameter of Lid: 9 7/16" (24 cm)
  • Length of Steel Wire Hose: 66 15/16" (1.7 m)
  • Maximum Rated Vacuum: 29 inHg at sea level
  • Leakage within 24hrs: Less than 2.5 inHg
  • Maximum Operation Temperature: 160°F (71°C)
  • Material: Stainless Steel, Tempered Glass
  • Net Weight: 8.8 Lbs (4 kg)

• 3 Gallon:
  • Chamber Dimension(Dia.xH): 10 13/16" x 9 13/16" (27.5 x 25 cm)
  • Thickness of Lid: 1/2" (12 mm)
  • Diameter of Lid: 11 7/16" (29 cm)
  • Length of Steel Wire Hose: 66 15/16" (1.7 m)
  • Maximum Rated Vacuum: 29 inHg at sea level
  • Leakage within 24hrs: Less than 2.5 inHg
  • Maximum Operation Temperature: 160 degrees Fahrenheit (71 degrees Celsius)
  • Material: Stainless Steel, Tempered Glass
  • Net Weight: 12.1 Lbs (5.5 kg)

• 5 Gallon:
  • Chamber Dimension(Dia.xH): 12" x 10 13/16" (30.5 x 27.5 cm)
  • Thickness of Lid: 1/2" (12 mm)
  • Diameter of Lid: 12 5/8" (32 cm)
  • Length of Steel Wire Hose: 66 15/16" (1.7 m)
  • Maximum Rated Vacuum: 29 inHg at sea level
  • Leakage within 24hrs: Less than 2.5 inHg
  • Maximum Operation Temperature: 160 degrees Fahrenheit (71 degrees Celsius)
  • Material: Stainless Steel, Tempered Glass
  • Net Weight: 13.9 Lbs (6.3 kg)

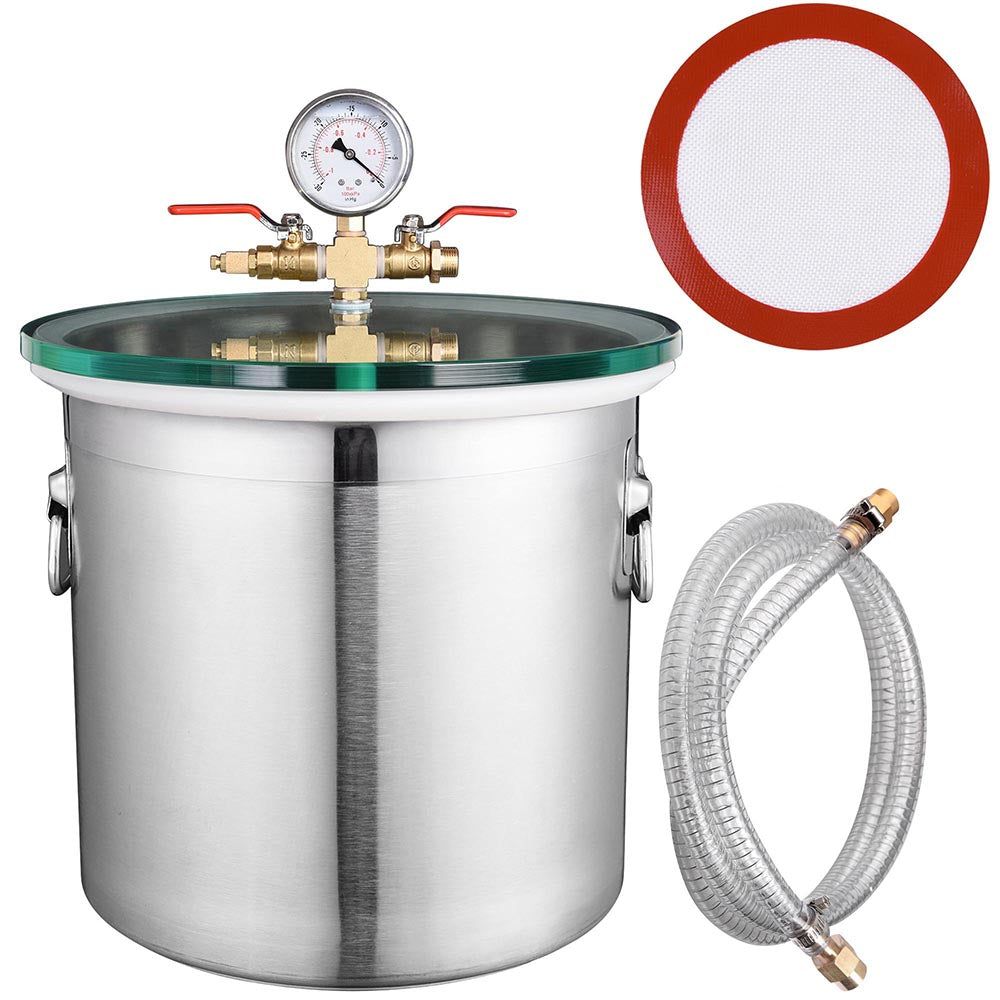

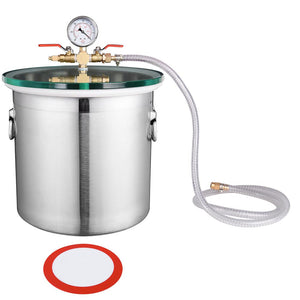

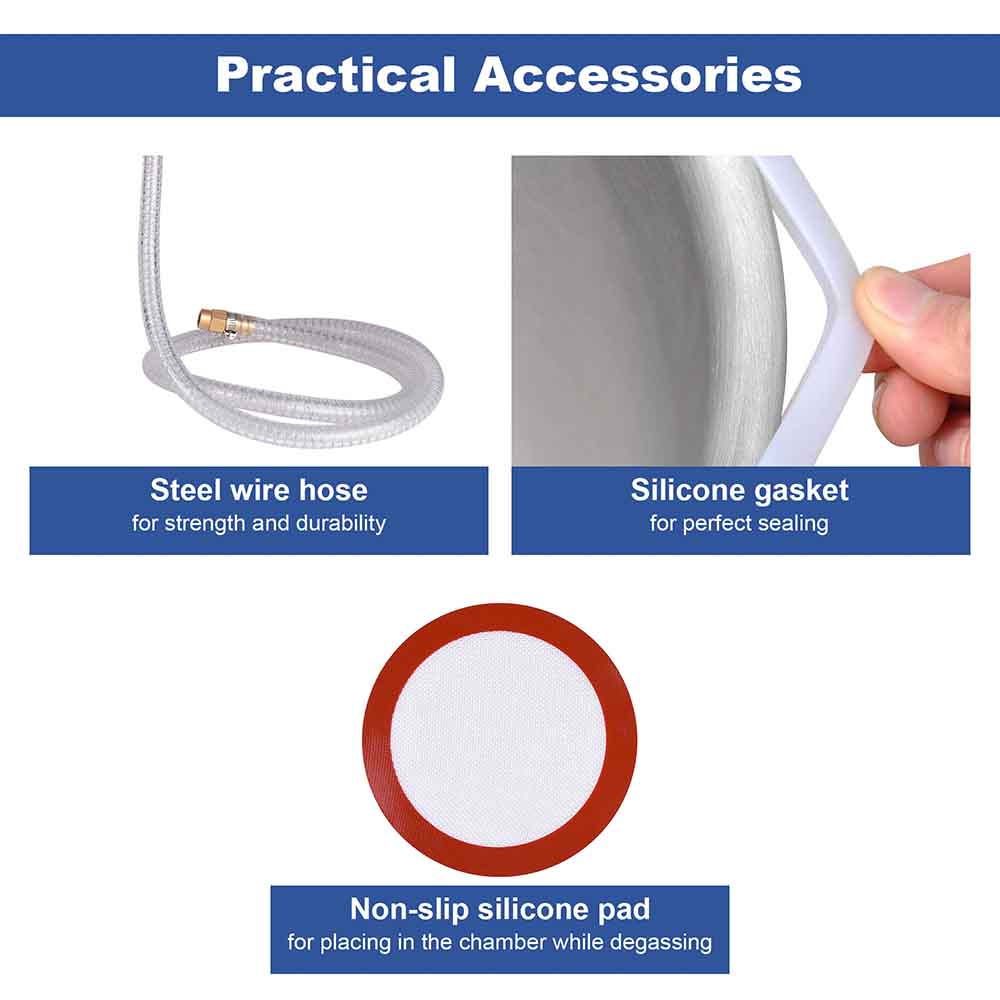

Package Includes:

• 1x Vacuum Chamber with Lid & Gasket
• 1x Gauge with Fittings
• 1x Hose
• 1x Silicone Pad
• 1x Manual

Compatibility Explanation:

• Chambers are not compatible with stabilization resin (i.e. Gator Venom, Min wax etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers. The lid may only be cleaned with soapy water.
