1 3/4" Square Knockout Punch and Dies 45mm

This Square Hydraulic Punching Die is crafted by high strength 40Cr Steel for corrosion resistance and durability, can drill square holes in steel and iron plates for various uses in manufacturing industry.

Features:

• Hydraulic Punch Die - This Square Hydraulic Hole Punch Die with 2 draw studs is designed to be installed on hydraulic punch to drill 1 3/4" x 1 3/4" holes on up to 16-gauge stainless steel, 11-gauge iron, steel, aluminum, brass, fiberglass, and plastics

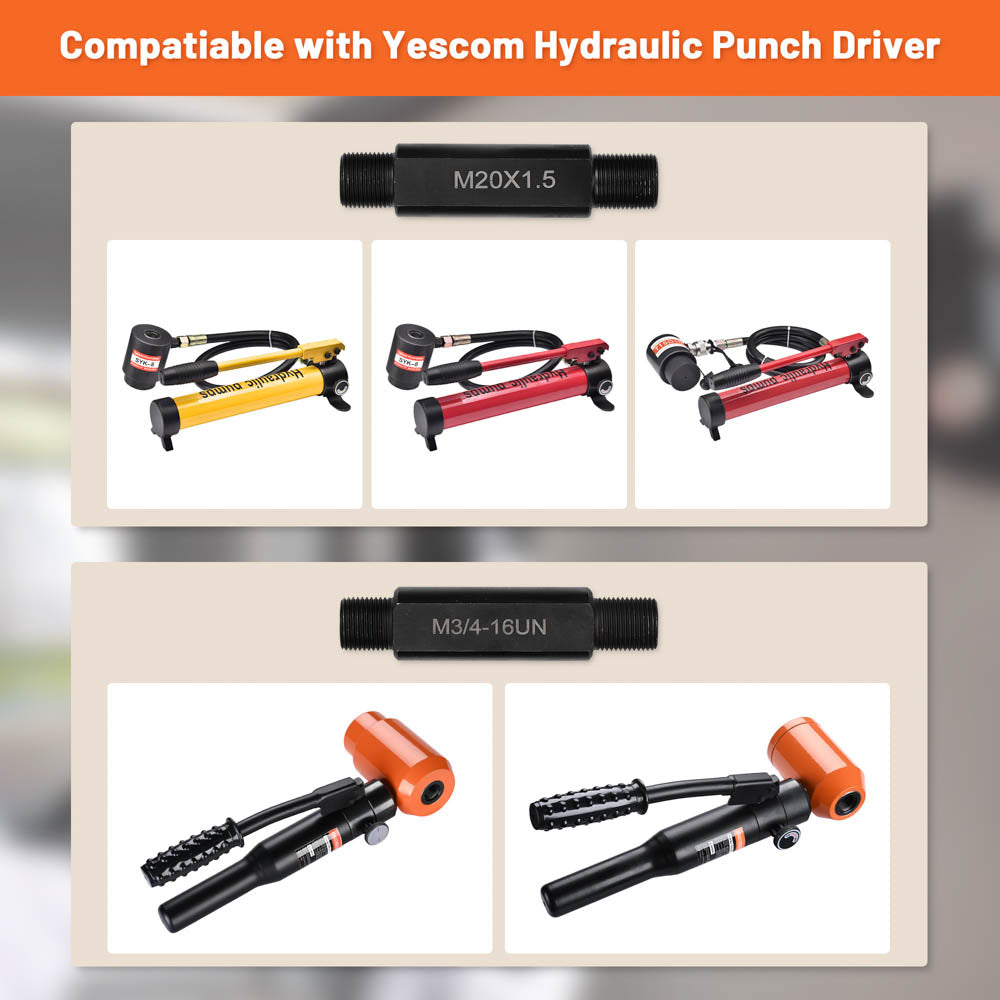

• Compatibility - This square knockout die is compatible with our 8/10/15 Ton Hydraulic Knockout Punch Kit
• Sturdy Steel Construction - Made of heat treated 40Cr Steel for enhanced hardness, tensile strength, and rust resistance, suitable for long-time punching and cutting for a large variety of materials like iron, stainless steel, aluminum, brass

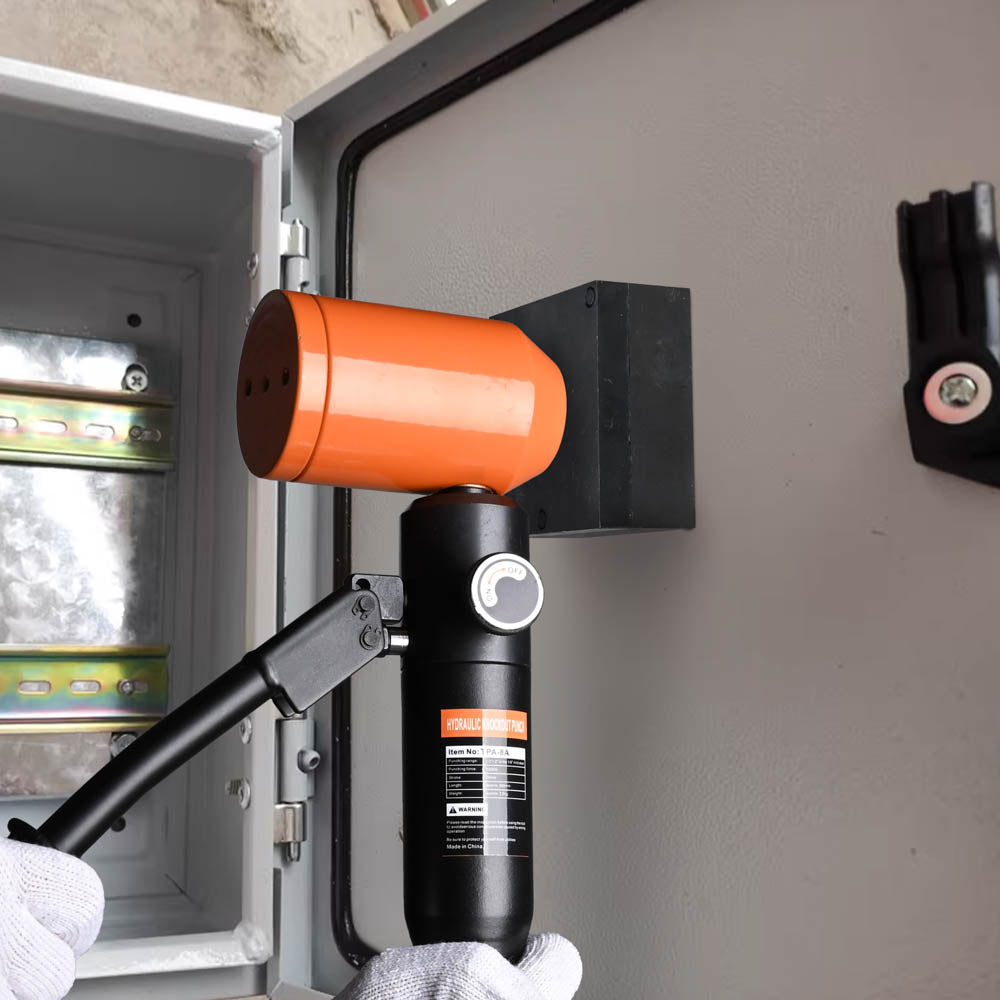

• Widely Used - The hydraulic knockout punch die is ideal for multiple usages such as sheet metal fabrication, electric service boxes, wire pipelines, signal lamps and instrument on construction sites, metallurgy, electronics, etc.

Specifications:

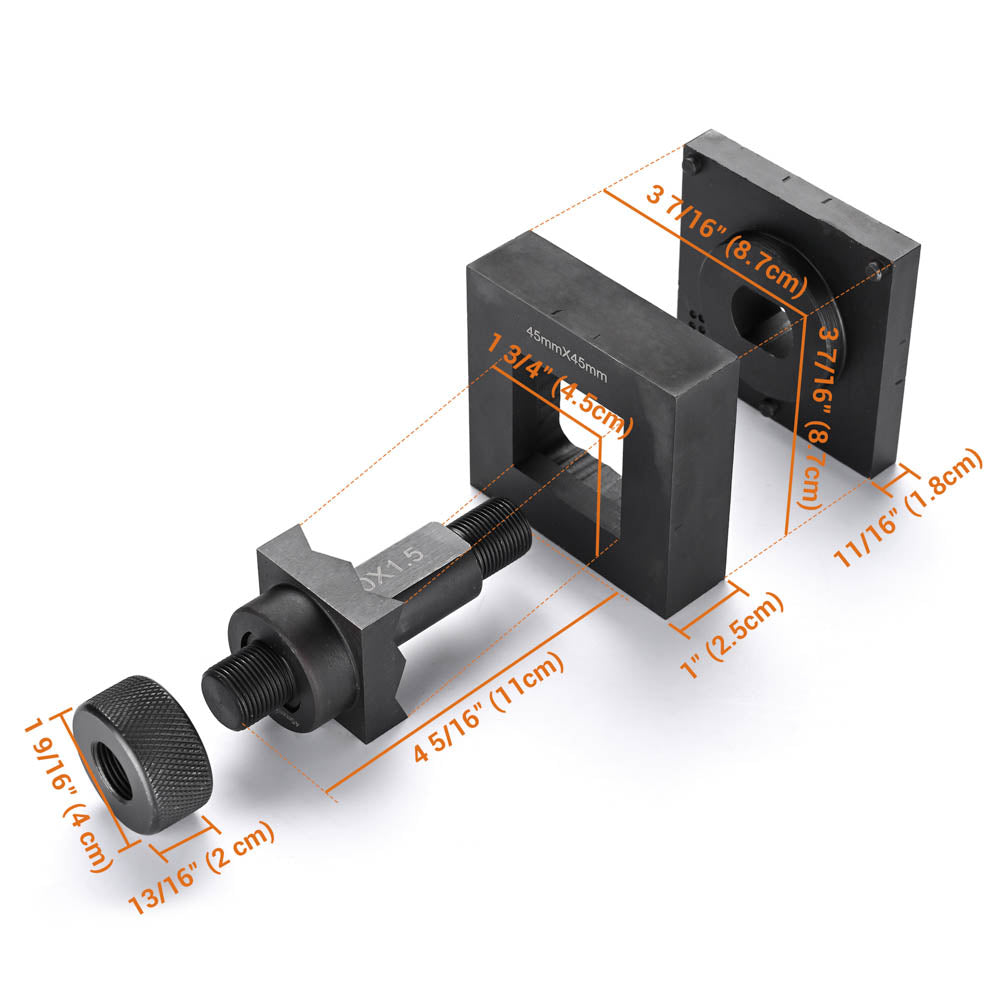

• Overall Dimension(LxWxH): 3 7/16" x 3 7/16" x 4 5/16" (8.8 x 8.8 x 11 cm)
• Conduit Size: 1 3/4" x 1 3/4" (4.5 x 4.5 cm)
• Draw Stud Size: 1" x 13/16" x 4 5/16" (2.6 x 2 x 11 cm)
• Draw Stud Thread Size: M20×1.5, M3/4-16
• Max. Thickness for Iron: 1/8" (11 gauge)
• Max. Thickness for Stainless Steel: 1/16" (16 gauge)
• Material: 40Cr Steel
• Net Weight: 6.4 Lbs (2.9 kg)

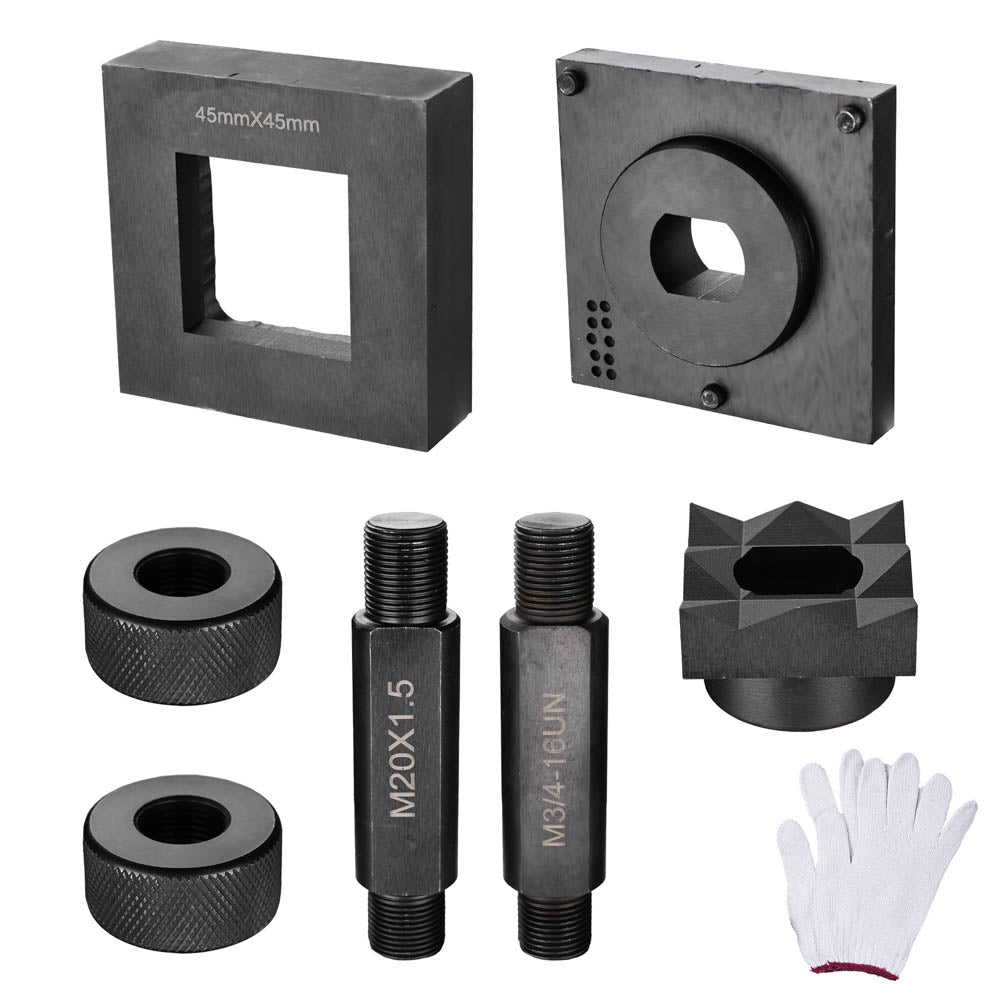

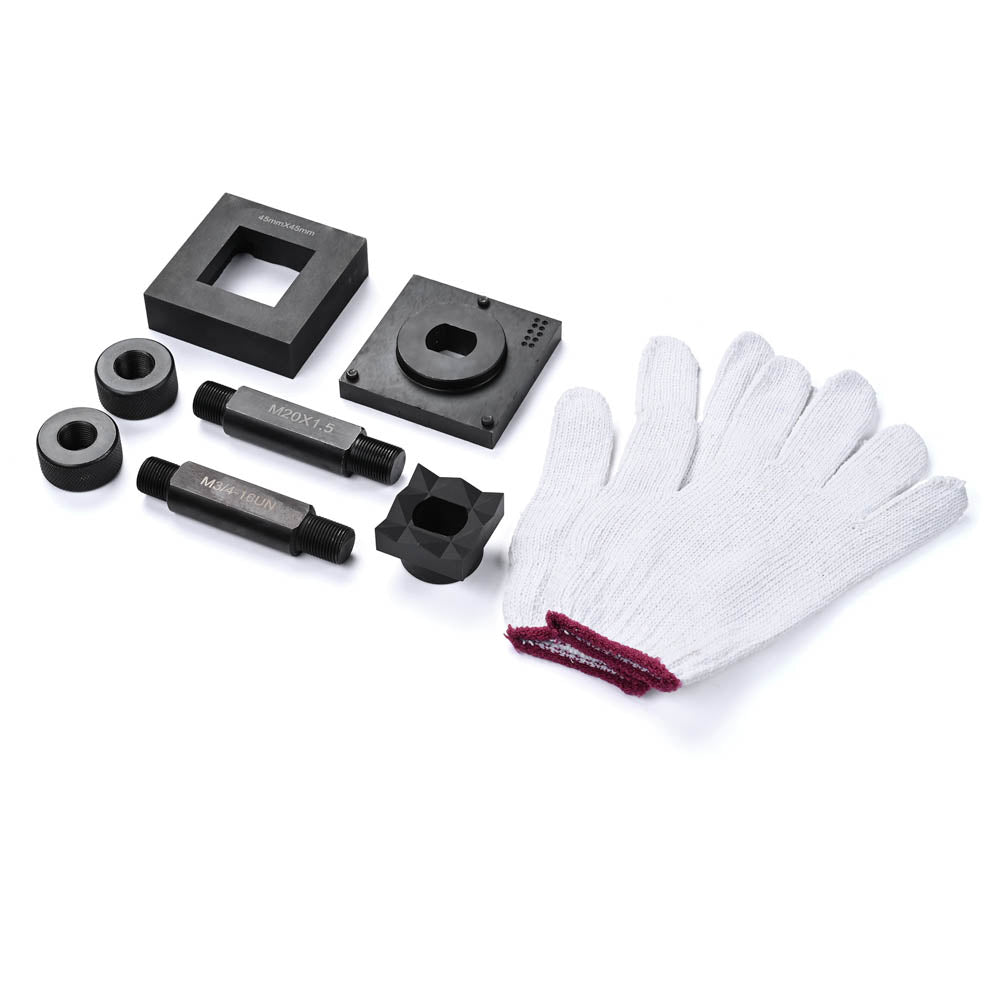

Package Includes:

• 1x Hydraulic Punching Die
• 2x Draw Studs
• 2x Nuts
• 1 Pair of Gloves
• 1x Manual
