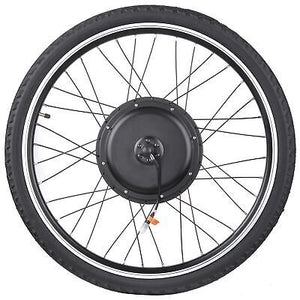

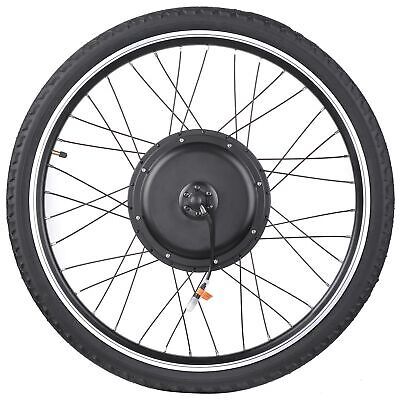

Yescom Electric Bike Motor Conversion Kit 26"Front Wheel 1000W W/ LCD Display

Features:

- Powerful Brushless Motor - Electric bicycle front wheel conversion kit features 48V 1000W brushless and gearless hub motor for efficient running; fit for any 26" bicycle frame with 3 15/16" front dropout spacing, easily convert your bicycle to electric bike and reach the maximum riding speed of 45 KM/H, suitable for regular bicycles used on commuting and short journey
- Dual Mode Controller - Motor works under Hall effect and non-Hall effect for extending life for electric bicycle; If the components break down, controller will switch into non-hall effect mode, the motor will still be working
- Pedal Assist System - Pedal assist system (PAS) for sensing your pedal cadence and allowing you to ride electric bike comfortably without pressing the throttle on the handlebars, can avoid uncomfortable wrist positions and easy to pedal with less fatigue, great for a long-distance journey
- Durable & Convenient - Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction; LCD operation panel for displaying riding information such as battery power and riding speed
- Safe & Environmentally-Friendly - Brake levers for cutting off the power and braking when riding, can ensure riding safety; CE certificated for quality and safety assurance; battery powered design for environmental protection

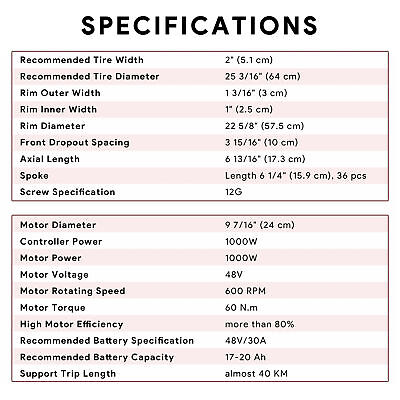

Specifications:

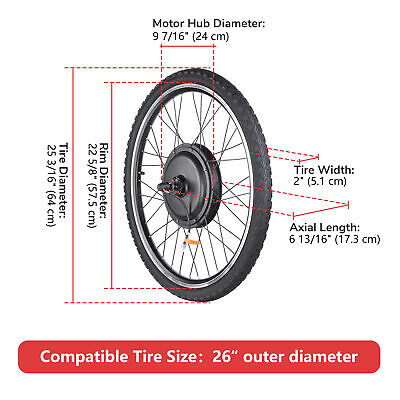

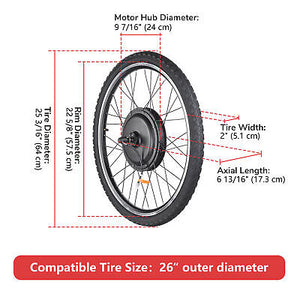

- Overall Dimension(Dia.xW): 25 3/16" x 2" (64 x 5.1 cm)
- Compatible Tire Size: 26"
- Rim Diameter: 22 5/8" (57.5 cm)
- Axial Length: 6 13/16" (17.3 cm)

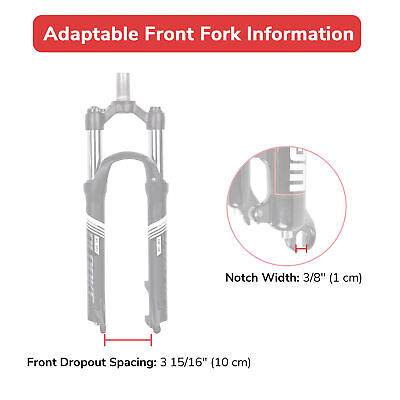

- Front Dropout Spacing: 3 15/16" (10 cm)
- Motor Diameter: 9 7/16" (24 cm)
- Controller Power: 1000W
- Motor Voltage: 48V
- Motor Rotating Speed: 600 RPM
- Motor Torque: 60 N.m
- Recommended Battery Specification: 48V/30A
- Recommended Battery Capacity: 17 to 20Ah
- Suitable Brake Type: Disc Brake / V-Brake
- Weight Capacity: 220 Lbs (100kg)
- Climbing Angle: 12 Degrees
- Net Weight: 24.3 Lbs (11 kg)

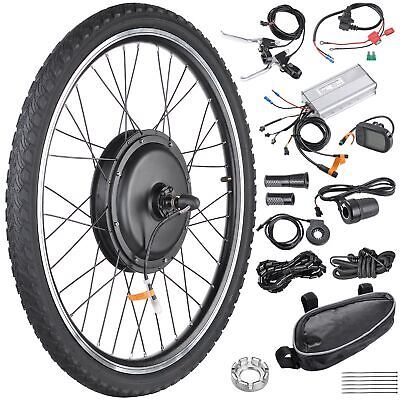

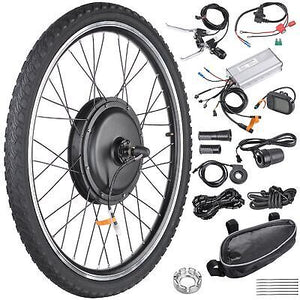

Package Contents:

- 1x 26" Front Wheel with Brushless Hub Motor
- 1x Dual Mode Motor Controller
- 2x Brake Levers
- 2x Handle Grips
- 1x Twist Throttle
- 1x Controller Bag
- 1x Winding Pipe
- 1x Strip
- 1x Set of Cable Tie
- 1x PAS Sensor
- 1x LCD Meter
- 1x Battery Connection Cable

Notice:
- Battery and charger are not included, please prepare them before using.
- The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc.
- Please go to automobile repair shops with standard business license for modification.
- For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
