Fixing Hardware Kit Stainless Steel Pad Eye Turnbuckle Carabiner, 8

By using this Sun Shade Sail Hardware Kit (includes 4 pad eyes, 2 M6 turnbuckles, 2 carabiner and a set of screws), the rectangle or square sunshade sail can be easily fixed through simple installation. The design of the hook and mountaineering buckle makes it more convenient to take off the sunshade sail. It is made of 304 stainless steel and is very durable.

Features:

• Wide Application - All in 1 Universal Hardware Kit for Rectangular Shade or Square Shade, to hang the canopy shade steadily on the wall, tree or pole; A great sun shade sail accessory to install at private patio, garden, coffee shop and swimming pool

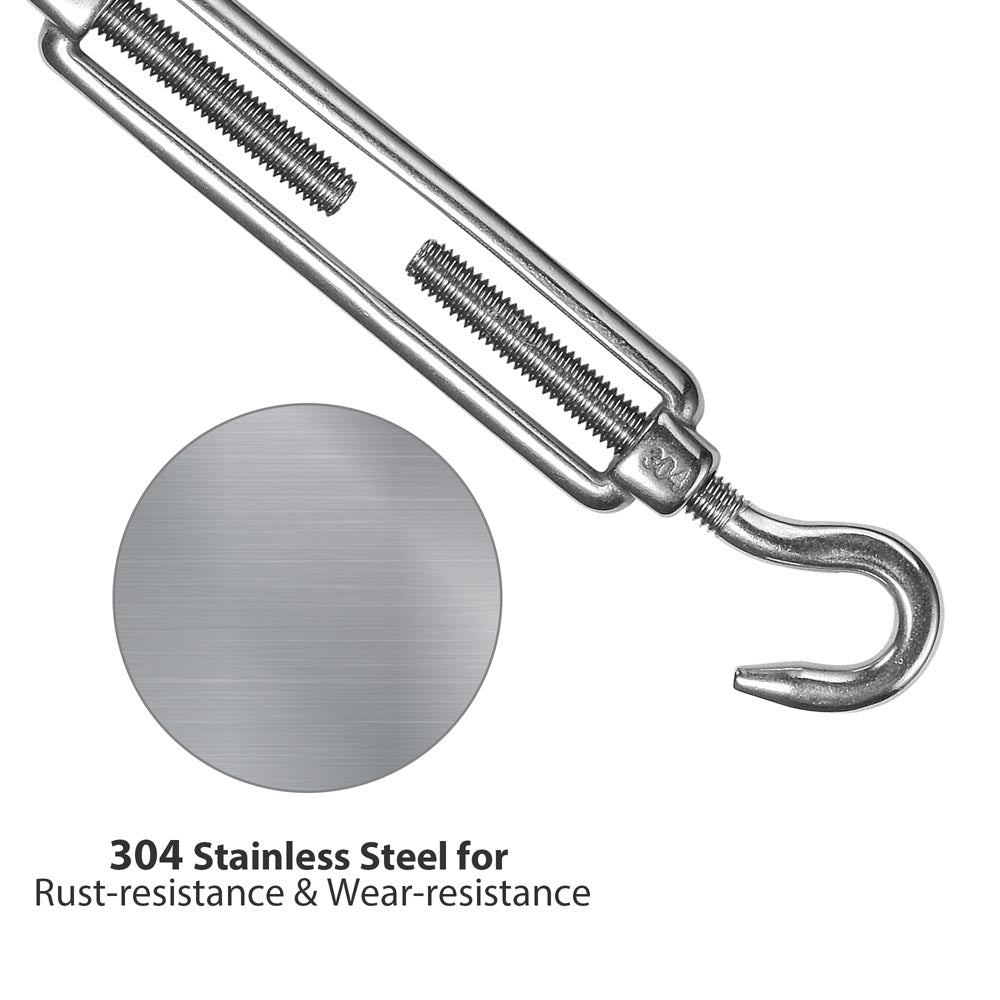

• Durable in Use - 304 stainless steel hardware features rust-resistance and wear-resistance, perfect for outdoor using
• Fine Adjustment - Carabiner for fixating the sail, turnbuckles to adjust the length between sail and mounting point from 6" to 8", add tension to fully expand the sail for keeping it steady on windy days, fine adjustment for better hanging performance

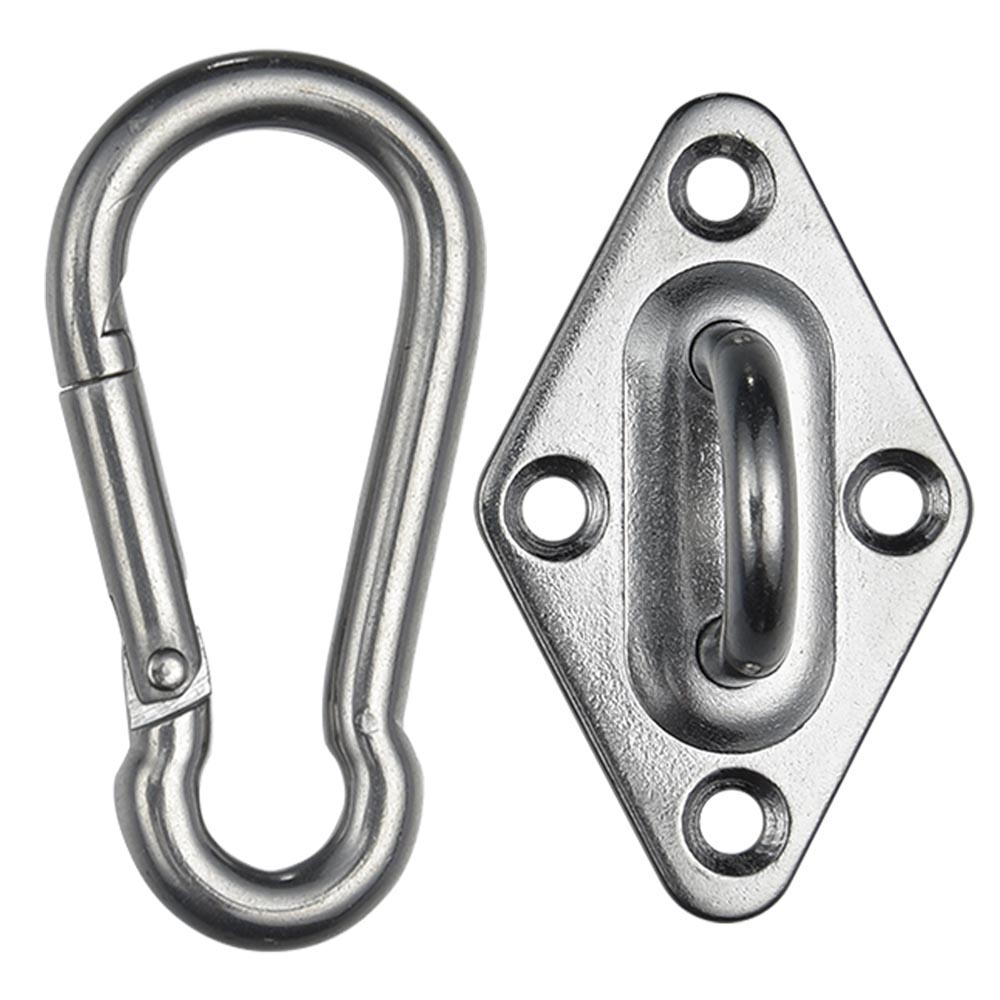

• Stable Construction - Pad eyes for hanging carabiner and turnbuckle, screwing installation guarantee its stability; Plastic anchors reinforce the screw to prevent pad eyes from pulling out

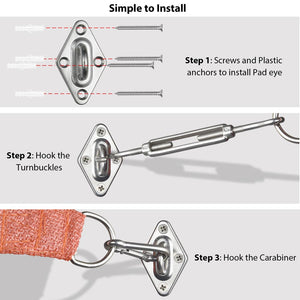

• Easy to Assemble - Fixate the pad eye with screws and anchors to finish installation; Compared to rope hanging, hook and carabiner are easier to take down while not using in inclement weather

Specifications:

• Size Optional: 5-7 IN/ 6-8.5 IN/ 8-11.5 IN/ 6-8.5 in with 12ft Cable

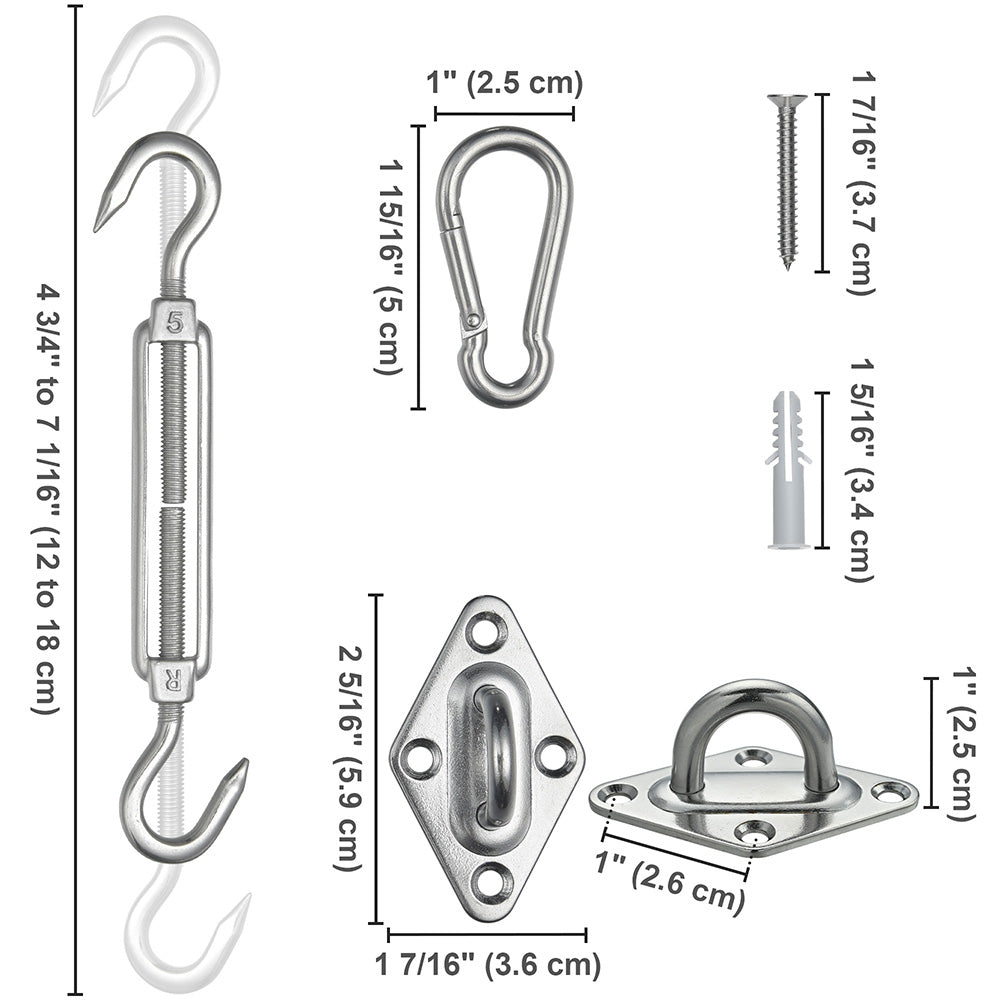

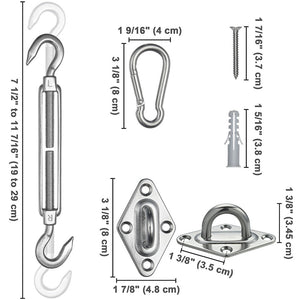

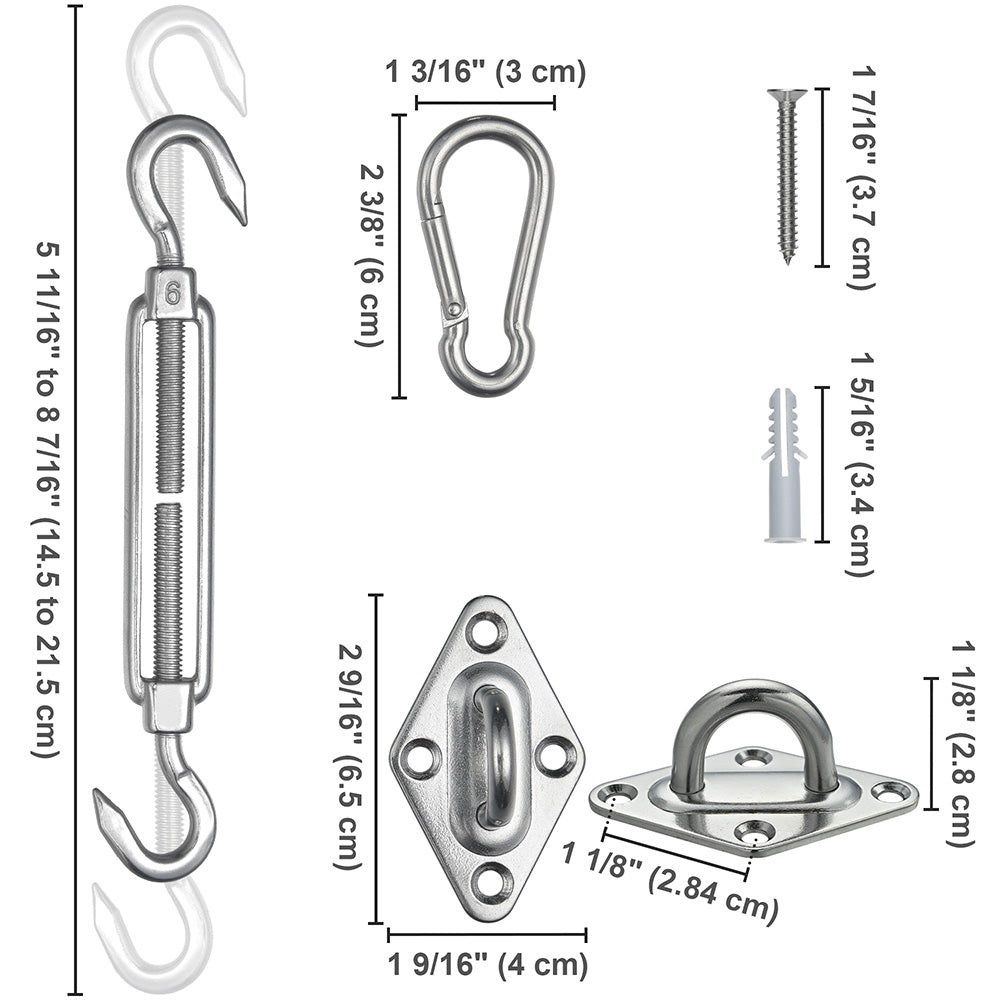

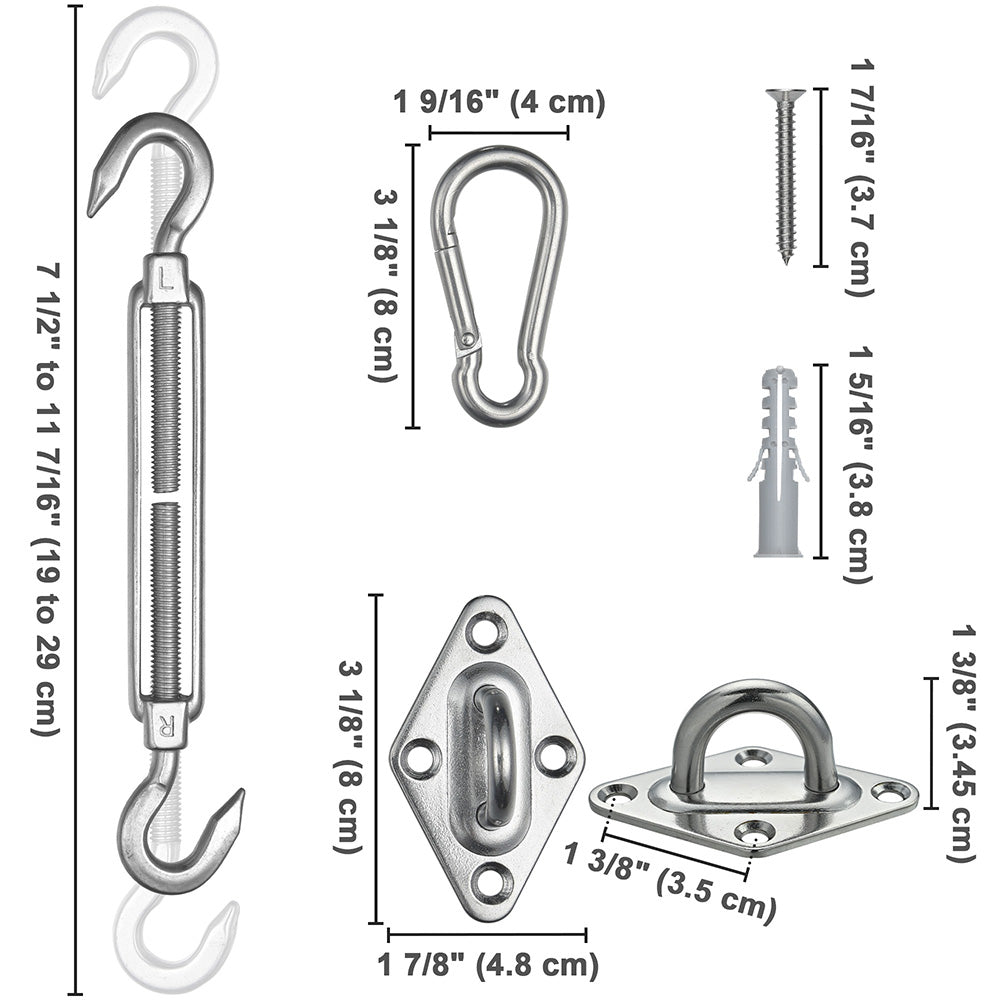

	5-7 IN	6-8.5 IN	8-11.5 IN
Turnbuckle Length	4 3/4" to 7 1/16"	5 11/16" to 8 7/16"	7 1/2" to 11 7/16"
Pad Eye Dimension(LxWxH)	2 5/16" x 1 7/16" x 1"	2 9/16" x 1 9/16" x 1 1/8"	3 1/8" x 1 7/8" x 1 3/8"
Carabiner Dimension(LxWxH)	1" x 1 15/16" x 3/16"	1 3/16" x 2 3/8" x 3/16"	1 9/16" x 3 1/8" x 5/16"
Screw Length	1 7/16" (3.7 cm)
Pad Eye Tensile Strength	386 Lbs (175 kg)	882 Lbs (400 kg)
Turnbuckle Tensile Strength	220 lbs (100 kg)	551 Lbs (250 kg)
Carabiner Tensile Strength	375 lbs (170 kg)	992 Lbs (450 kg)
Net Weight	0.64 Lb (0.29 kg)	0.88 Lbs (0.4 kg)	1.65 Lbs (0.75 kg)

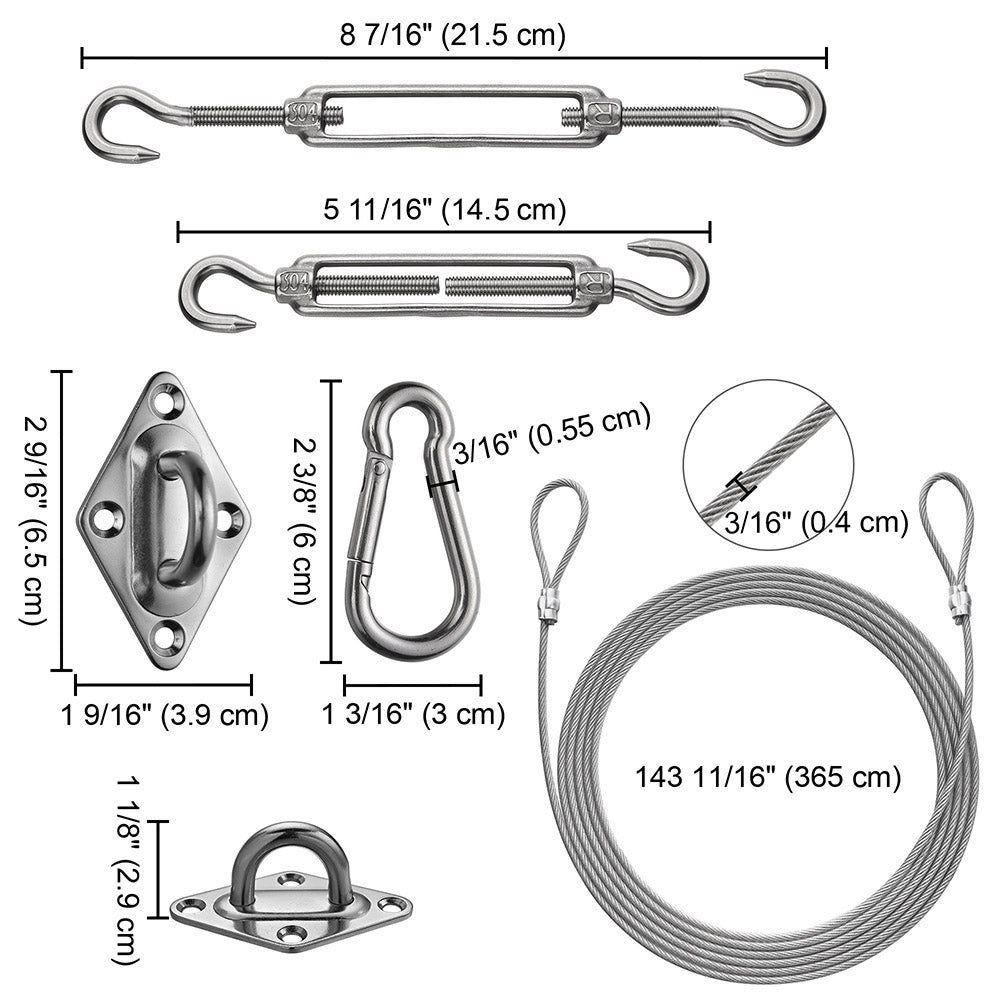

• 6-8.5 IN with 12ft Cable:
  • Cable Wire Size(Dia.xL): 3/16" x 143 11/16" (0.4 x 365 cm)
  • Snap Hook Dimension(LxWxH): 2 3/8" x 1 3/16" x 3/16" (6 x 3 x 0.55 cm)
  • Net Weight: 1.8 Lbs (0.82 kg)

Package Includes:

• 4x Pad Eyes
• 2x Turnbuckles
• 2x Carabiner
• 12x Screws
• 12x Plastic Anchors
• 1x Manual
• 3x Cable Wires (6-8.5 in with 12ft Cable option only)
• 1x Snap Hook (6-8.5 in with 12ft Cable option only)
