316 Stainless Steel Cable Railing Hardware Turnbuckle Lag Screw Beveled Washer

Features:

- Great Compatibility - Stainless steel cable railing hardware kit includes 20pcs left hand threaded lag screws, 20pcs right hand threaded lag screws, 30pcs beveled washers, 6pcs turnbuckles, 50pcs stainless steel protective sleeves and 2pcs drill bits fitting for 1/8" to 3/16" indoor and outdoor cable railing on decking, stairs, aisles, etc; applicable to our cable models: YES0352/ YES0353/ YES0354/ YES0355/ YES0356/ YES0357
- 316 Stainless Steel - All the hardware kits are made of T316 marine-grade stainless steel which is high strength, anti-rust and corrosion-proof, durable for long time outdoor use

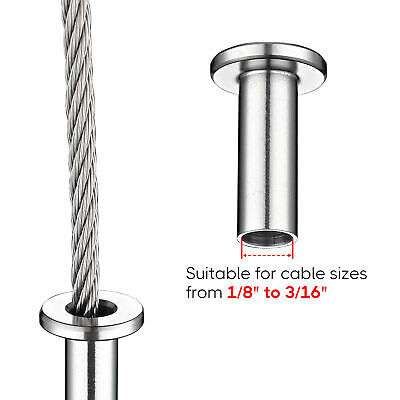

- Lag Screw & Protective Sleeve - 20 right hand & 20 left hand threaded lag screws feature 3/16” screw hole diameter for fitting to 1/8" to 3/16" cable railing, great for adjusting cable tightness and making installation easier; protective sleeves used on wood post for preventing holes from being damaged by cable tension and abrasion
- M6 Turnbuckles - Hook to hook M6 turnbuckles with adjustable length for extending from 5 7/8" to 8 11/16", suitable for adjusting wire rope tension to change the elastic effect to fit for different cable railing
- Angled Beveled Washer - 30-degree angled beveled washers are compatible for 1/4” threaded terminal stud end and 1/8” to 3/16” cable, can be used for termination on post or offset fixing hole on stair railing with 25, 30 and 35 degrees

Specifications:

- Material: 316 Stainless Steel
- Fit For: 1/8" to 3/16" Cable Railing
- Total Net Weight: 2.38 Lb (1.08 kg)

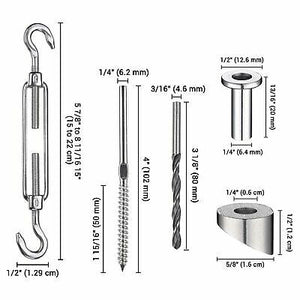

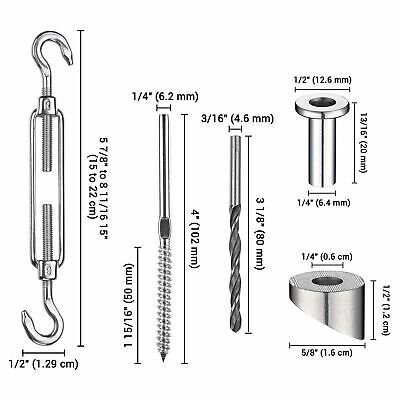

- Threaded Lag Screws:
- Overall Dimension(Dia.xH): 1/2” x 4” (0.62 x 10.2 cm)
- Screw Hole Outer Diameter: 3/16” (0.5 cm)
- Screw Hole Inner Diameter: 3/16” (0.45 cm)
- Thread Length: 1 15/16” (5 cm)
- Drill Bit Size(Dia.x L): 3/16” x 3 1/8” (0.46 x 8 cm)
- Beveled Washers:
- Overall Dimension(LxWxH): 5/8” x 5/8” x 1/2” (1.6 x 1.6 x 1.21 cm)
- Inner Diameter: 1/4” (0.61 cm)
- Outer Diameter: 5/8” (1.58 cm)
- Hook to Hook Turnbuckles:
- Overall Dimension(LxWxH): 8 11/16” x 1/2” x 3/8” (22 x 1.29 x 1 cm)
- Adjustable Length: 5 7/8” to 8 11/16” (15 to 22 cm)

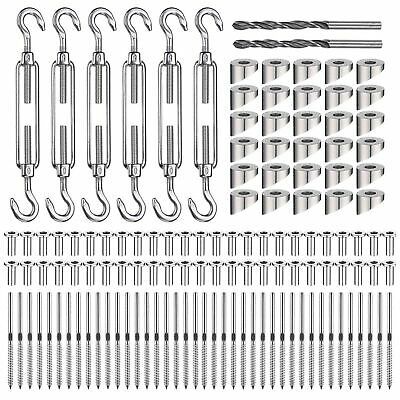

Package Contents:

- 20x Left Hand Threaded Lag Screws
- 20x Right Hand Threaded Lag Screws
- 30x Beveled Washers
- 6x Hook to Hook Turnbuckles
- 50x Stainless Steel Protective Sleeves
- 2x Drill Bits
