Yescom Electric Bike Conversion Kit 26" Front Wheel 48V 1500W W/ LCD Display

Features:

- Powerful Brushless Motor - Electric bicycle front wheel conversion kit features 48V 1500W brushless and gearless hub motor for efficient running; fit for any 26" bicycle frame with 5 5/16" front dropout spacing, easily convert your bicycle to electric bike and reach the maximum riding speed of 45 KM/H, suitable for regular bicycles used on commuting and short journey
- Dual Mode Controller - Motor works under Hall effect and non-Hall effect for extending life for electric bicycle; If the components break down, controller will switch into non-hall effect mode, the motor will still be working
- Pedal Assist System - Pedal assist system (PAS) for sensing your pedal cadence and allowing you to ride electric bike comfortably without pressing the throttle on the handlebars, can avoid uncomfortable wrist positions and easy to pedal with less fatigue, great for a long-distance journey

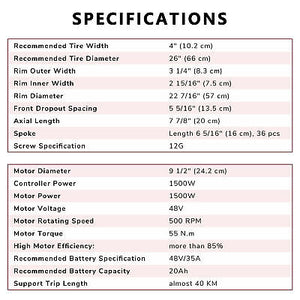

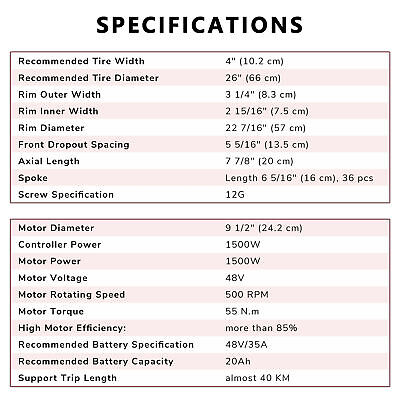

Specifications:

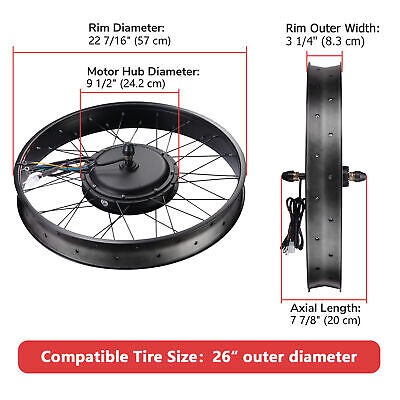

- Overall Dimension(Dia.xW): 22 3/4" x 3 1/4" (57.4 x 8.3 cm)
- Compatible Tire Size: 26" x 4" (65 x 10.2 cm)
- Rim Diameter: 22 7/16" (57 cm)
- Axial Length: 7 7/8" (20 cm)

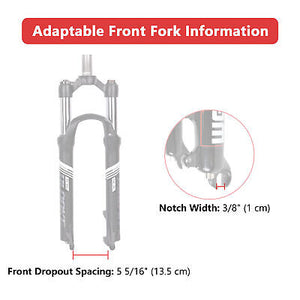

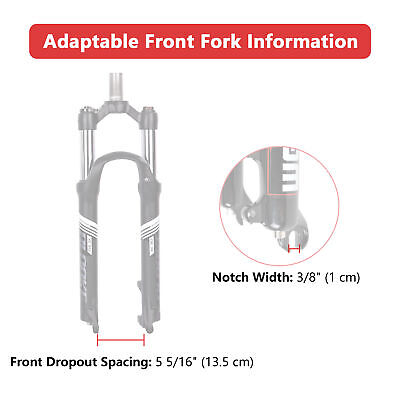

- Front Dropout Spacing: 5 5/16" (13.5 cm)
- Motor Diameter: 9 1/2" (24.2 cm)
- The Number of Spokes: 36
- Spokes Length: 6 5/16" (16.2 cm)
- Spoke Specification: 12G
- Controller Power: 1500W
- Motor Power: 1500W
- Motor Voltage: 48V
- Motor Rotating Speed: 500 RPM
- Motor Torque: 40.6 ft-lb (55 Nm)
- Recommended Battery Specification: 48V/35A
- Recommended Battery Capacity: 20Ah
- Suitable Brake Type: Disc Brake / V-Brake
- Weight Capacity: 330 Lbs (150 kg)
- Climbing Angle: 20 Degrees
- Top Speed: 45 KM/H
- Net Weight: 23.4 Lbs (10.6 kg)

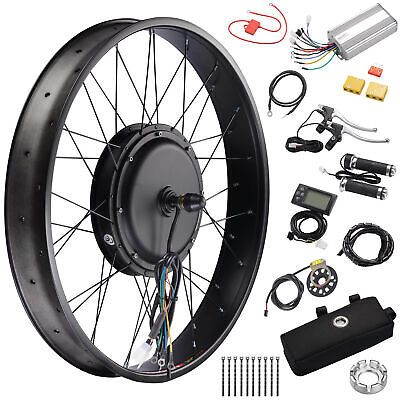

Package Content:

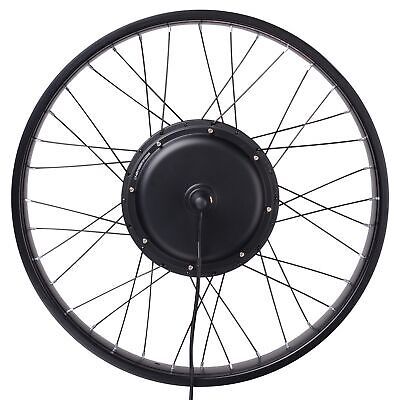

- 1x Front Wheel with Brushless Hub Motor (Tire is not included)
- 1x Dual Mode Motor Controller
- 2x Brake Levers
- 2x Handle Grips
- 1x Twist Throttle
- 1x Controller Bag
- 1x Winding Pipe
- 10x Cable Ties
- 1x PAS Sensor
- 1x LCD Meter
- 2x Wire Connectors
- 1x Battery Connection Cable
- 1x Fuse
- 1x Manual
- 1x Spoke Key


Notice:

- Battery and charger are not included, please prepare them before using.
- The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc.
- Please go to automobile repair shops with standard business license for modification.
- For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
