PRE SALE 3 HVLP Air Spray Gun Kit Paint Car Primer Basecoat 1.0 1.4 1.8 w/ Case

Features:

• Designed to provide equal atomization and partical size for all kinds of surface painting
• Light weight, ergonomic design and easy trigger pivot reduces operating fatigue
• Stainless steel nozzle and needle to allow use aqueous based paint for long time
• Precise 1.8mm,1.4mm & 1.0mm stainless steel needle and nozzle set
• 3 Knobs for full adjustment: fluid, pattern and air pressure controls
• Two 1000ml and one 100ml aluminum cups with lids
• A aluminum carrying case w/ locks for easily taking with
• Comes with a air regulator with gauge as free gift
• Ideals for basecoats, clearcoats, single stages and primers
• CE, GS certification

• 1.8mm set-up is ideal for the atomization of primers, sealers, thinned latex/oil base, and other medium to heavy viscosity coatings.
• This 1.4mm set-up for spraying basecoats, clearcoats, single stage and other light to medium viscosity coatings.
• 1.0mm spray gun used for tight areas, small jobs and touch up

Specifications:

• Air Inlet: 1/4"
• Type of Feed: Gravity
• Operating Pressure: 87 - 116 psi
• Full Size Spray Guns:
  • Nozzle Size: 1.8 mm,1.4 mm
  • Recommended Air Pressure: 0-43 psi (0-2.9 bar)
  • Max. Pressure of Air: 43 psi (2.9 bar)
  • Paint Capacity: 1000 ml
  • Average Air Consumption: 5-10 cfm
  • Pattern Width: 6.3"-9.4" (160-240mm)
• Mini Size Spray Gun:
  • Nozzle Size: 1.0 mm
  • Recommended Air Pressure: 0-30 psi (0-2 bar)
  • Max. Pressure of Air: 30 psi (2 bar)
  • Paint Capacity: 100 ml
  • Average Air Consumption: 1-4 cfm
  • Pattern Width: 3.1"-3.9" (80-100 mm)

Fine Adjustment:

The desired pattern and fine atomization can be easily obtained by regulating the Pattern Adjusting Knob and Fluid Adjusting Knob.

• Pattern Adjustment: Turn the Pattern Adjusting Knob to the right until tight will make spray pattern round, or turn left make spray pattern ellipse.
• Fluid Adjustment: Turn the Fluid Adjusting Knob clockwise will decrease the volume of fluid output and counter-clockwise will increase fluid output.

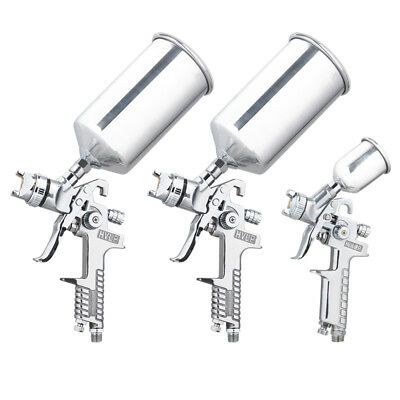

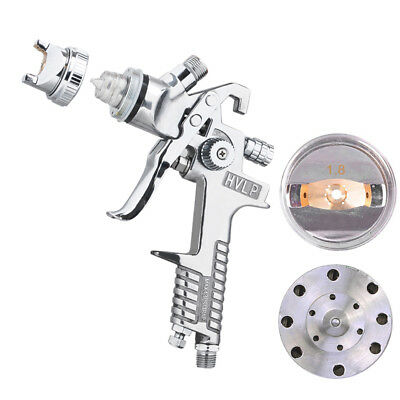

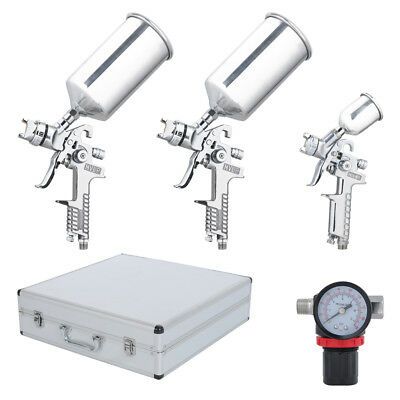

• 1x 1.8mm HVLP primer spray gun

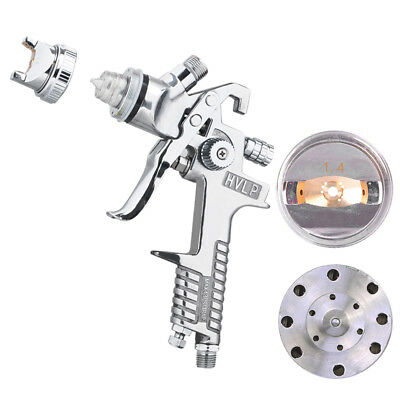

• 1x 1.4mm HVLP topcoat spray gun

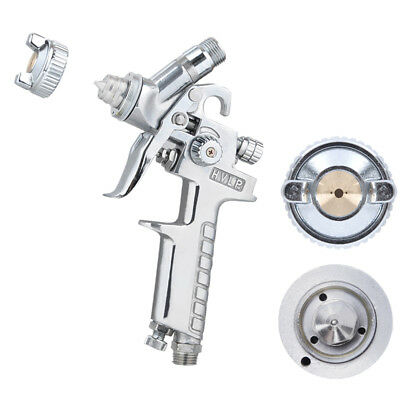

• 1x 1.0mm HVLP touch-up spray gun
• 2x 1000ml aluminum cups w/ lids
• 1x 100ml aluminum cup w/ lid
• 1x Locking air pressure regulator w/ gauge
• 1x Aluminum carrying box
• 1x Instruction manual
