3-Jaw Hydraulic Gear Puller Set Wheel Bearing Pulling Separator 5 Ton

Features:

- Great Compatibility - 3-Jaw hydraulic gear puller set features 5 tons or 10 tons or 15 tons max capacity, max reach for fully meeting your different requirements on pulling truck hub, brake drums, sprockets, rotors, car axles, wheel bearing, shaft and pulley disassembly

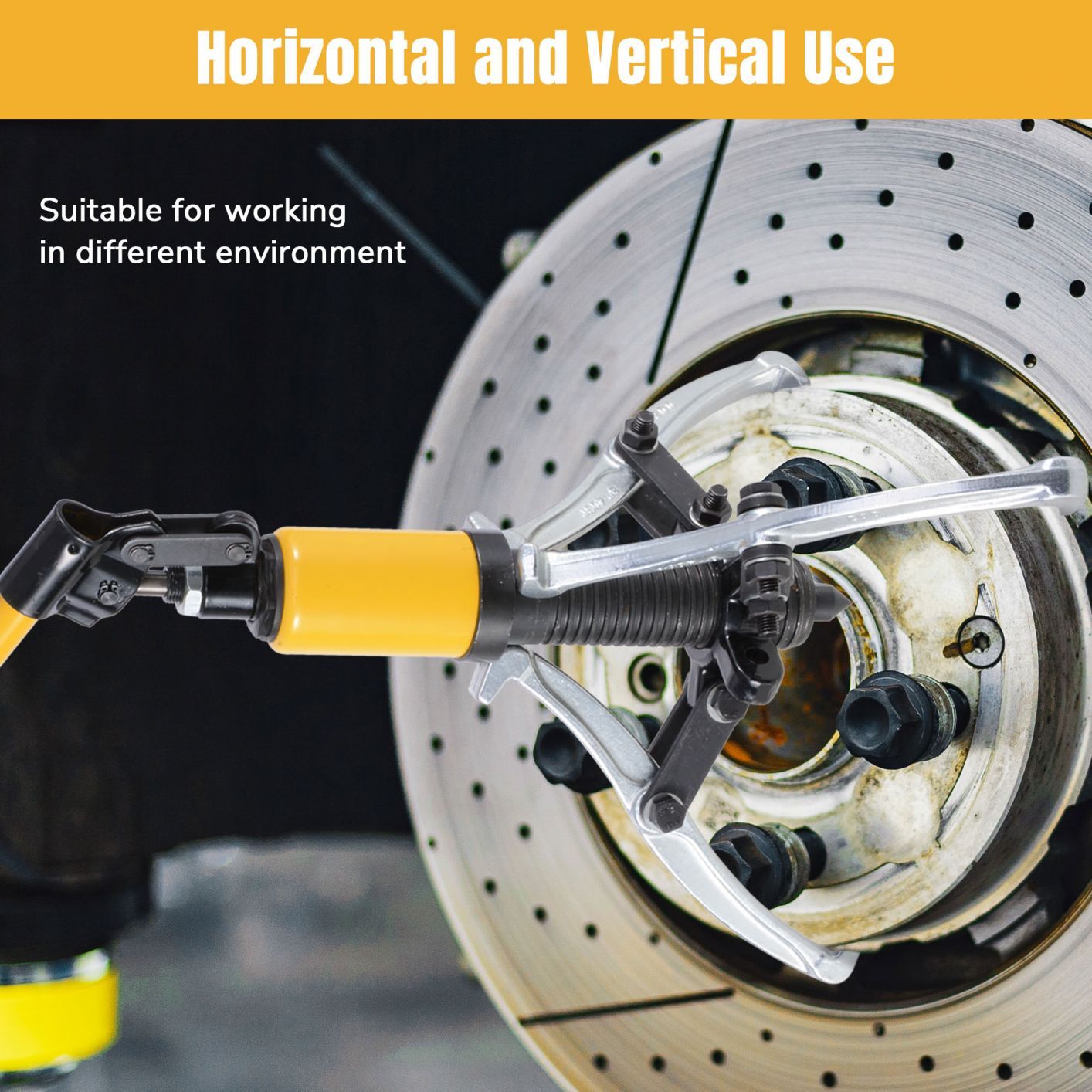

- 3 In 1 Design - Puller set integrates pump, oil tube and drawing machine for providing comprehensive functions on mechanical installation and repair, can be used horizontally and vertically, not restricted by work site environment

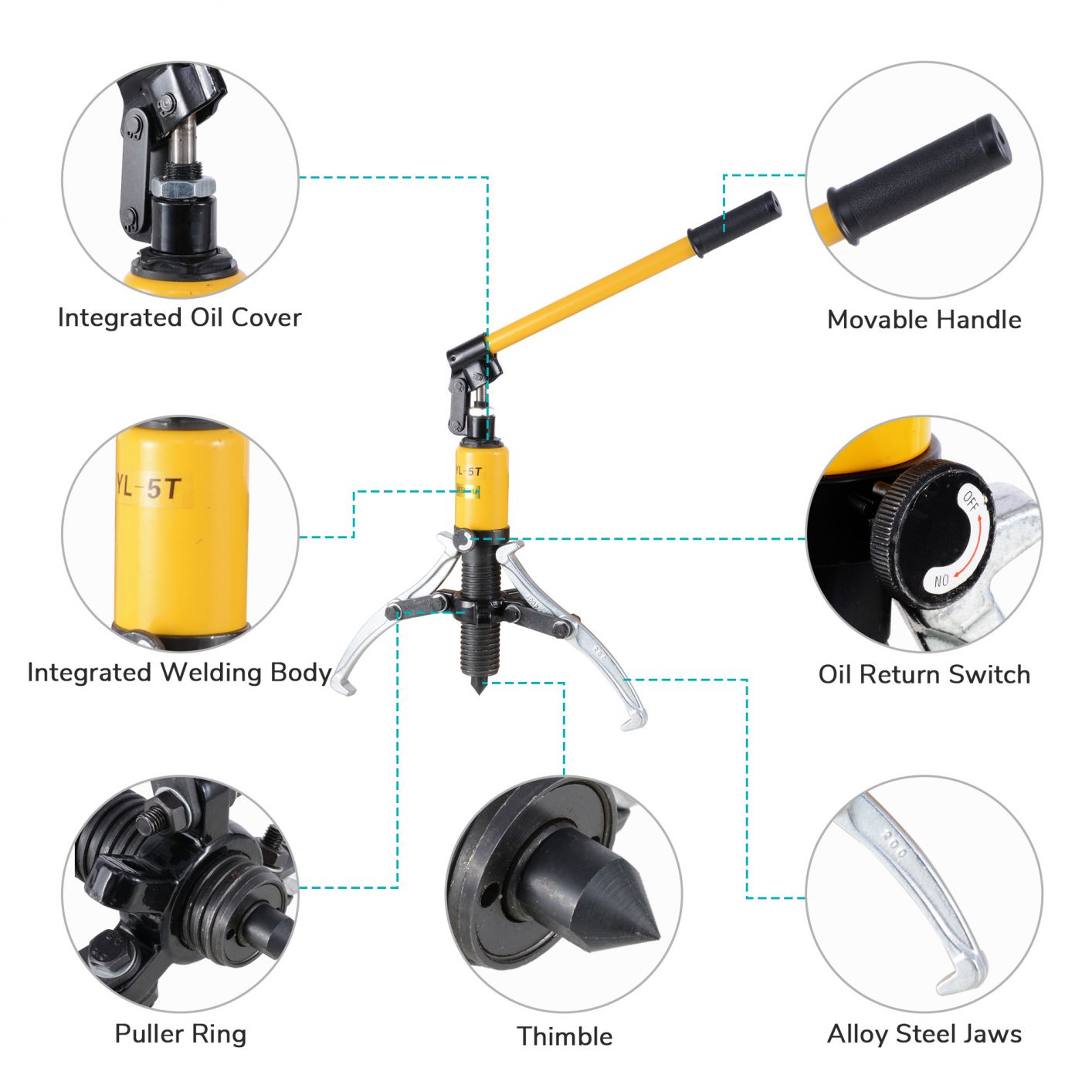

- Flexible & Easy Operation - 3 jaws can be adjusted from high to low point and pump head can be rotated 360 degrees for flexibility; 2-way yoke allows 2 or 3 leg pullers for easy interchanging; rotate the oil return switch and pull up the handle to pressurize or release pressure; safety flooding valve to avoid overloading

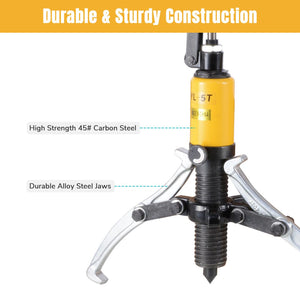

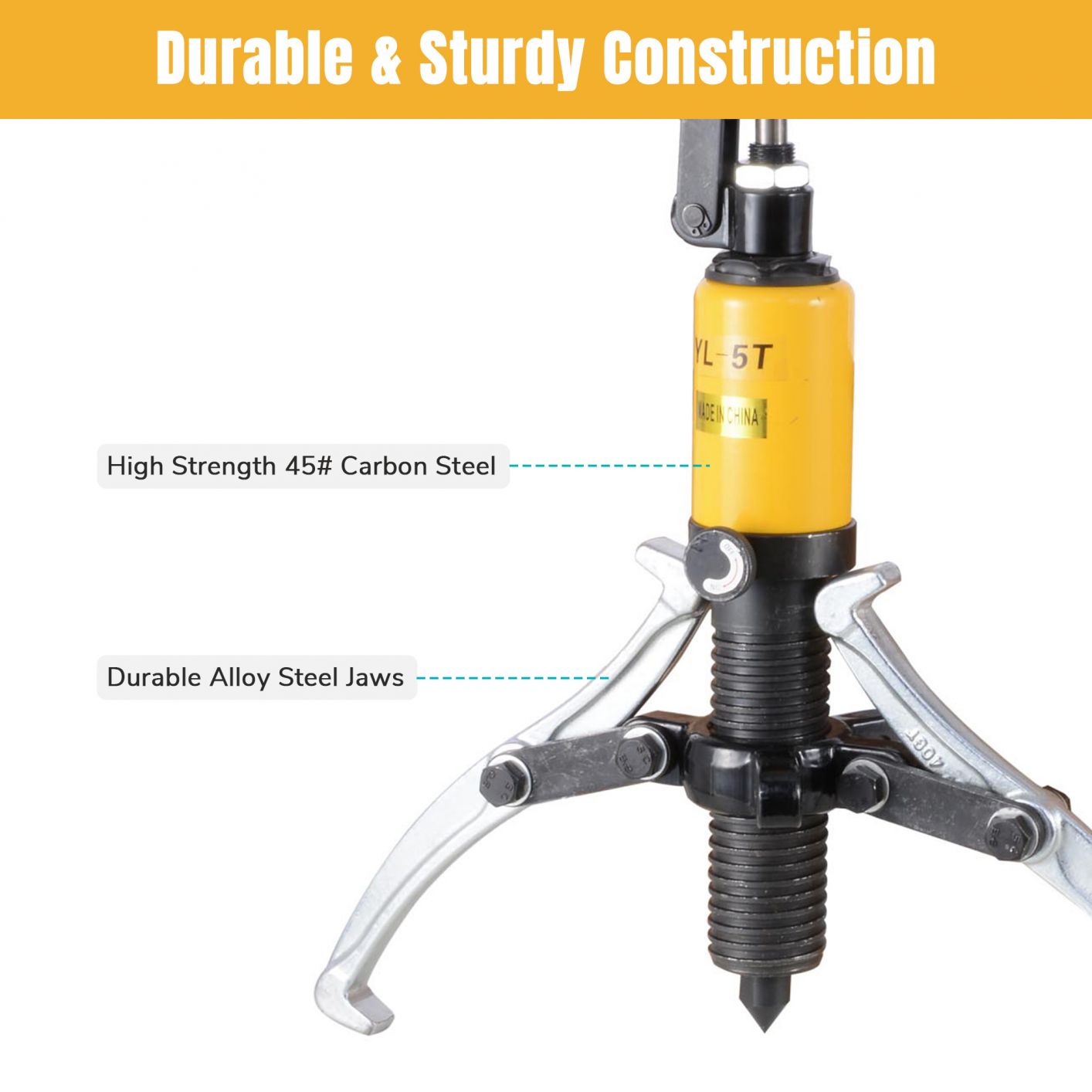

- Durable Steel Construction - Hydraulic pump is made of high strength 45# carbon steel and processed by integrated welding for preventing oil leakage and providing sturdiness, rust resistance and corrosion resistance for frequent use; durable alloy steel jaws for ensuring stability
- Portable & Wide Application - Pump and all accessories can be packed in a mould carrying case well, easy for you to transport or storage; widely used for railway vehicle maintenance, car mechanical factories, mining equipment maintenance, repair workshops, etc

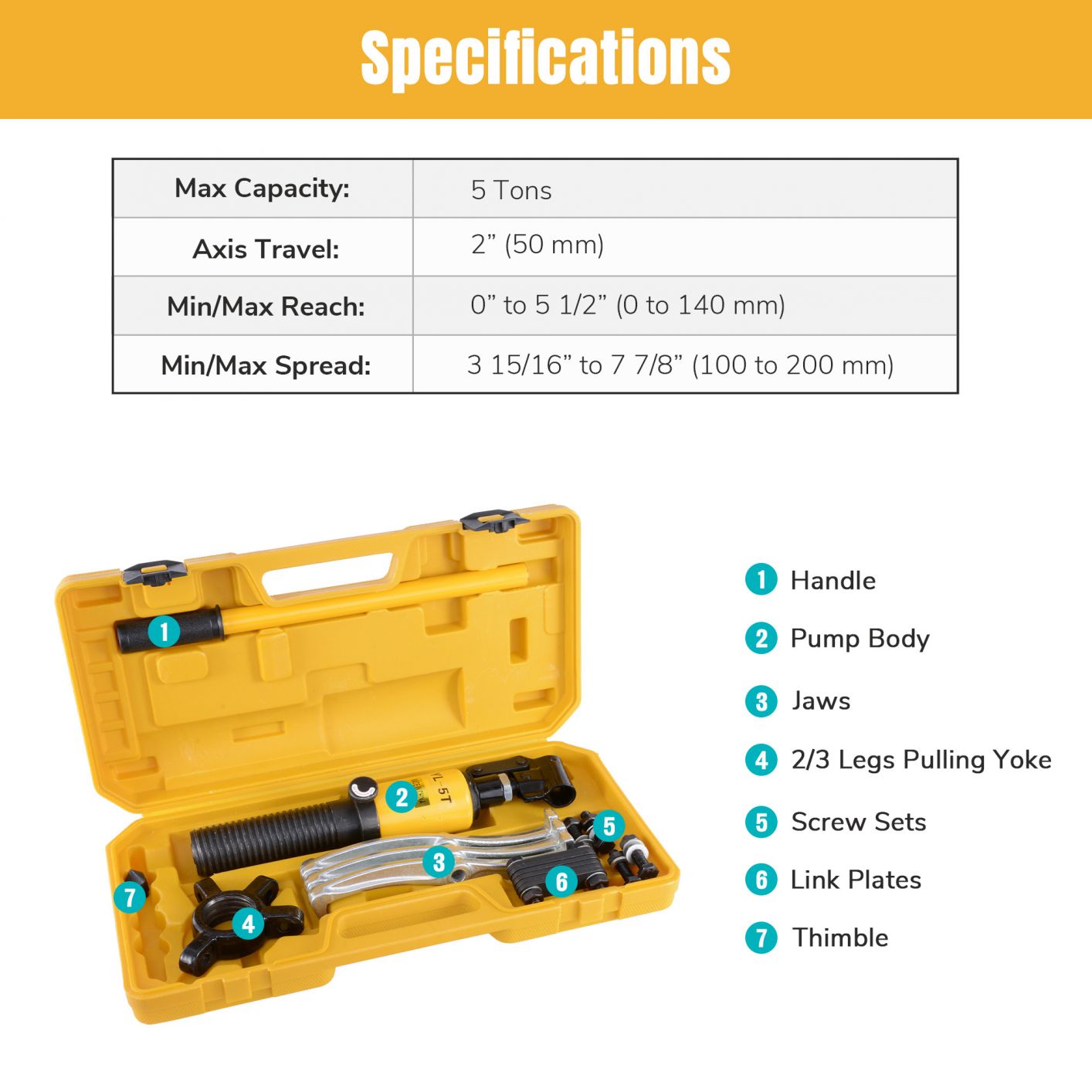

Specifications:

- Material: 45# Steel
- Axis Travel: 2” (50 mm)

5T:
- Overall Dimension(LxWxH): 22 13/16” x 14 3/16” x 16 15/16” (58 x 36 x 43 cm)
- Max Capacity: 5 Tons
- Min/Max Reach: 0” to 5 1/2” (0 to 140 mm)
- Min/Max Spread: 3 15/16” to 7 7/8” (100 to 200 mm)
- Net Weight: 11 Lbs (5 kg)

10T:
- Overall Dimension(LxWxH): 16 9/16” x 8 11/16” x 22 7/16” (42 x 22 x 57 cm)
- Max Capacity: 10 Tons
- Min/Max Reach: 0” to 6 5/16” (0 to 160 mm)
- Min/Max Spread: 3 15/16” to 9 13/16” (100 to 250 mm)
- Net Weight: 22 Lbs (10 kg)

15T:
- Overall Dimension(LxWxH): 16 9/16” x 18 1/2” x 20 7/8” (42 x 47 x 53 cm)
- Max Capacity: 15 Tons
- Min/Max Reach: 0” to 7 1/16” (0 to 180 mm)
- Min/Max Spread: 3 15/16” to 11 13/16” (100 to 300 mm)
- Net Weight: 22 Lbs (10 kg)

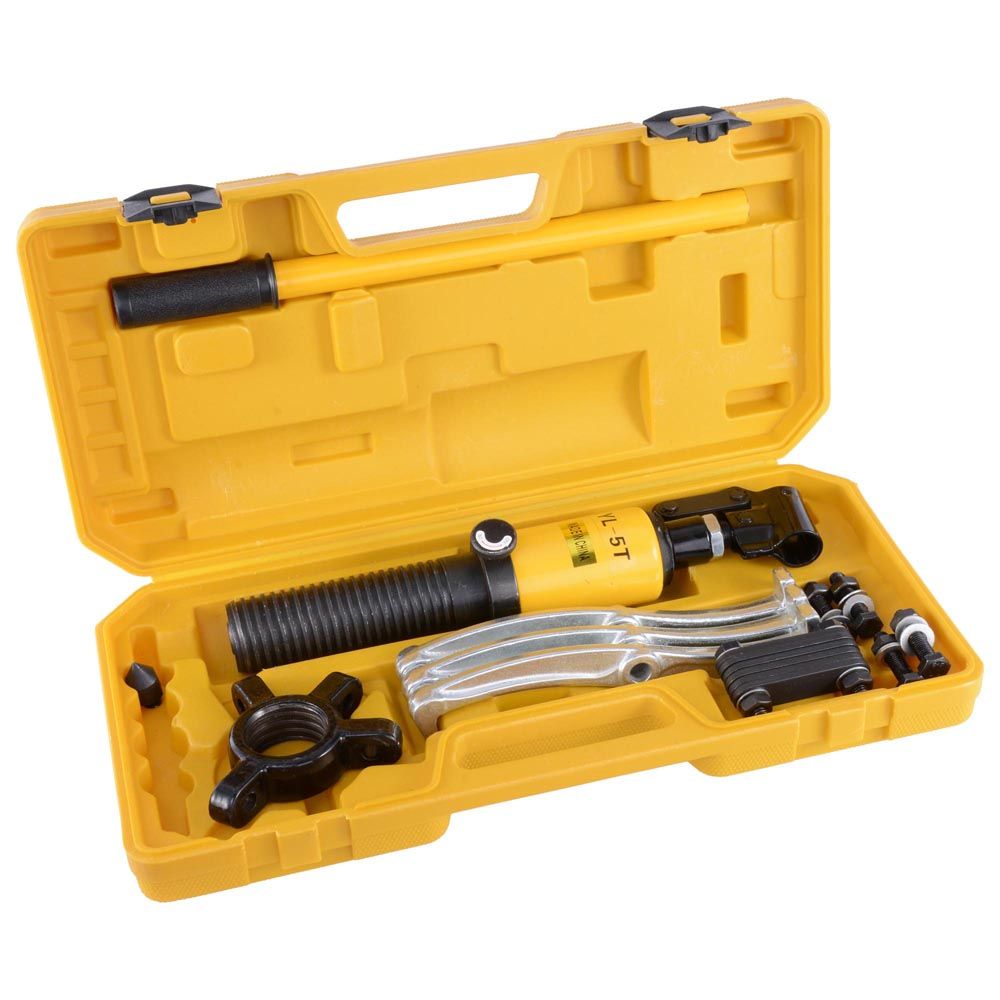

Package Contents:

- 1x Hydraulic Pump
- 1x Handle
- 1x 2/3 Leg Pulling Yoke
- 3x Puller Legs
- 6x Screw Sets
- 6x Link Plates
- 1x Thimble
- 1x Carrying Case
- 1x Manual
