3-Jaw Hydraulic Gear Puller Set 5 Ton Wheel Bearing Pulling Separator w/Case

Features:

- Great Compatibility - 3-Jaw hydraulic gear puller set features 5 tons max capacity, 2” (50mm) axis travel, 7 7/8” (200mm) max spread and 5 1/2” (140mm) max reach for fully meeting your different requirements on pulling truck hub, brake drums, sprockets, rotors, car axles, wheel bearing, shaft and pulley disassembly

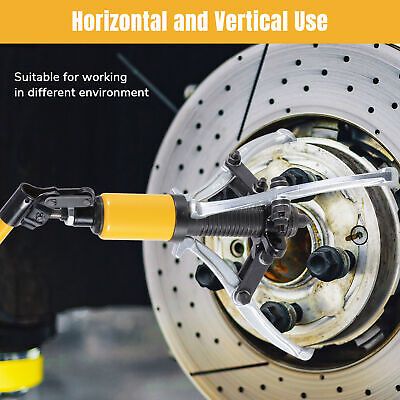

- 3 In 1 Design - Puller set integrates pump, oil tube and drawing machine for providing comprehensive functions on mechanical installation and repair, can be used horizontally and vertically, not restricted by work site environment

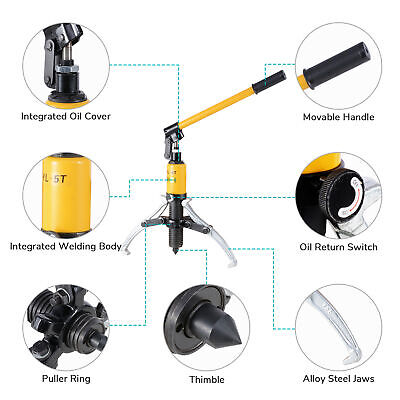

- Flexible & Easy Operation - 3 jaws can be adjusted from high to low point and pump head can be rotated 360 degrees for flexibility; 2-way yoke allows 2 or 3 leg pullers for easy interchanging; rotate the oil return switch and pull up the handle to pressurize or release pressure; safety flooding valve to avoid overloading

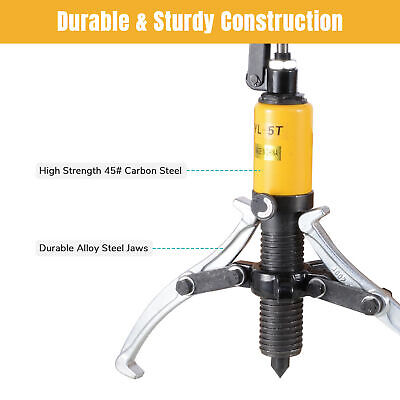

- Durable Steel Construction - Hydraulic pump is made of high strength 45# carbon steel and processed by integrated welding for preventing oil leakage and providing sturdiness, rust resistance and corrosion resistance for frequent use; durable alloy steel jaws for ensuring stability

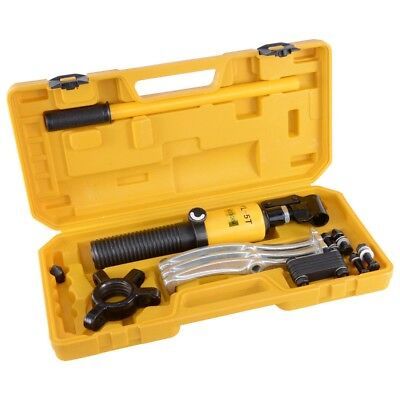

- Portable & Wide Application - Pump and all accessories can be packed in a mould carrying case well, easy for you to transport or storage; widely used for railway vehicle maintenance, car mechanical factories, mining equipment maintenance, repair workshops, etc

Specifications:

- Overall Dimension(LxWxH): 22 13/16” x 14 3/16” x 16 15/16” (58 x 36 x 43 cm)
- Material: 45# Steel
- Max Capacity: 5 Tons
- Axis Travel: 2” (50 mm)
- Min/Max Reach: 0” to 5 1/2” (0 to 140 mm)
- Min/Max Spread: 3 15/16” to 7 7/8” (100 to 200 mm)
- Net Weight: 11 Lbs (5 kg)

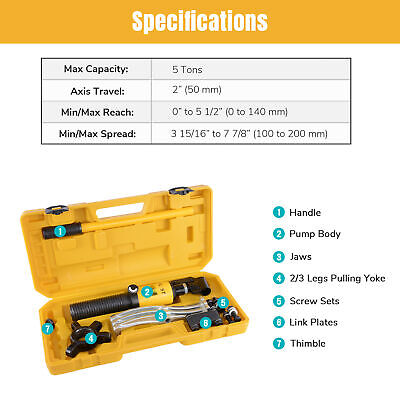

Package Contents:

- 1x Hydraulic Pump
- 1x Handle
- 1x 2/3 Leg Pulling Yoke
- 3x Puller Legs
- 6x Screw Sets
- 6x Link Plates
- 1x Thimble
- 1x Carrying Case
- 1x Manual
