Car Backup Camera Rear View System + 7" TFT LCD Monitor Wireless Remote Controls

Features:

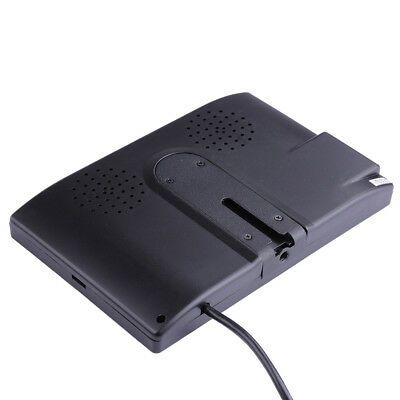

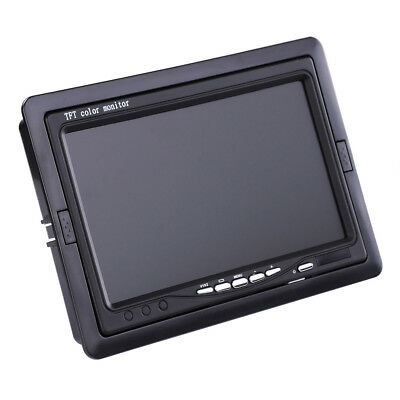

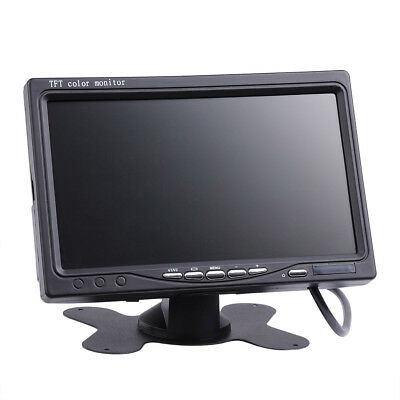

• TFT LCD Monitor Features: 7inch TFT monitor
• Wide screen, high definition, full color
• Fully wireless remote controls
• 120 degree wide angle viewing helps avoid accidents and injuries
• Easy to adjust the unit angle and mount
• Compatible with both PAL and NTSC video system

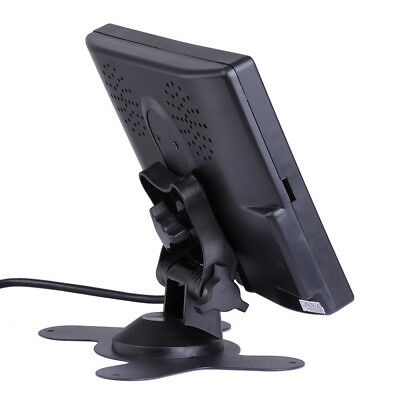

• Easy to install with 2 ways available: standing and mounting
• 2 RCA Video inputs (V1 for DVD player/V2 for Backup camera) and automatically throw-over
• Available for car VCD, DVD, etc. and especially designed to connect to your car camera

Specifications:

• Screen Size: 7inch TFT monitor upright
• Display Mode: 16:9/4:3
• Video System: PAL / NTSC dual system automatically switches
• Pixel: 800 x 480
• Operating voltage: 12V-24V wide voltage
• Rated power: 6W
• 2AV input reversing automatic display
• Contrast: 350:1
• Working temperature: -20 - +60
• Storage temperature: -40 - +85


• Sensor: PC1030 (available with reference line)
• Viewing Angle: 120 degree wide-angle 420TV
• Minimum illumination: 0.3LUX, high sense of low light
• SNR: more than 48dB
• Video Output: RCA interfaces, 1.0Vp-p, 75ohm
• Working voltage: DC12V (+ / -10%) (Optional Custom24V)
• Housing material: aluminum-magnesium alloy, shock, abrasion resistance, high temperature
• Waterproof grade: IP68 waterproof design, the strict flooding test


• Transmitting and receiving frequency: 2370MHZ
• Output power: 100MW
• Working Voltage: DC 12V
• Video input: PAL / NTSC composite video signal
• Transmitting and receiving distance: 100M (open area without interference)
• Working temperature: -68℉ +176℉
• Video Output: PAL / NTSC composite video signal
• Receiver sensitivity:-85Dbm
• Entire Operating Current: DC 12V 200mA
• Video Output Interface: RCA Male Video

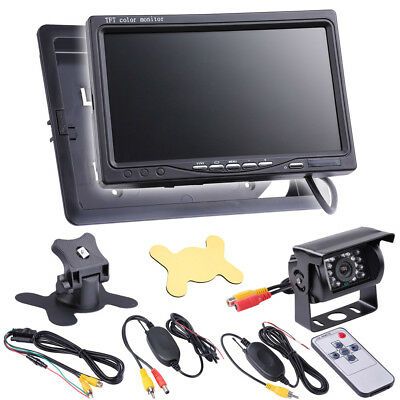

Package Content:

• 1x 7" TFT LCD Monitor
• 1x Holder
• 1x Frame
• 1x Remote Controller
• 1x Universal User Manual
• 1x Car Rear View Camera
• 1x 2.4G Transmitter
• 1x 2.4G Receiver

Notices: Due to the complex of the item, please find a professional to install.
