10 Ton Hydraulic Punch Press w/ 6 Piece Tool Kit Yellow

Throw out those old wrench-style punches and upgrade with this Brand New Complete 10-Ton Hydraulic Punch Driver Kit, even tough material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance,chemical industry, ship & machinery and many more!

High Quality:

• 6 Dies & Punches Interchangeable to Meet Different Needs

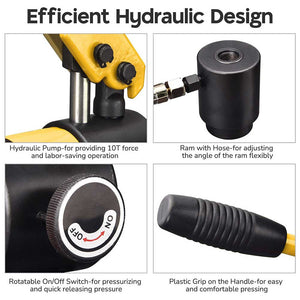

• Efficient Hydraulic Design
  • Hydraulic mechanism pump produces 10T strong pressure for providing high punching accuracy and fast punching speed on punching uniform holes, more labor-saving and faster
  • Pump with pressure hose for adjusting the angle of the ram flexibly

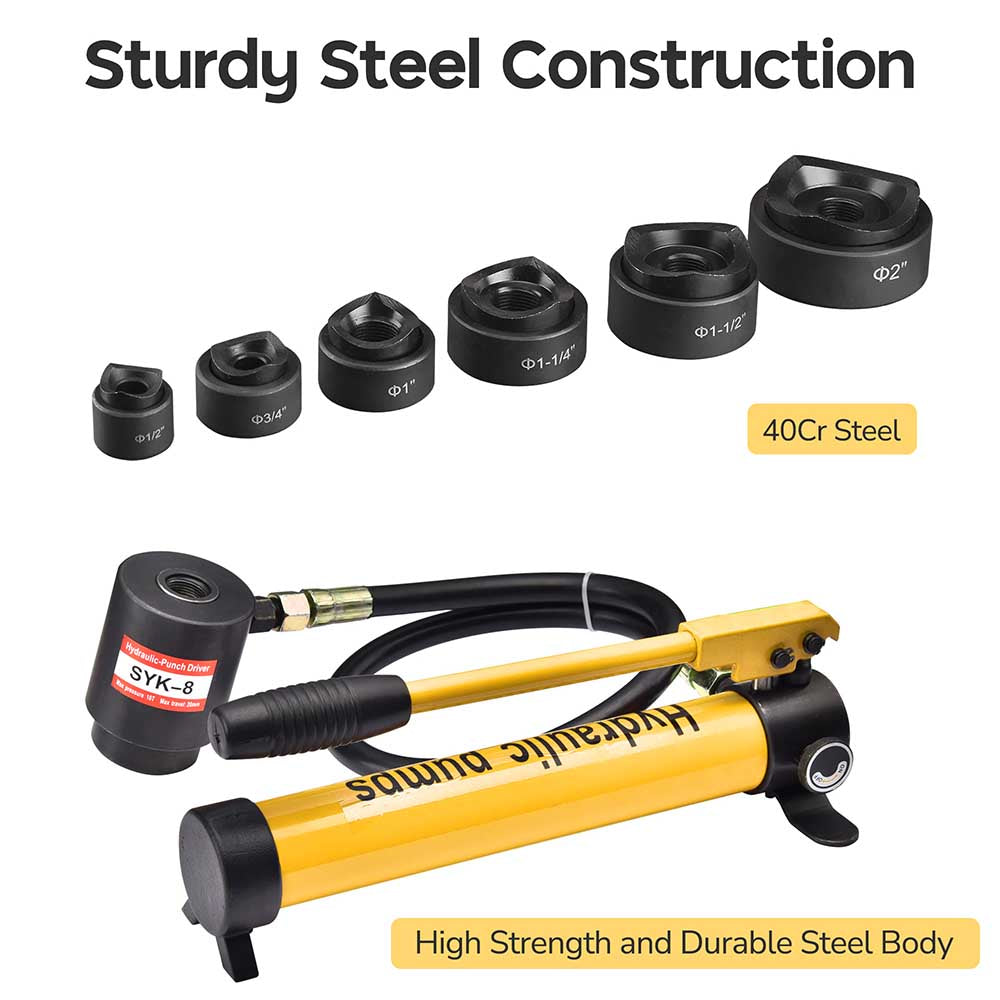

• 40Cr steel dies and steel pump body for ensuring high strength, sturdiness and durability, stable construction
• Rotatable "on/off " knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value
• Anti-skid plastic grip at the end of the handle for easy and comfortable pressing
• Sturdy metal case with handle and double metal locks for convenient and safe storage
• Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.

Product Details:

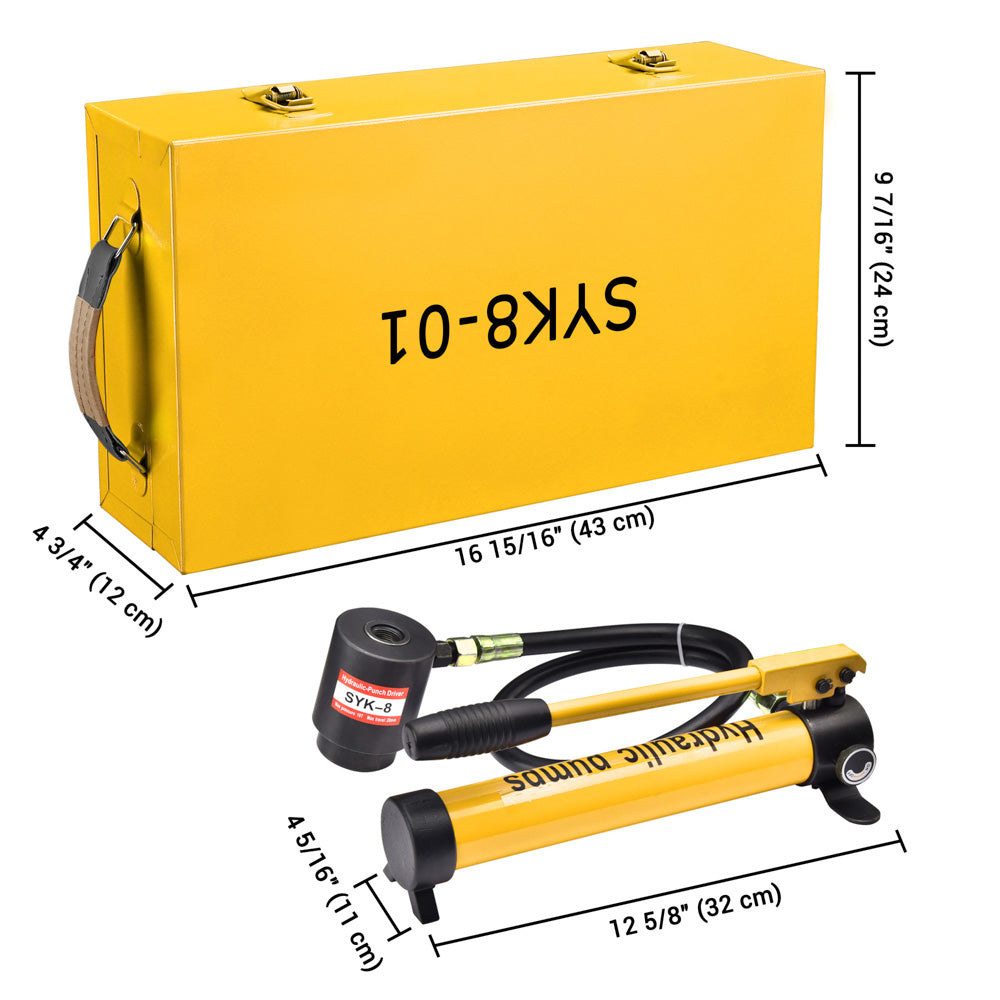

• Pump Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16"
• Case Dimension(LxWxH): 16 15/16" x 9 7/16" x 4 3/4"
• Max Pressure: 10 ton
• Max Thickness for Steel: 3.2 mm ( 11 gauge )
• Max Thickness for Stainless Steel: 2 mm ( 14 gauge )
• Ram with 31" High Pressure Hose
• Piston Shaft : 3.3"L x 0.7"Diam

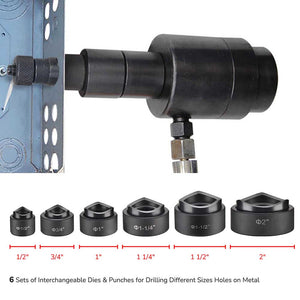

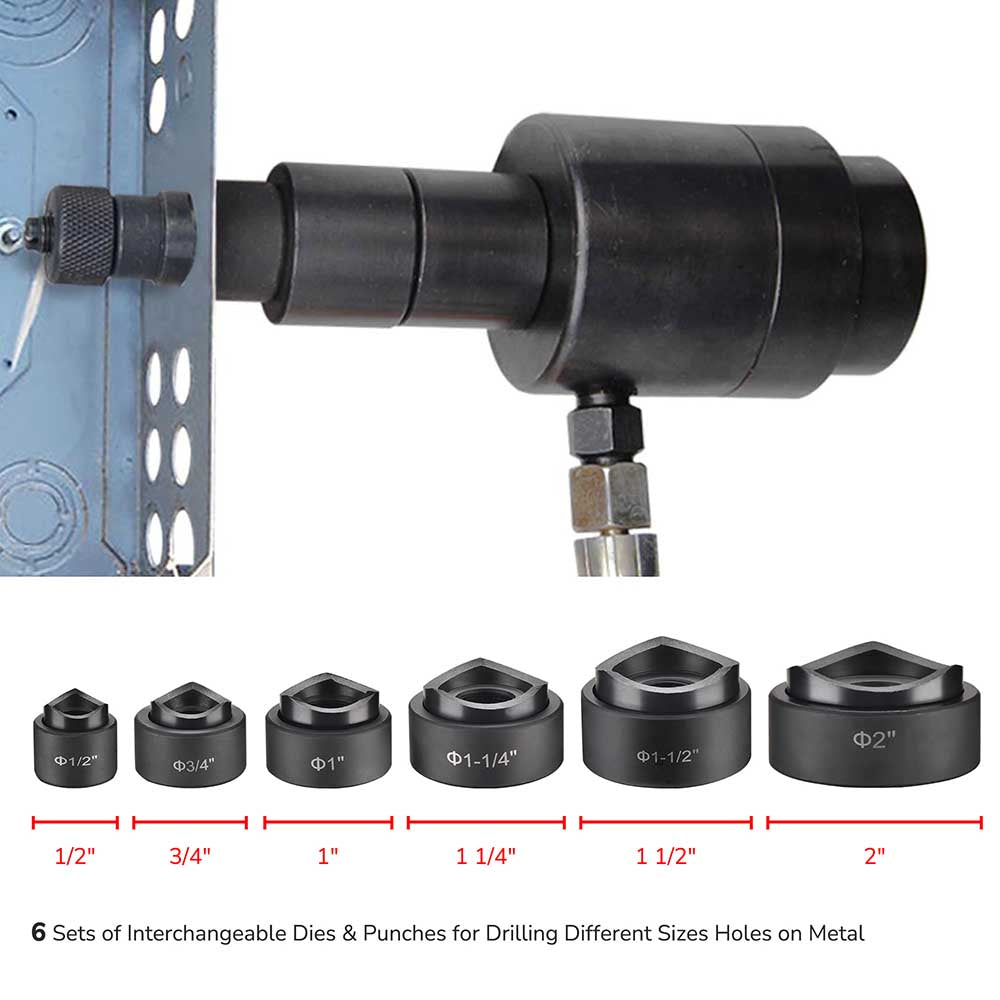

• 6 x Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
• Drilling Hole Size: 7/8" (22.5mm), 1 1/8" (28.3mm), 1 3/8" (34.6mm), 1 11/16" (43.2mm), 1 15/16" (49.6mm), 2 7/16" (61.5mm)
• 2 x Draw Studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam
• Net Weight: 23.1 Lbs (10.5 kg)

Corresponding Size:

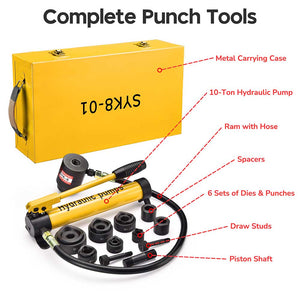

Also In The Box:

• 1 x 10-Ton Pump
• 1 x Ram with Hose
• 6 x Dies & Punches
• 2 x Spacers
• 1 x Piston Shaft
• 2 x Draw Studs
• 1 x Sturdy Metal Carrying Case
• 1 x Manual
